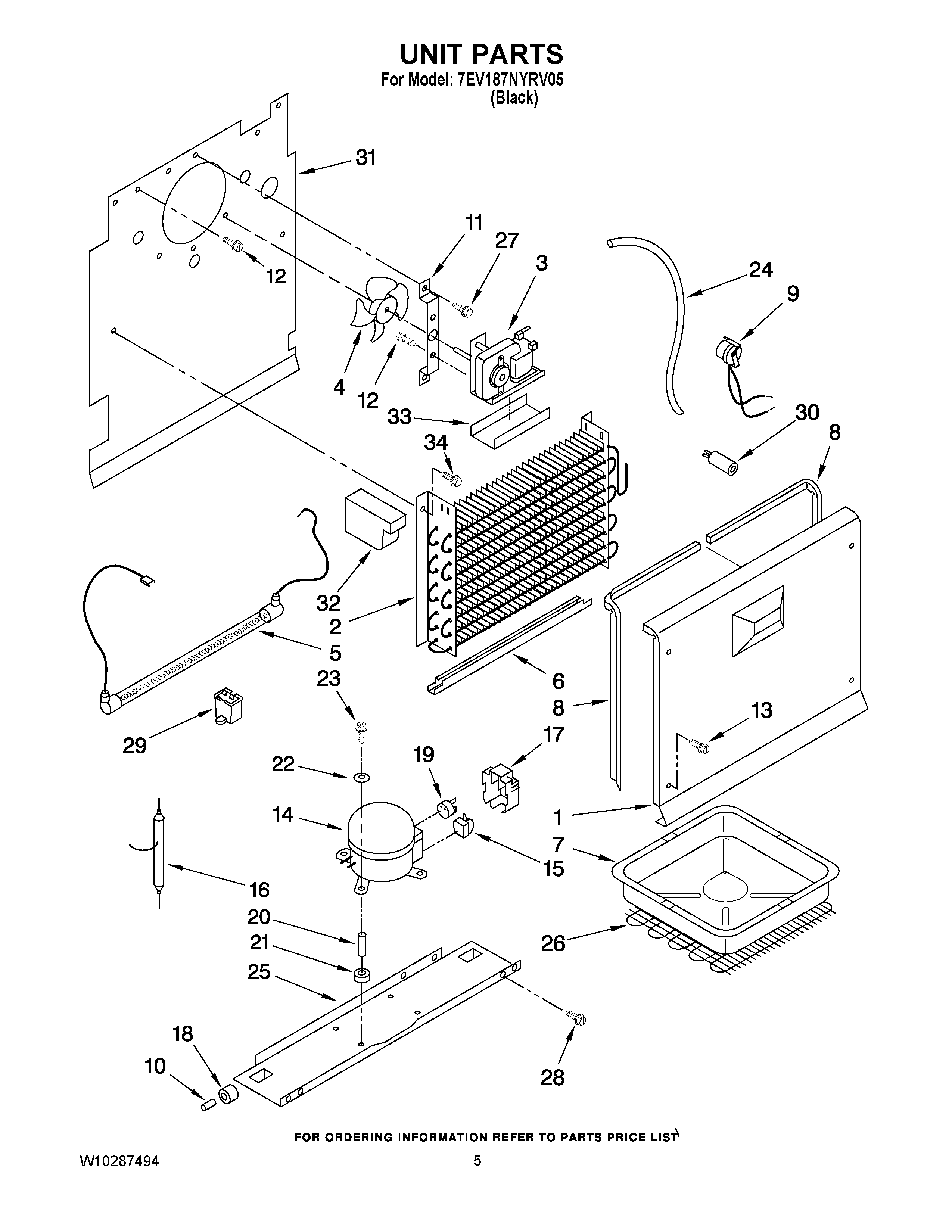

7EV187NYRV05 03 – UNIT PARTS

Products

Position	Product
NI	CABINET (NOT A SERVICEABLE PART)
1	Cover, Evaporator
2	WP4-81546 Whirlpool Refrigerator Evaporator
3	Fan Motor
4	BLADE-FAN
5	W11175809 Whirlpool Refrigerator Heater
6	Shield, Heater
7	WP4390675 Whirlpool Refrigerator Drip Pan
8	4390663 Whirlpool Refrigerator Gasket
8	4390664 Whirlpool Refrigerator Gasket
9	WP1-81801-001 Whirlpool Refrigerator Bimetallic Defrost
10	Axle
11	2-80028-101 Whirlpool Refrigerator Motor Bracket
12	60001022 Whirlpool Oven Screw
13	WP3-24004-109 Whirlpool Refrigerator Screw
14	W10309994 Whirlpool Refrigerator Compressor
15	Relay
16	W10843121 Whirlpool Refrigerator Tube
17	4356777 Whirlpool Term Cover
18	Roller, Front
19	2-34286-021 Whirlpool Refrigerator Overload Relay
20	4356846 Whirlpool Refrigerator Sleeve
21	Grommet, Mounting Compressor
22	Washer
23	8210220 Whirlpool Bolt
24	Exchanger, Heat
25	PAN, COMPRESSOR
26	W10451951 Whirlpool Refrigerator Condenser
27	3-24898-007 Whirlpool Refrigerator Vent Plug
28	SCREW
29	3-35956-013 Whirlpool Refrigerator Capacitor
30	Grommet
31	Plate, Evaporator Mount
32	1-80252-101 Whirlpool Refrigerator Evaporator Block
33	4357128 Whirlpool Refrigerator Motor Bracket
34	WP489491 Whirlpool Refrigerator Screw
