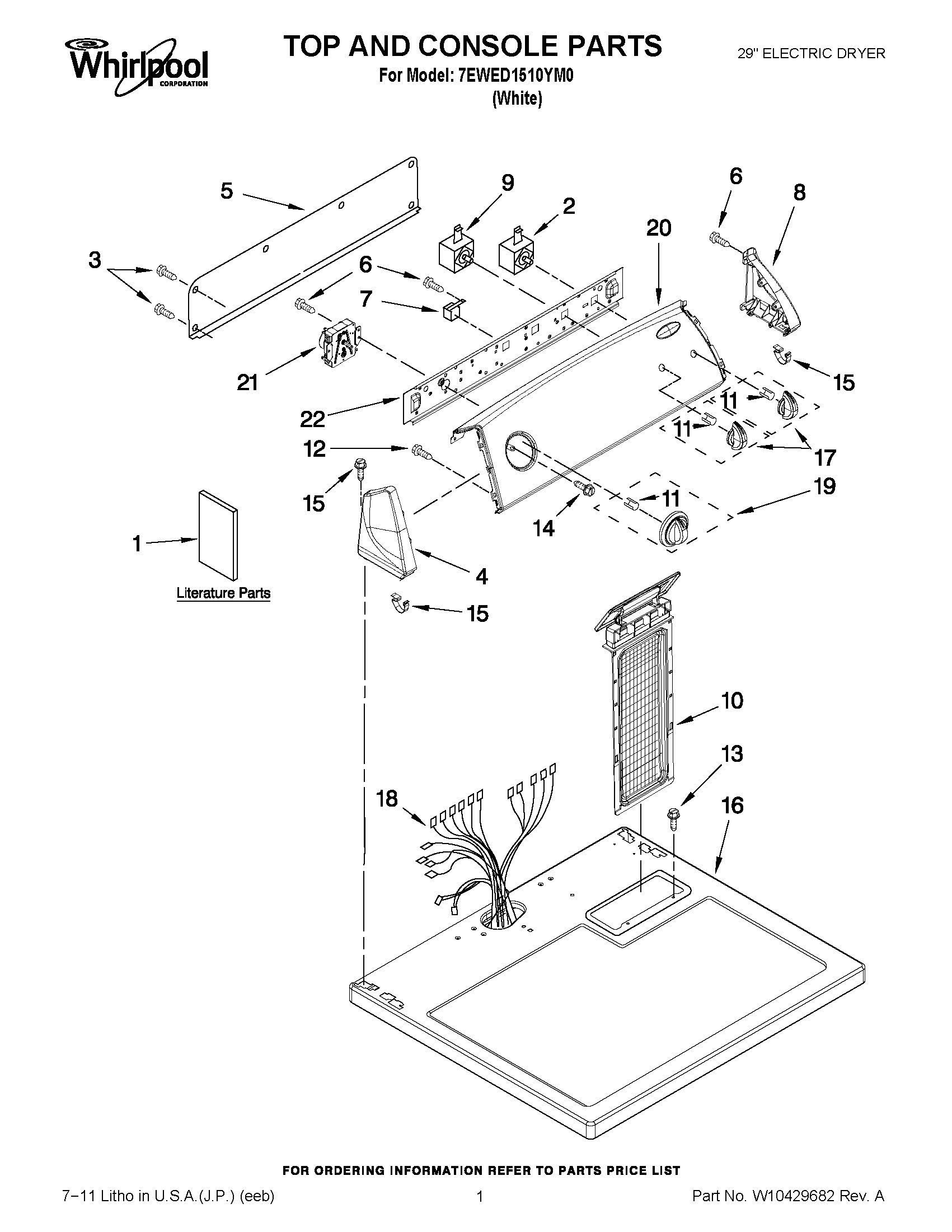

7EWED1510YM0 01 – TOP AND CONSOLE PARTS

Products

Position	Product
1	Wiring Diagram
1	USE & CARE GUIDE
1	INSTALLATION INSTRUCTIONS
2	WPW10117655 Whirlpool Dryer Start Switch
3	WP693995 Whirlpool Screw
4	WP8565957 Whirlpool Endcap Assembly
5	W10103406 Whirlpool Rear Panel
7	WP694419 Whirlpool Buzzer Adjuster
8	WP8565954 Whirlpool Endcap
9	WP3399639 Whirlpool Switch
10	WPW10717210 Whirlpool Dryer Lint Screen Filter
11	WP8536939 Whirlpool Spring Clip
12	WP90767 Whirlpool Screw
13	W11693756 Whirlpool Screw Assembly
14	W10850756 Whirlpool Screw
15	WP8312709 Whirlpool Endcap Clip
16	WP8563663 Whirlpool Top Assembly
17	Knob, Control (3)
18	W10740200 Whirlpool Wire Harness
19	TIMER KNOB ASSEMBLY
20	PANEL & BRACKET ASSEMBLY
21	WPW10185982 Whirlpool Timer
22	8566052 Whirlpool Bracket
