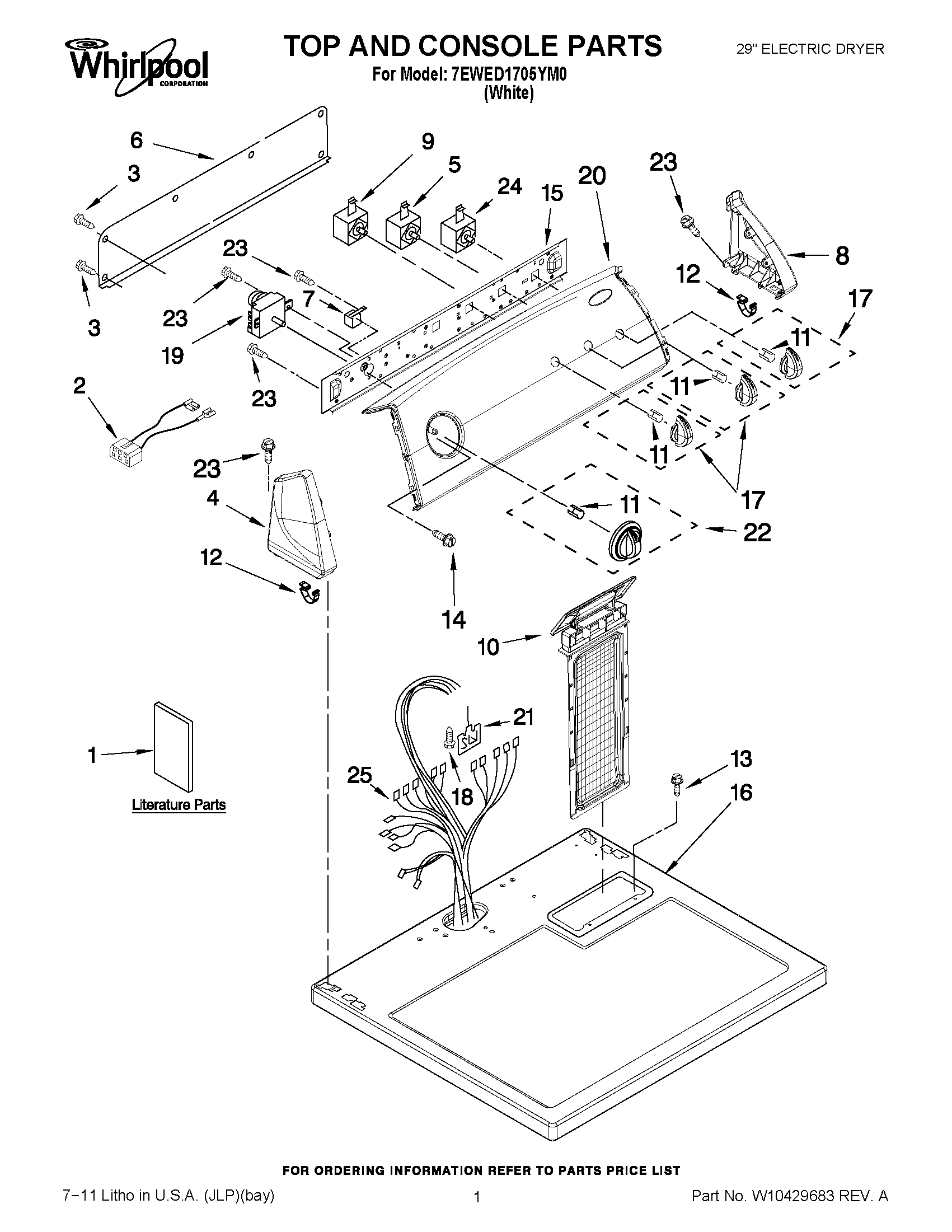

7EWED1705YM0 01 – TOP AND CONSOLE PARTS

7EWED1705YM0 01 – TOP AND CONSOLE PARTS

Written by

in

7EWED1705YM0 01 – TOP AND CONSOLE PARTS

Products

PositionProduct
1USE & CARE GUIDE
1INSTALLATION INSTRUCTIONS
1Wiring Diagram
2W10113080 Whirlpool Wire Harness
3WP693995 Whirlpool Screw
4WP8565957 Whirlpool Endcap Assembly
5WP3405156 Whirlpool Switch
6W10103406 Whirlpool Rear Panel
7WP694419 Whirlpool Buzzer Adjuster
8WP8565954 Whirlpool Endcap
98530169 Whirlpool Switch
10WPW10717210 Whirlpool Dryer Lint Screen Filter
11WP8536939 Whirlpool Spring Clip
12WP8312709 Whirlpool Endcap Clip
13W11693756 Whirlpool Screw Assembly
14W10915367 Whirlpool Screw Assembly
158566052 Whirlpool Bracket
16WP8563663 Whirlpool Top Assembly
17Knob, Control (3)
18SCREW
19TIMER
20ASSEMBLY, PANEL AND BRACKET
21WPW10476828-includeCORE Whirlpool WPW10476828 Refrigerator Electronic Control Board + Core
22TIMER KNOB ASSEMBLY
23WP90767 Whirlpool Screw
24WPW10117655 Whirlpool Dryer Start Switch
25W10071280 Whirlpool Wiring Harness
