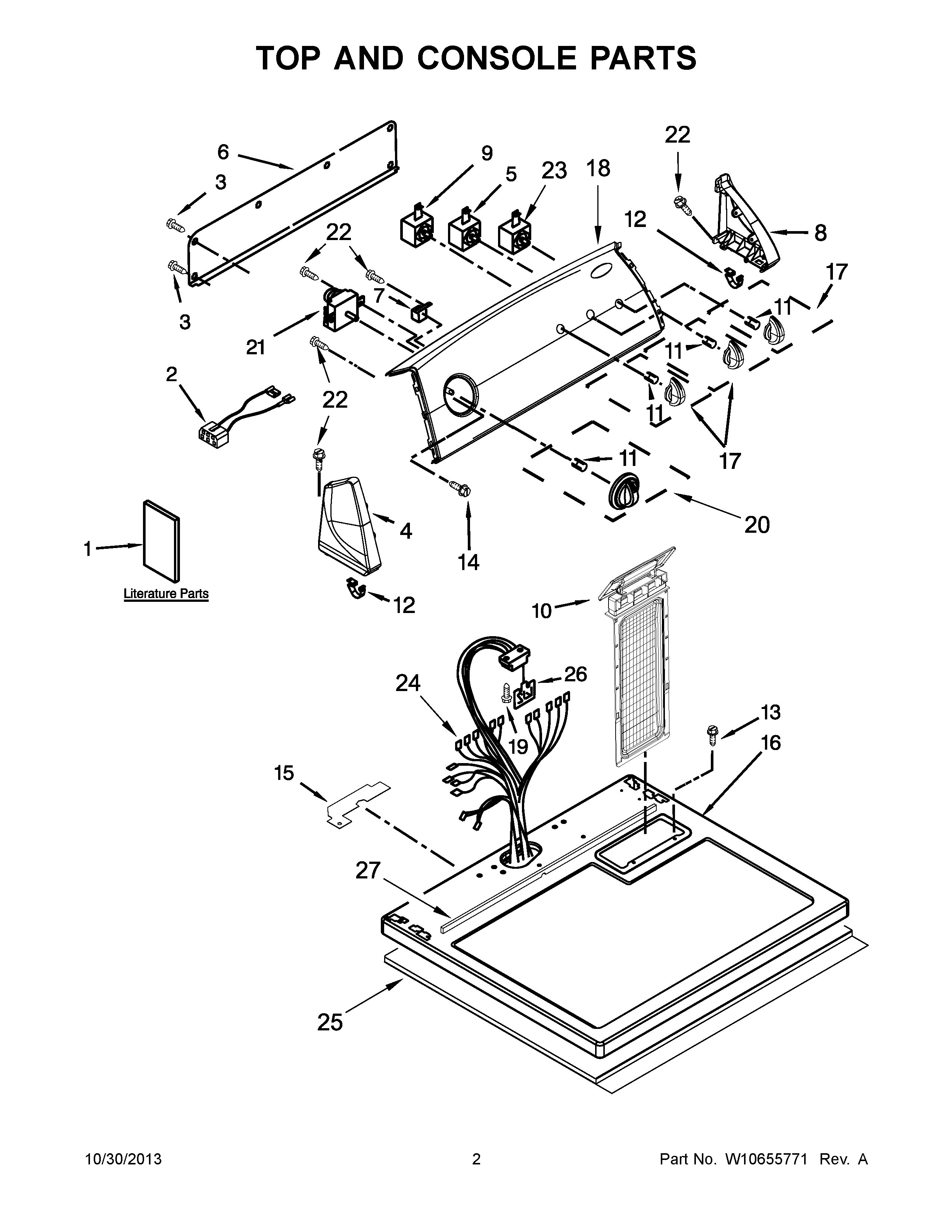

7EWED1730YW1 02 – TOP AND CONSOLE PARTS

7EWED1730YW1 02 – TOP AND CONSOLE PARTS

Written by

in

7EWED1730YW1 02 – TOP AND CONSOLE PARTS

Products

PositionProduct
1BWiring Diagram
1AUSE & CARE GUIDE
1INSTALLATION INSTRUCTIONS
2W10113080 Whirlpool Wire Harness
3WP693995 Whirlpool Screw
4WP8565957 Whirlpool Endcap Assembly
5WP3405156 Whirlpool Switch
6W10103406 Whirlpool Rear Panel
7WP694419 Whirlpool Buzzer Adjuster
8WP8565954 Whirlpool Endcap
9WP8578354 Whirlpool Temperature Switch
10WPW10717210 Whirlpool Dryer Lint Screen Filter
11WP8536939 Whirlpool Spring Clip
12WP8312709 Whirlpool Endcap Clip
14W11693756 Whirlpool Screw Assembly
15SEAL, HARNESS
16WP8563663 Whirlpool Top Assembly
17Knob, Control (3)
18WPW10410374 Whirlpool Control Panel
19SCREW
20TIMER KNOB ASSEMBLY
21TIMER
22WP90767 Whirlpool Screw
23WPW10117655 Whirlpool Dryer Start Switch
24W10071280 Whirlpool Wiring Harness
25W10123956 Whirlpool Sound Absorber
26WPW10476828-includeCORE Whirlpool WPW10476828 Refrigerator Electronic Control Board + Core
27W10316616 Whirlpool Seal
