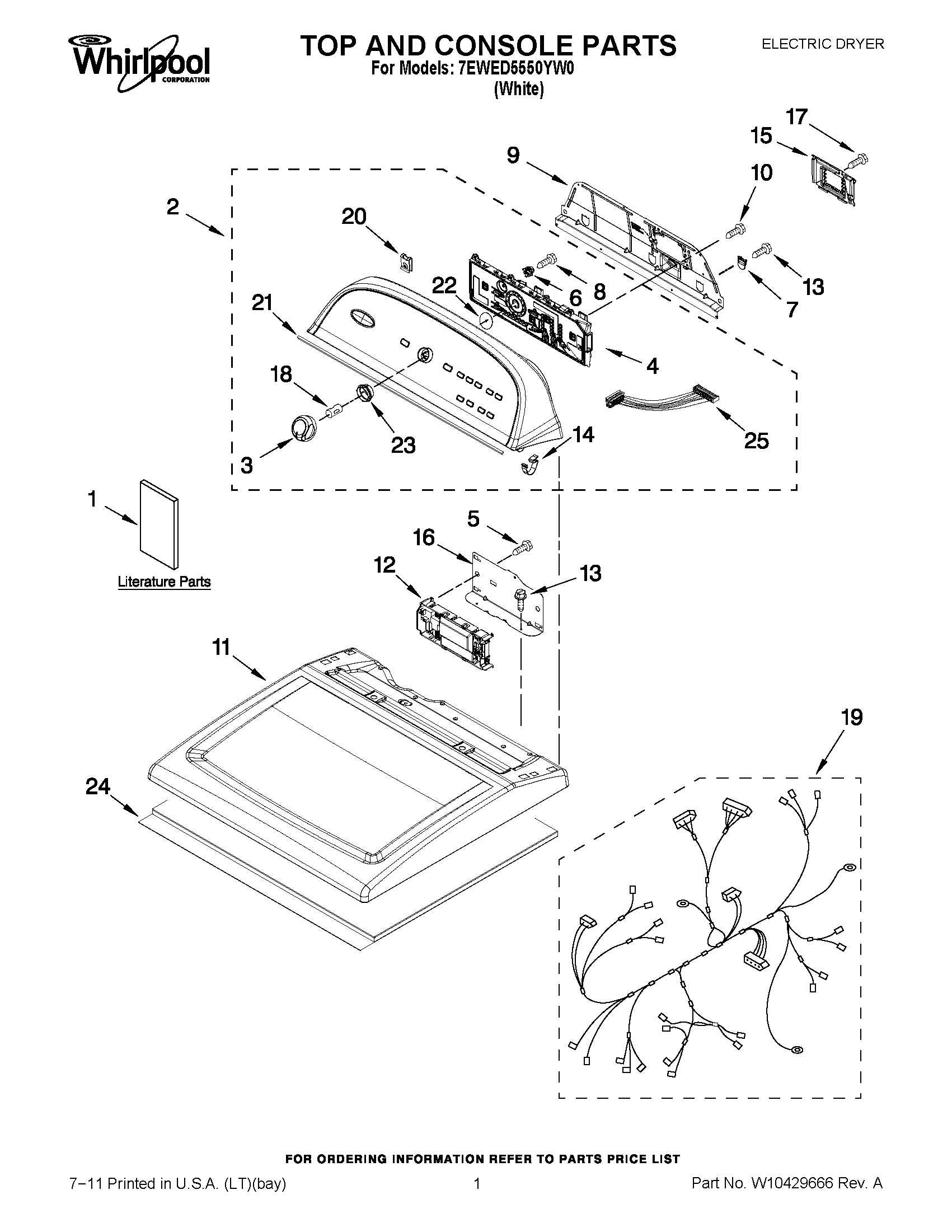

7EWED5550YW0 01 – TOP AND CONSOLE PARTS

Products

PositionProduct
1GUIDE, USE & CARE
1INSTALLATION INSTRUCTIONS
1TECH SHEET
2CONSOLE ASSEMBLY (COMPLETE)
3WPW10251392 Whirlpool Knob
4WPW10269624-includeCORE Whirlpool WPW10269624 Refrigerator Electronic Control Board + Core
6W10274524 Whirlpool Grommet
7W10279552 Whirlpool Plug
8W10853898 Whirlpool Screw
9W10096969 Whirlpool Rear Panel
10WP693995 Whirlpool Screw
11TOP (WHITE)
12WPW10317636-includeCORE Whirlpool WPW10317636 Refrigerator Electronic Control Board + Core
13WP488729 Whirlpool Refrigerator Door Screw
14WP8312709 Whirlpool Endcap Clip
15WPW10119283 Whirlpool Terminal Cover
16W10271580 Whirlpool Mount
17WP90767 Whirlpool Screw
18WP8536939 Whirlpool Spring Clip
19HARNESS, ELECTRIC
20W11213336 Whirlpool Nut
21W10280079 Whirlpool Seal
22W10323092 Whirlpool Seal
23W10325119 Whirlpool Spacer
24W10123956 Whirlpool Sound Absorber
25W10285495 Whirlpool Wire Harness
