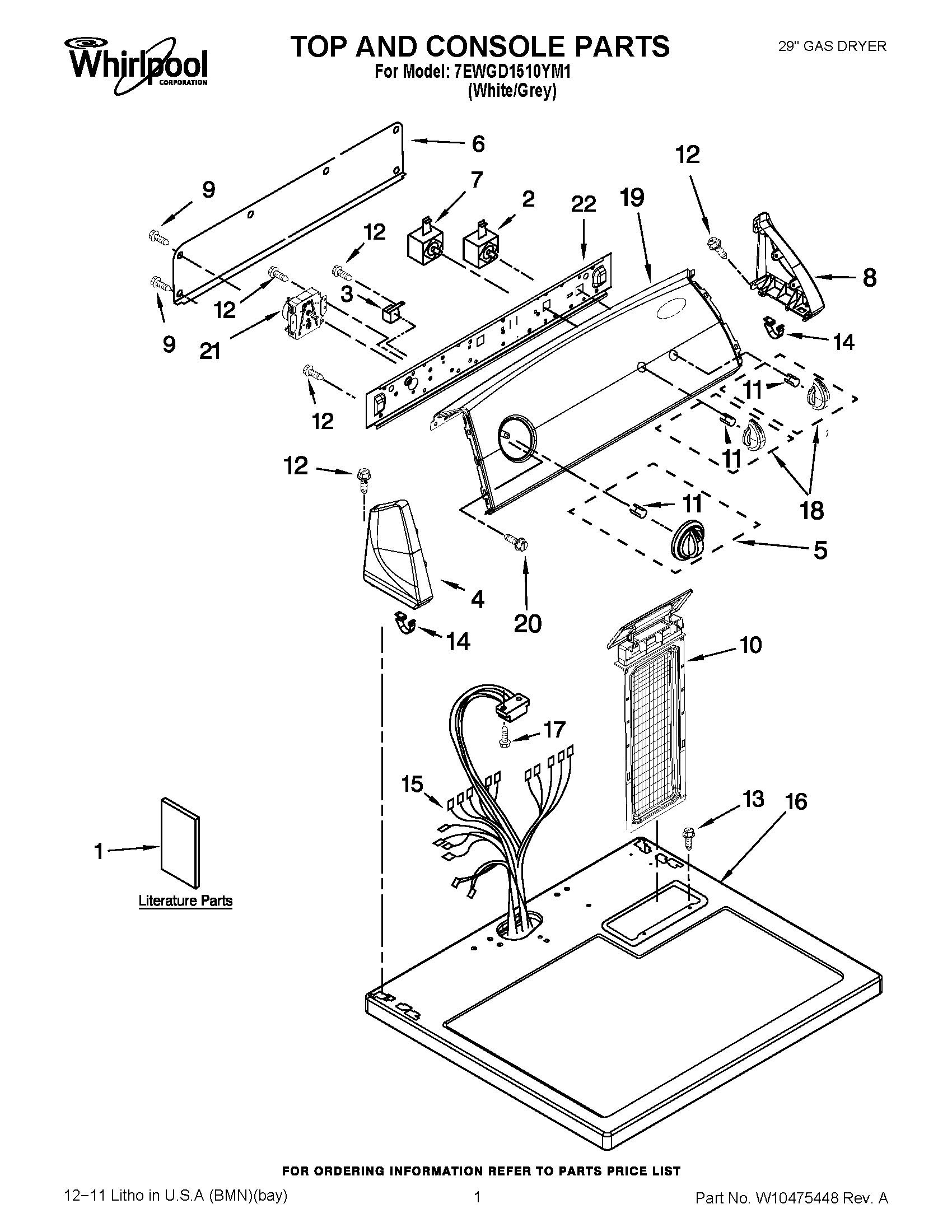

7EWGD1510YM1 01 – TOP AND CONSOLE PARTS

Products

Position	Product
1	USE & CARE GUIDE
1	INSTRUCTIONS, INSTALLATION
1	WIRING DIAGRAM
2	WPW10117655 Whirlpool Dryer Start Switch
3	WP694419 Whirlpool Buzzer Adjuster
4	WP8565957 Whirlpool Endcap Assembly
5	TIMER KNOB ASSEMBLY
6	W10103406 Whirlpool Rear Panel
7	WP3399639 Whirlpool Switch
8	WP8565954 Whirlpool Endcap
9	WP693995 Whirlpool Screw
10	WPW10717210 Whirlpool Dryer Lint Screen Filter
11	WP8536939 Whirlpool Spring Clip
12	WP90767 Whirlpool Screw
14	WP8312709 Whirlpool Endcap Clip
15	W10740201 Whirlpool Wire Harness
16	WP8563663 Whirlpool Top Assembly
17	W11693756 Whirlpool Screw Assembly
18	Knob, Control (3)
19	PANEL & BRACKET ASSEMBLY
20	WP3390631 Whirlpool Screw
21	WPW10185981 Whirlpool Timer
22	8566052 Whirlpool Bracket
