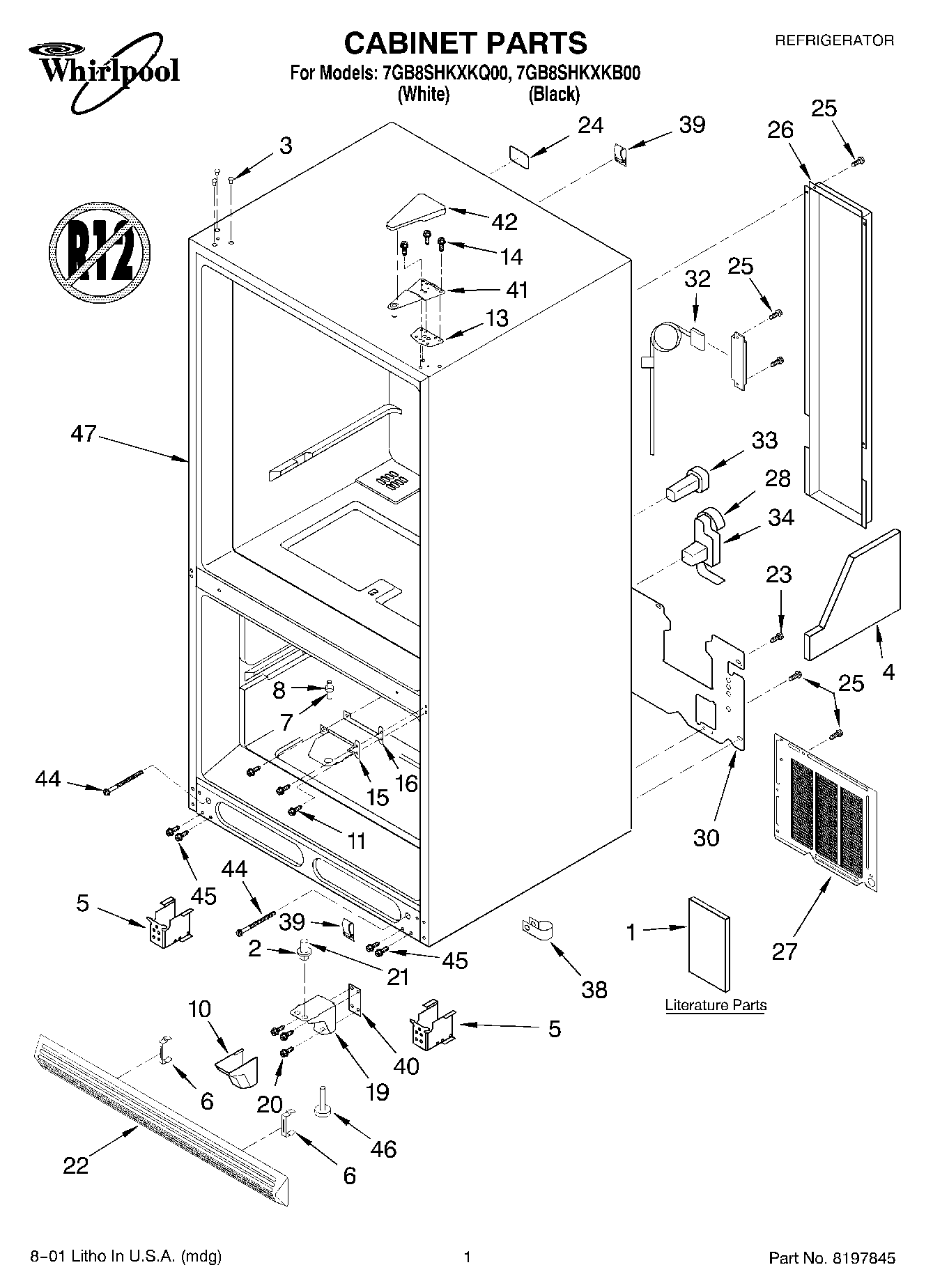

7GB8SHKXKQ00 01 – CABINET, LITERATURE

Products

Position	Product
1	Literature Parts (Energy Label)
1	Literature Parts (Use & Care Guide)
2	Shim (Black)
2	Shim ()
3	WP2189000 Whirlpool Refrigerator Handle Plug
3	WP2189009 Whirlpool Refrigerator Handle Plug
4	Insulation, Foot (Right Side)
4	Insulation, Foot (Left Side)
5	Housing, Roller
6	WPL 4344155
7	WP67006744 Whirlpool Refrigerator Center Pin
8	WPM0274057 Whirlpool Refrigerator Shim
8	WPM0274062 Whirlpool Refrigerator Shim
10	Hinge Cover, Bottom (White)
10	Hinge Cover, Bottom (Black)
11	WP67006380 Whirlpool Screw
13	Shim, Hinge Top
14	WP489349 Whirlpool Refrigerator Screw
15	Hinge, Center
16	Shim, Center Hinge (Black)
16	WPL 4344427
19	Hinge Bottom (Black)
19	Hinge Bottom (White)
20	WP67006715 Whirlpool Refrigerator Screw
21	67007018 Whirlpool Refrigerator Bottom Hinge PIN
22	Grille (White)
22	Grille (Black)
23	WPL 4344267
24	WPL 4344264
25	WPL 4343759
26	Wire Cover
27	Back Cover
28	Harness, Control
30	Cover, Unit
32	Power Cord
33	Grommet
34	WPL 4344260
38	Clip
39	WPM0104106 Whirlpool Refrigerator Clip
40	Shim, Hinge (Black)
40	Shim, Hinge (White)
41	Hinge Top
42	Hinge Cover (Black)
42	Hinge Cover (White)
44	Screw
45	W11573574 Whirlpool Screw
46	W11177593 Whirlpool Leveling Feet
