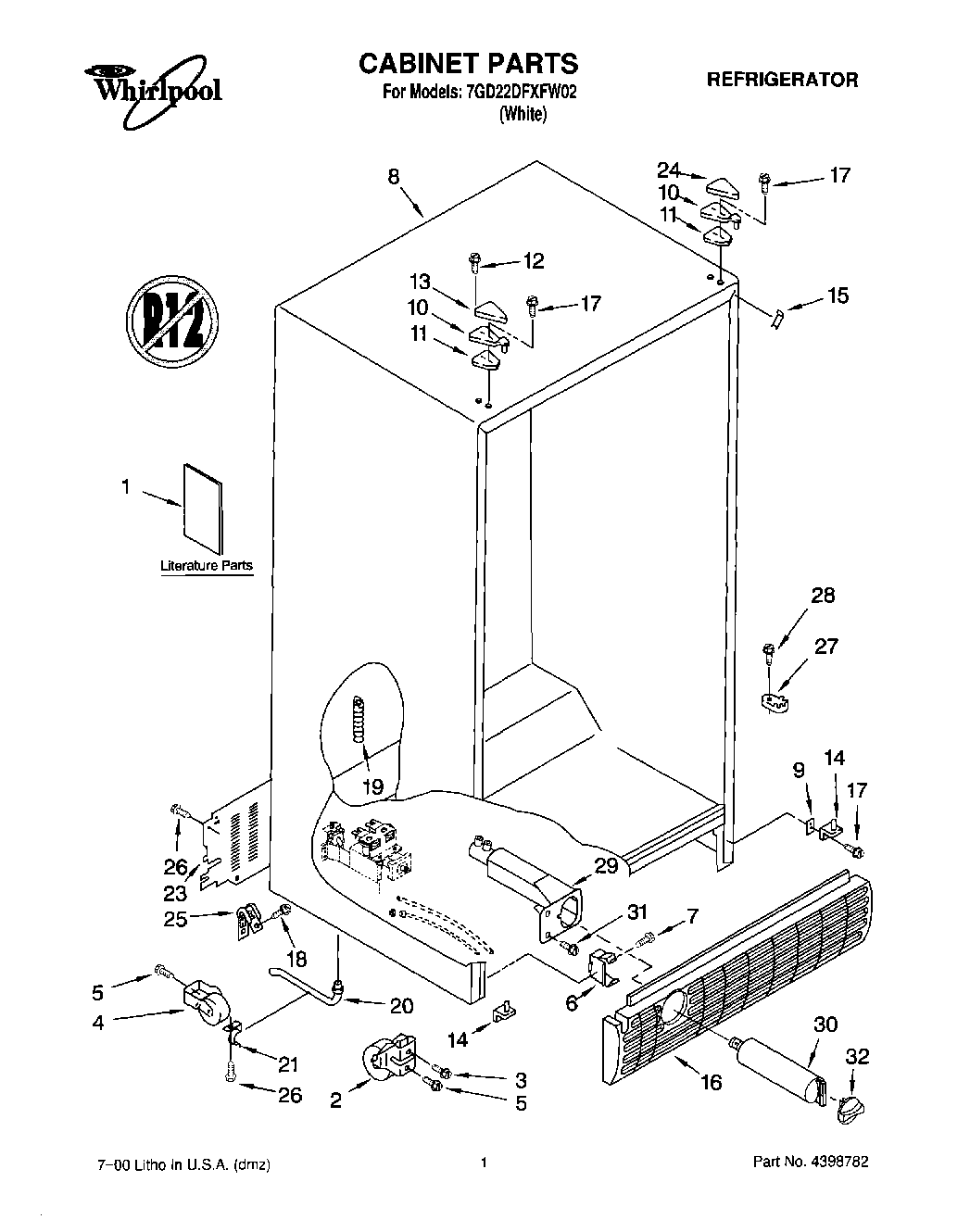

7GD22DFXFW02 01 – CABINET, LITERATURE

Products

Position	Product
1	LITERATURE PARTS (Use & Care Guide)
1	LITERATURE PARTS (Service & Wiring Sheet)
1	Modular Icemaker Service Sheet
2	Front Roller (2)
3	W10850698 Whirlpool Refrigerator Screw
4	WPW10250570 Whirlpool Refrigerator Cabinet Roller
5	WP489427 Whirlpool Refrigerator Screw
6	WP2155013 Whirlpool Refrigerator Clip
7	WP489478 Whirlpool Refrigerator Screw
8	Cabinet (Not A Serviceable Part)
9	WP2181911 Whirlpool Refrigerator Shim
10	WP2196046 Whirlpool Refrigerator Door Hinge
11	Shim, Hinge Top
12	Screw
13	WP1129262 Whirlpool Refrigerator Cover
14	8201707 Whirlpool Door Hinge
15	Filler, Wrapper (White)
16	W10802713 Whirlpool Refrigerator Grille
17	WP489497 Whirlpool Screw
18	WP489464 Whirlpool Refrigerator Screw
19	W11566763 Whirlpool Fitting
20	WP1108438 Whirlpool Refrigerator Extension
21	WP1108439 Whirlpool Refrigerator Clip
23	WP2188756 Whirlpool Refrigerator Unit Cover
24	1119787 Whirlpool Refrigerator Hinge Cover
25	549193 Whirlpool Refrigerator Power Clamp
27	WPW10329686 Whirlpool Door Cam Black
28	WP489483 Whirlpool Screw
29	WP2186443 Whirlpool Water Filter Housing
30	EDR5RXD1 Whirlpool Refrigerator Ice and Water Filter 5 (Pink)
31	WP489500 Whirlpool Refrigerator Screw
32	WP2186494W Whirlpool Water Filter Cap
