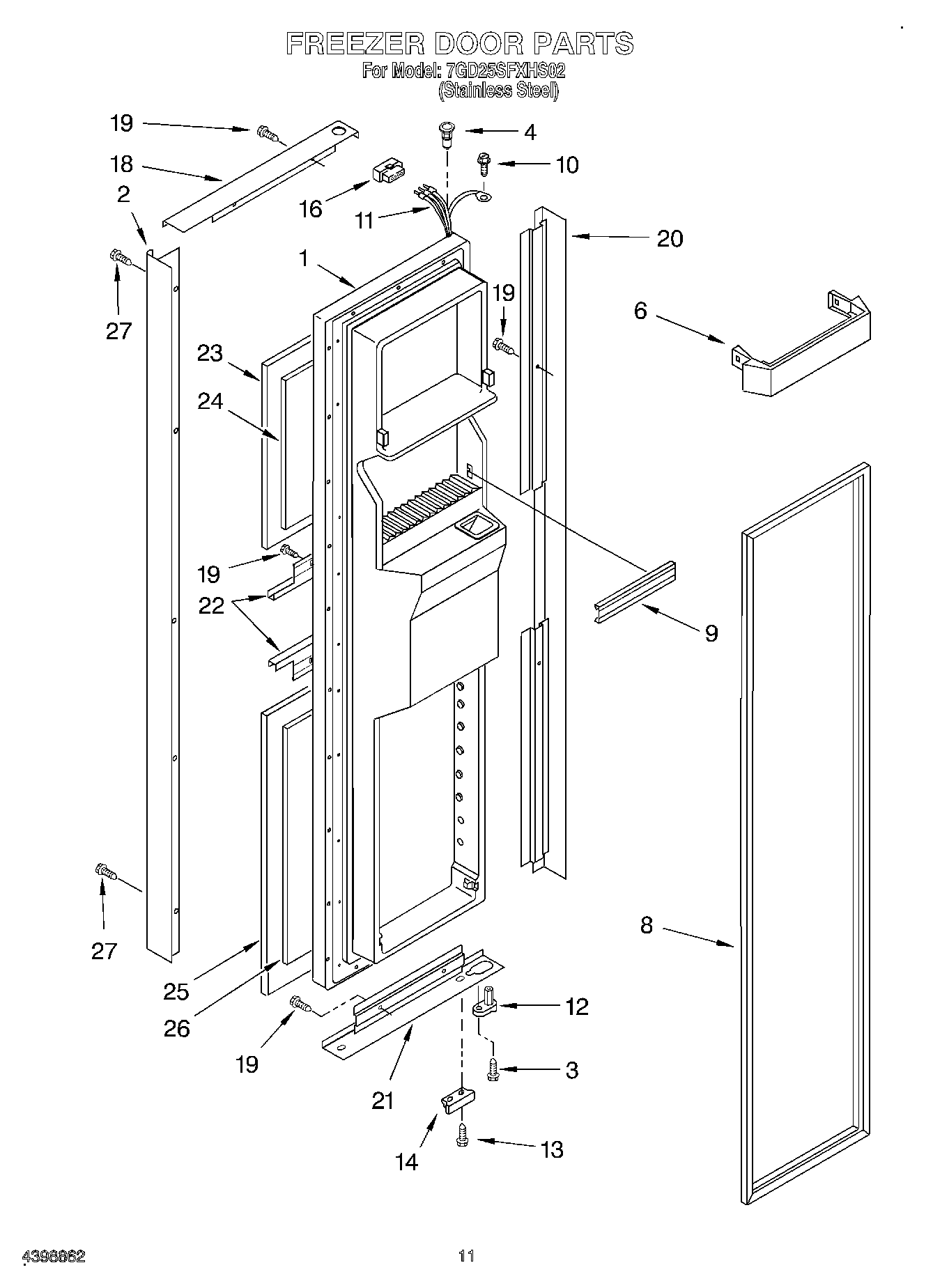

7GD25SFXHS02 07 – FREEZER DOOR

Products

Position	Product
1	Freezer Door (Includes Item No.8 And Dispenser Front Parts)
2	Handle, Center
3	WP3400012 Whirlpool Refrigerator Screw
4	WP2182181 Whirlpool Refrigerator Thimble
6	WP2171157 Whirlpool Shelf Trim
8	2159082 Whirlpool Freezer Door Gasket Black
9	WPW10307490 Whirlpool Door Trim Assembly
10	WP489128 Whirlpool Refrigerator Screw
11	Wiring Harness
12	WP2182179 Whirlpool Cam Closer
13	WP489483 Whirlpool Screw
14	Bracket, Door Stop (Chrome)
14	Bracket, Door Stop (Black)
16	WP2154473 Whirlpool Refrigerator Connector
18	Trim, Door (Top)
19	WP3196557 Whirlpool Screw
20	Trim, Door (Side)
21	Trim, Door (Bottom)
22	Trim, Door (Dispenser, Top & Bottom)
23	Panel, Upper
24	Filler, Panel (Upper)
25	Panel, Lower
26	Filler, Panel (Lower)
27	Screw
