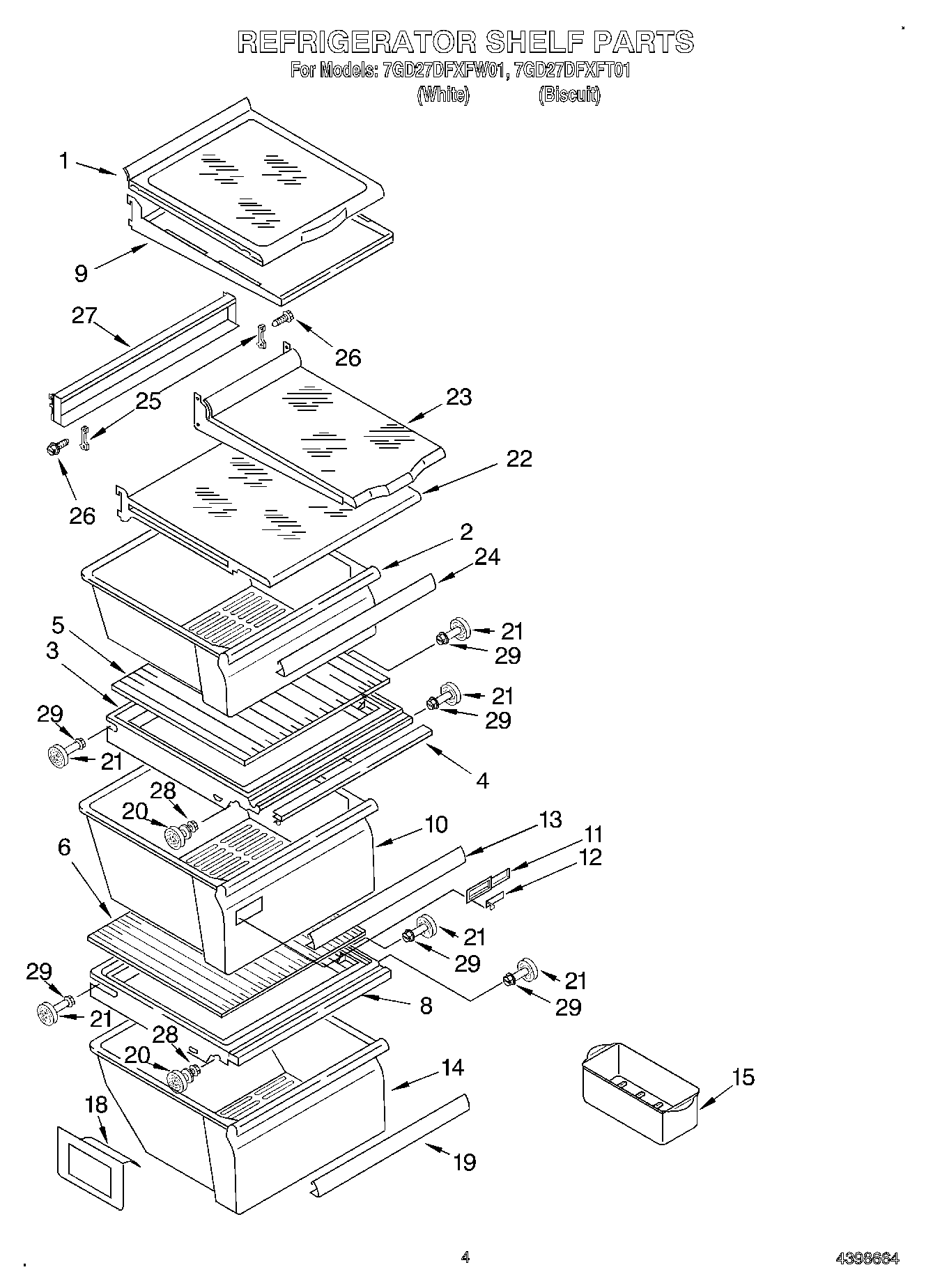

7GD27DFXFT01 03 – REFRIGERATOR SHELF

Products

Position	Product
1	WPW10141748 Whirlpool Refrigerator Glass Shelf
2	W11497323 Whirlpool Snack Pan
4	Gasket, Front
5	W10864399 Whirlpool Glass Shelf
8	W10508993 Whirlpool Refrigerator Cover Pan
9	Frame, Shelf
10	PAN-CRISPR
11	WP2179343 Whirlpool Refrigerator Control Body
12	WP2179342 Whirlpool Refrigerator Slide
14	WP2188664 Whirlpool Dishwasher Meat Crisper Pan
15	W10136387A Whirlpool Refrigerator Egg Container
18	2179350 Whirlpool Refrigerator Deflector
19	WP2179234 Whirlpool Refrigerator Pan Trim
20	W11223328 Whirlpool Refrigerator Shelf Stud
21	WP2196483 Whirlpool Refrigerator Shelf Stud
22	Shelf, Snack Bin
23	Shelf, Slide (Side To Side)
24	WP2179243 Whirlpool Refrigerator Pan Trim
25	Hook, Shelf
26	Screw
27	Track, Shelf
28	WP3-24004-109 Whirlpool Refrigerator Screw
29	WP3400806 Whirlpool Screw
