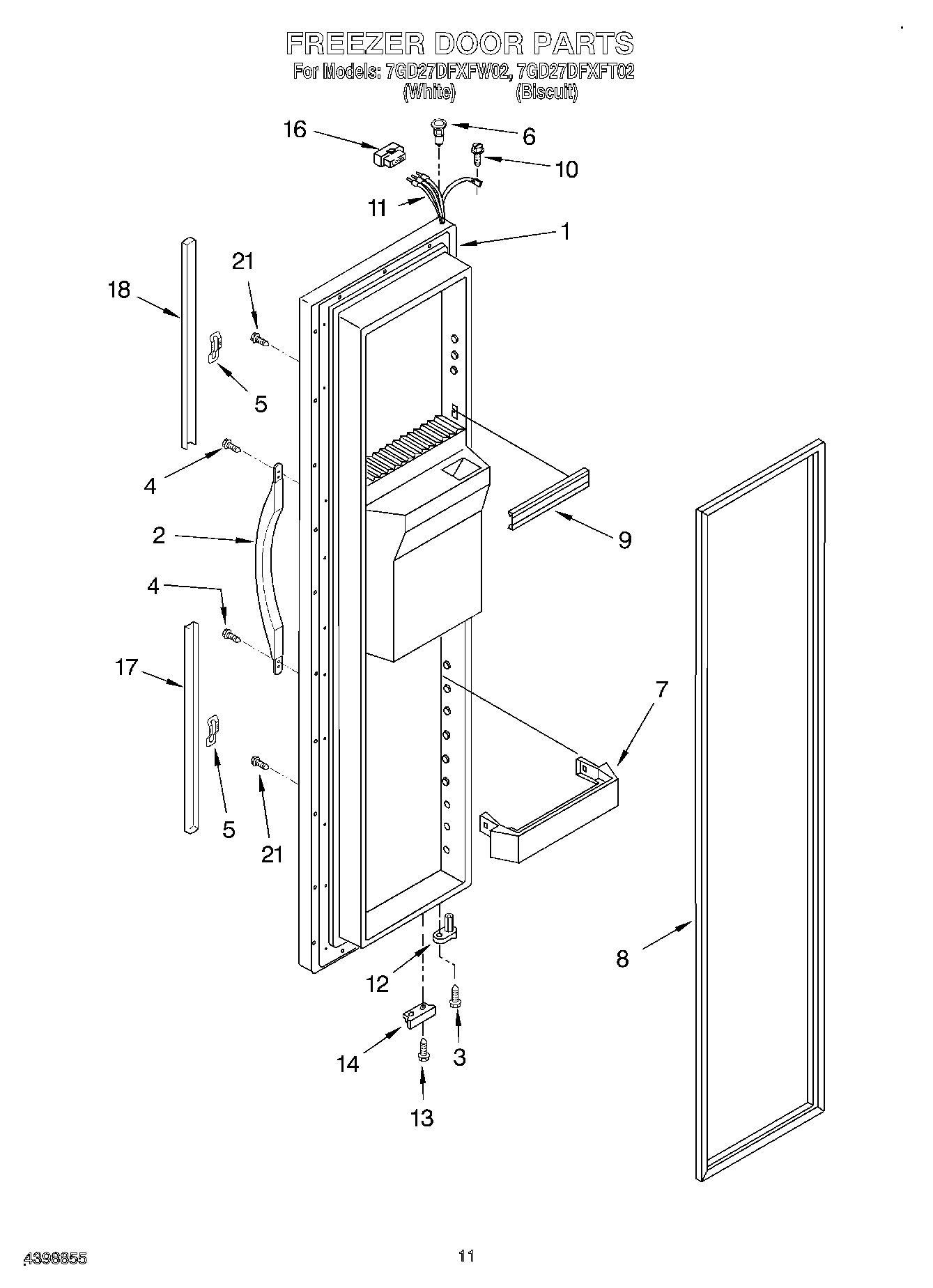

7GD27DFXFW02 07 – FREEZER DOOR

Products

Position	Product
1	Freezer Door (Includes Item No.8 And Dispenser Front Parts) (Biscuit)
1	Freezer Door (Includes Item No.8 And Dispenser Front Parts) (White)
2	Handle, Center (Biscuit)
2	Handle, Center (White)
3	WP3400012 Whirlpool Refrigerator Screw
4	WP489491 Whirlpool Refrigerator Screw
5	WP2195327 Whirlpool Refrigerator Clip
6	WP2182181 Whirlpool Refrigerator Thimble
7	WP2171157 Whirlpool Shelf Trim
8	2159074 Whirlpool Door Gasket Seal
9	WPW10307490 Whirlpool Door Trim Assembly
10	WP489128 Whirlpool Refrigerator Screw
11	Wiring Harness
12	WP2182179 Whirlpool Cam Closer
13	WP489483 Whirlpool Screw
14	Bracket, Door Stop (Chrome)
16	WP2154473 Whirlpool Refrigerator Connector
17	Extension, Bottom (Biscuit)
17	Extension, Bottom (White)
18	WP2194973W Whirlpool Door Trim
18	Extension, Top (Biscuit)
21	WP3400852 Whirlpool Refrigerator Screw
