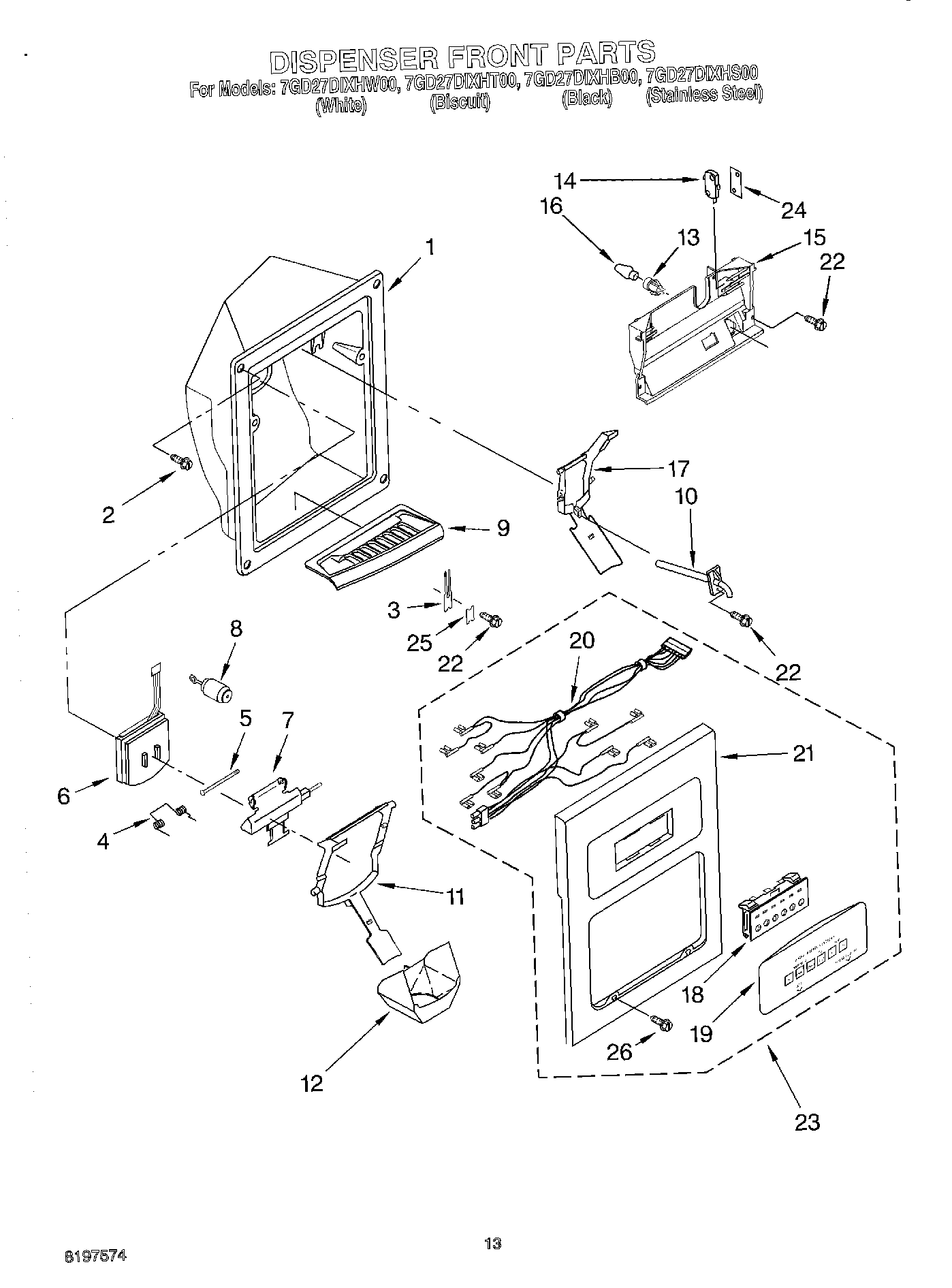

7GD27DIXHT00 08 – DISPENSER FRONT

Products

Position	Product
1	Housing, Dispenser (Not a Serviceable Part)
3	WP2194719 Whirlpool Refrigerator Clip
4	WPW10224328 Whirlpool Refrigerator Spring
5	WP2196195 Whirlpool Refrigerator Door Pin
6	WP2180353 Whirlpool Dispenser Door
7	Door Mechanism Assembly
8	Delay Mechanism
9	Grille, Overflow (Biscuit)
9	Grille, Overflow (White)
9	WP2207007B Whirlpool Refrigerator Grille
9	Grille, Overflow (Tempest Gray)
10	WP4388152 Whirlpool Refrigerator Fitting
11	WP2203562W Whirlpool Refrigerator Dispenser Arm
11	Lever, Ice Dispenser (Biscuit (Almond Shadow Pad))
11	Lever, Ice Dispenser (Tempest Gray (Storm Grey Pad))
11	Lever, Ice Dispenser (Black)
12	WP2180224 Whirlpool Dispenser Funnel Guide
13	2180200 Whirlpool Refrigerator Socket
14	WP2162361 Whirlpool Switch
15	WP2180226 Whirlpool Ice Dispenser Control Switch Bracket
16	WP22002263 Whirlpool Dryer 10W Light Bulb
17	2203561W Whirlpool Refrigerator Dispenser Arm
17	2203561B Whirlpool Refrigerator Dispenser Arm
17	Lever, Water Dispenser (Tempest Gray (Storm Grey Pad))
17	Lever, Water Dispenser (Biscuit (Almond Shadow Pad))
18	Switch Assembly (Not Available, Order No.23)
19	Overlay, Front Cover (Not Available, Order No.23)
20	2187406 Whirlpool Refrigerator Wire Harness
21	Front Cover, Housing (Not Available, Order No.23)
22	WP3400906 Whirlpool Refrigerator Screw
23	Front Cover Assembly (Includes Items
23	WPL 2198631T
23	WPL 2198631TG
23	WPL 2198631W
24	Spacer, Switch (2)
25	WP2195051 Whirlpool Refrigerator Clip
26	WP3400065 Whirlpool Refrigerator Screw
