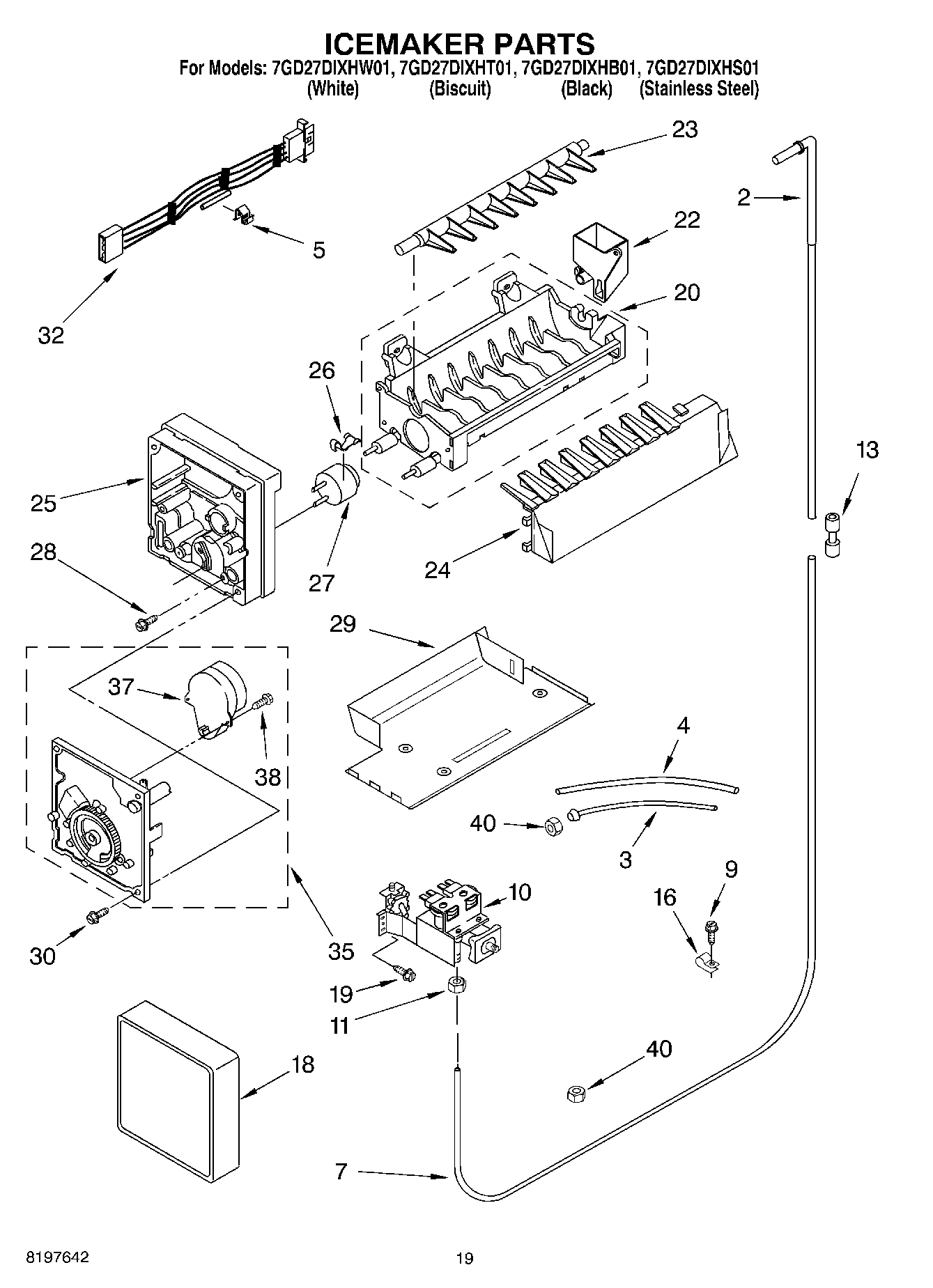

7GD27DIXHT01 12 – ICE MAKER, OPTIONAL

7GD27DIXHT01 12 – ICE MAKER, OPTIONAL

Written by

in

7GD27DIXHT01 12 – ICE MAKER, OPTIONAL

Products

Position	Product
2	WP2256096 Whirlpool Refrigerator Fitting
3	W11496481 Whirlpool Refrigerator Water Tube
4	8201597 Whirlpool Inlet Water Fill Tube Kit Filter
5	WP628379 Whirlpool Refrigerator Clip
7	W10823511 Whirlpool Refrigerator Water Tube
9	WP489478 Whirlpool Refrigerator Screw
10	W10408179 Whirlpool Ice Maker Water Inlet Fill Valve Kit
11	WP627018 Whirlpool Refrigerator Nut
13	WP2198677 Whirlpool Refrigerator Connector
16	WP488366 Whirlpool Refrigerator Clamp
18	WPW10289690 Whirlpool Ice Maker Cover
19	WPW10141625 Whirlpool Refrigerator Screw Assembly
20	WPW10190929 Whirlpool Refrigerator Ice Maker Mold
22	WP628356 Whirlpool Refrigerator Fill Cup
23	WP627843 Whirlpool Refrigerator Ejector Arm
24	W10297244 Whirlpool Refrigerator Arm Strip
25	WP2195914 Whirlpool Refrigerator Ice Maker Housing
26	WP2315522 Whirlpool Refrigerator Clip
27	WP627985 Whirlpool Icemaker Cycling Thermostat
27	Cement Alumilastic)
28	8533917 Whirlpool Refrigerator Screw
29	WP2212322 Whirlpool Refrigerator Bracket
30	WP681249 Whirlpool Screw Assembly
32	WP2187467 Whirlpool Refrigerator Wire Harness
37	W10190935 Whirlpool Refrigerator Icemaker Motor Module Assembly
38	489136 Whirlpool Refrigerator Screw
40	285006 Whirlpool Spray
40	PAINT, BULK (1 QT. GRAPHITE)
40	PAINT, TOUCH-UP (1/2OZ. GRAPHITE)
40	8171357 Whirlpool Spray Nozzle
40	Nut, Compression
40	4210463RW Whirlpool Refrigerator Coil Brush
40	Ice Container- Crusher Assembly
40	72032 Whirlpool Touch Up Paint Black
40	WPL 876029
40	606755 Whirlpool Refrigerator Bag
40	511873 Whirlpool Refrigerator Paint
40	4392901 Whirlpool Biscuit Spray Paint
40	4392899 Whirlpool Biscuit Touch-Up Paint
40	350942 Whirlpool Spray Paint
40	212643 Whirlpool Refrigerator Permagum Sealer
40	350930 Whirlpool White Spray Paint
40	799344 Whirlpool Refrigerator Paint
40	833938 Whirlpool Refrigerator Terminal
40	876370 Whirlpool Refrigerator Insulation
40	WP503695 Whirlpool Refrigerator Sealer
40	WPL 799833
40	Enamel, Black (1 Qt. Uncut)
40	CEMENT, ALUMILASTIC (1 1/4 OZ.)
40	TAPE, VINYL (3/4 X 108“)
40	PAINT, BULK (1 QT.) (BISCUIT (UNCUT))
40	Torx Key
40	WP542638 Whirlpool Refrigerator Grease
40	WP505587 Whirlpool Refrigerator Sealer
40	72017 Whirlpool Appliance Touch-Up Paint White
