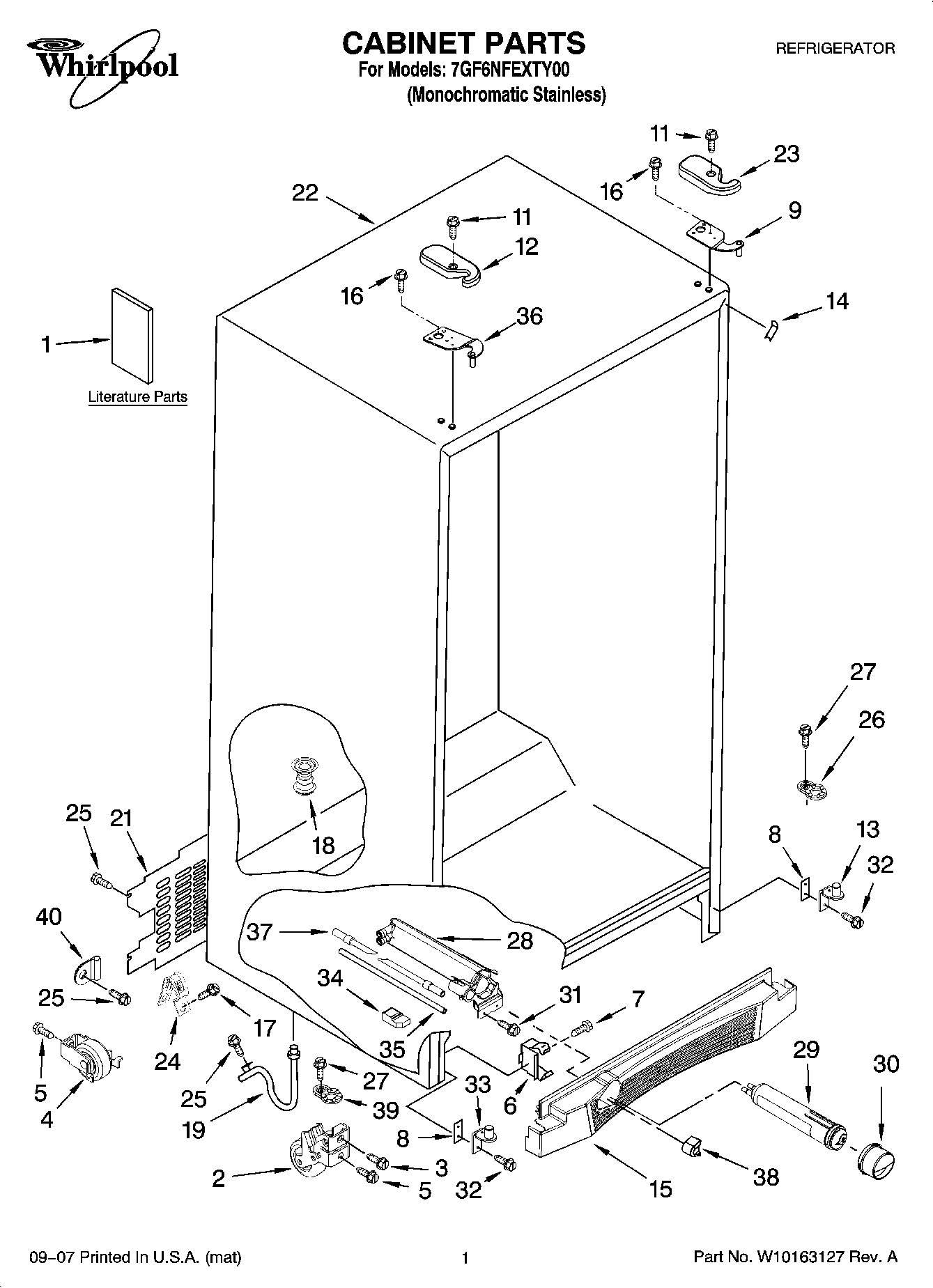

7GF6NFEXTY00 01 – CABINET PARTS

Products

Position	Product
1	Energy Guide
1	Modular Icemaker Service Sheet
1	Instruction Sheet, Door Removal
1	Service & Wiring Sheet
1	Owner`s Manual
2	Front Roller (2)
3	W10850698 Whirlpool Refrigerator Screw
4	WPW10250570 Whirlpool Refrigerator Cabinet Roller
5	WP489427 Whirlpool Refrigerator Screw
6	WP2155013 Whirlpool Refrigerator Clip
7	WP489399 Whirlpool Refrigerator Screw
8	WP2181911 Whirlpool Refrigerator Shim
9	WP2203771 Whirlpool Refrigerator Door Hinge
11	WP8281227 Whirlpool Screw
12	2203407AP Whirlpool Refrigerator Cover
13	8201707 Whirlpool Door Hinge
14	Filler, Wrapper (Apollo Grey)
15	Grille (Universal Silver)
17	W11693756 Whirlpool Screw Assembly
18	W11566763 Whirlpool Fitting
19	Extension Tube
21	Cover, Unit
22	Cabinet, (Not A Serviceable Part)
23	2203408AP Whirlpool Refrigerator Cover
24	489348 Whirlpool Refrigerator Tube Clamp
26	WPW10329686 Whirlpool Door Cam Black
27	WP489483 Whirlpool Screw
28	WPW10121138 Whirlpool Refrigerator Water Filter Housing
29	FILTER 3-SINGLE TEAL
30	WP2260518AP Whirlpool Filter Cap Assembly
31	WP489500 Whirlpool Refrigerator Screw
32	WP489497 Whirlpool Screw
33	2303141 Whirlpool Refrigerator Door Hinge
34	Block, Housing Support
35	WPW10350006 Whirlpool Refrigerator Water Tube
36	WP2203770 Whirlpool Refrigerator Door Hinge
37	8201597 Whirlpool Inlet Water Fill Tube Kit Filter
38	Button, Water
39	WP2223751 Whirlpool Refrigerator Door Cam
40	WPL 2305373
