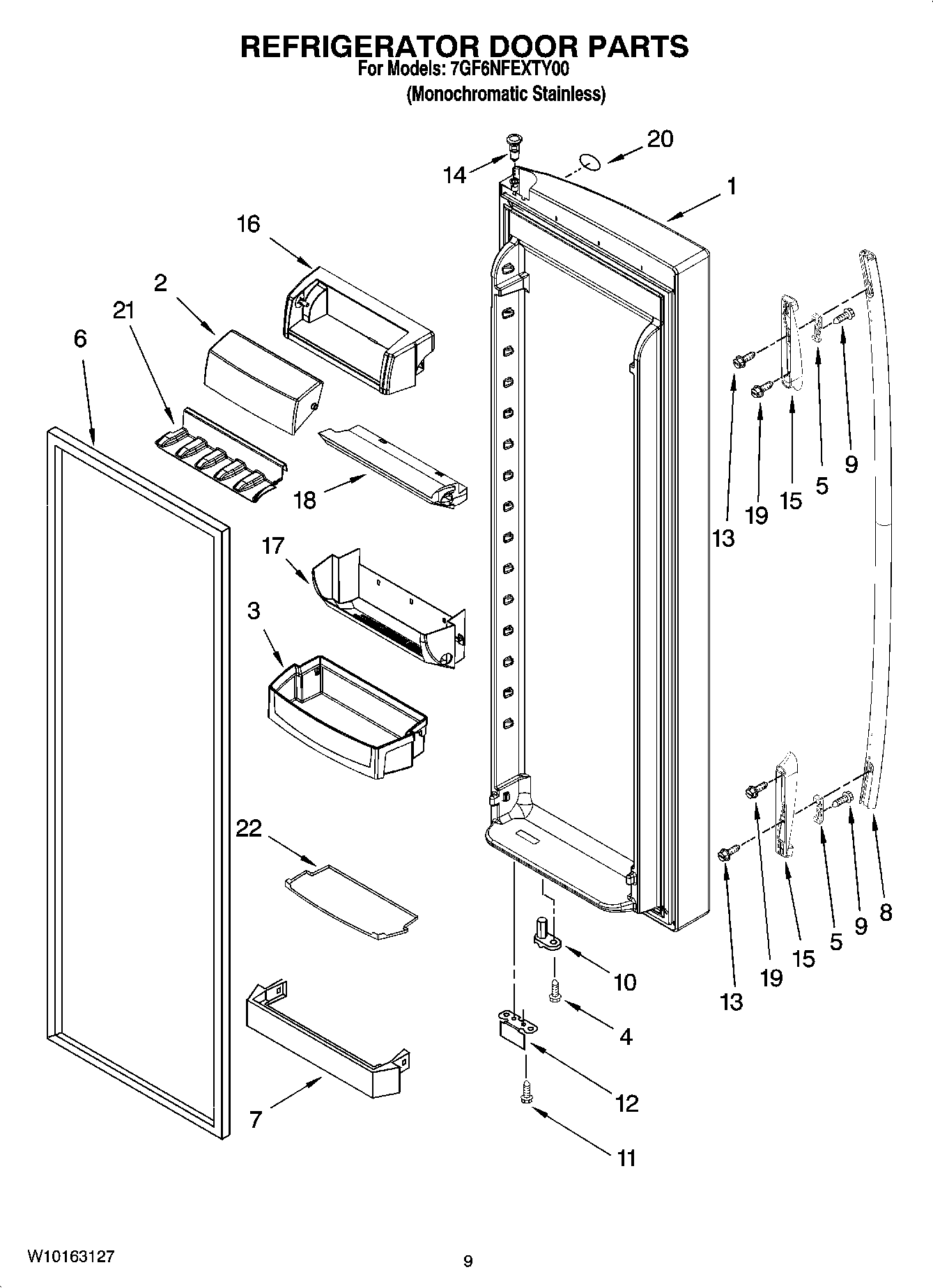

7GF6NFEXTY00 06 – REFRIGERATOR DOOR PARTS

Products

Position	Product
1	Refrigerator Door (Includes Item 6) (Stainless Steel)
2	Dairy Door
3	Door Bin (3)
4	WP3400012 Whirlpool Refrigerator Screw
5	WP2255411 Whirlpool Refrigerator Clip
6	WPW10136734 Whirlpool Refrigerator Door Gasket
7	WP2318736 Whirlpool Refrigerator Door Trim
8	Handle (Universal Silver)
9	WP489491 Whirlpool Refrigerator Screw
10	WP2182179 Whirlpool Cam Closer
11	WP489483 Whirlpool Screw
12	Bracket, Door Stop (Chrome)
13	SCREW
14	WP2182181 Whirlpool Refrigerator Thimble
15	Endcap, Handle (Stainless)
16	Door Compartment
17	Frame, Can Rack
18	Air Diffuser Asm
19	SCREW
20	Nameplate
21	Floor, Can Rack
22	Mat, Bin (2)
22	Water Bottle
22	Following Parts Not Illustrated
