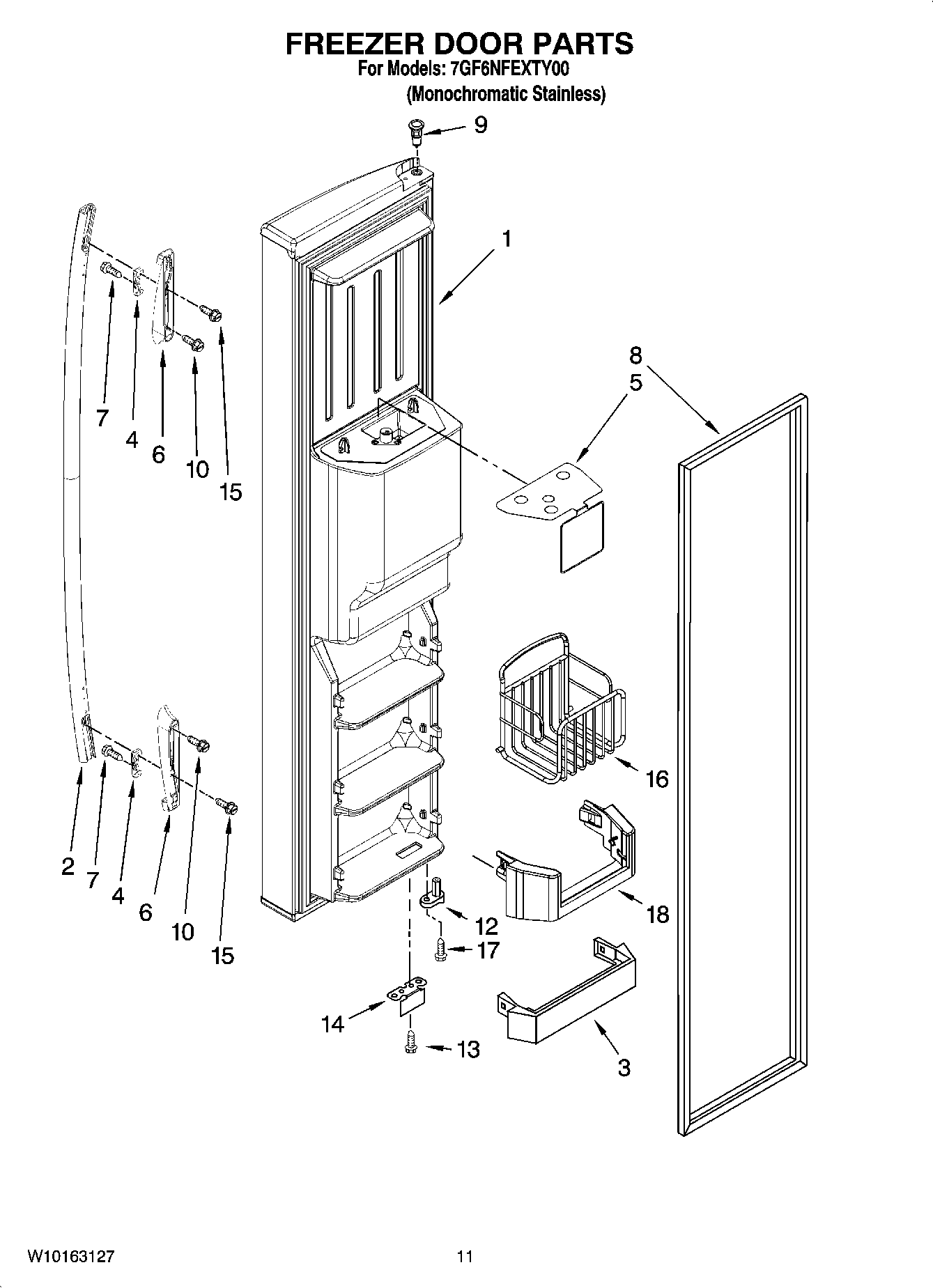

7GF6NFEXTY00 07 – FREEZER DOOR PARTS

Products

Position	Product
1	Freezer Door (Includes 8 And Dispenser Front Parts) (Stainless Steel)
2	Handle (Universal Silver)
3	WP2171157 Whirlpool Shelf Trim
4	WP2255411 Whirlpool Refrigerator Clip
5	Safety Barrier
6	Endcap, Handle (Stainless)
7	WP489491 Whirlpool Refrigerator Screw
8	W10136735 Whirlpool Refrigerator Door Gasket
9	WP2182181 Whirlpool Refrigerator Thimble
10	SCREW
12	WP2223752 Whirlpool Refrigerator Door Cam
13	WP489483 Whirlpool Screw
14	Bracket, Door Stop (Chrome)
15	SCREW
16	Basket, Tilt Out
17	WP3400012 Whirlpool Refrigerator Screw
18	Wire Assembly, Freezer Door
18	Tube, Water Dispenser
18	TRIVET, TILT-OUT
18	Following Parts Not Illustrated
