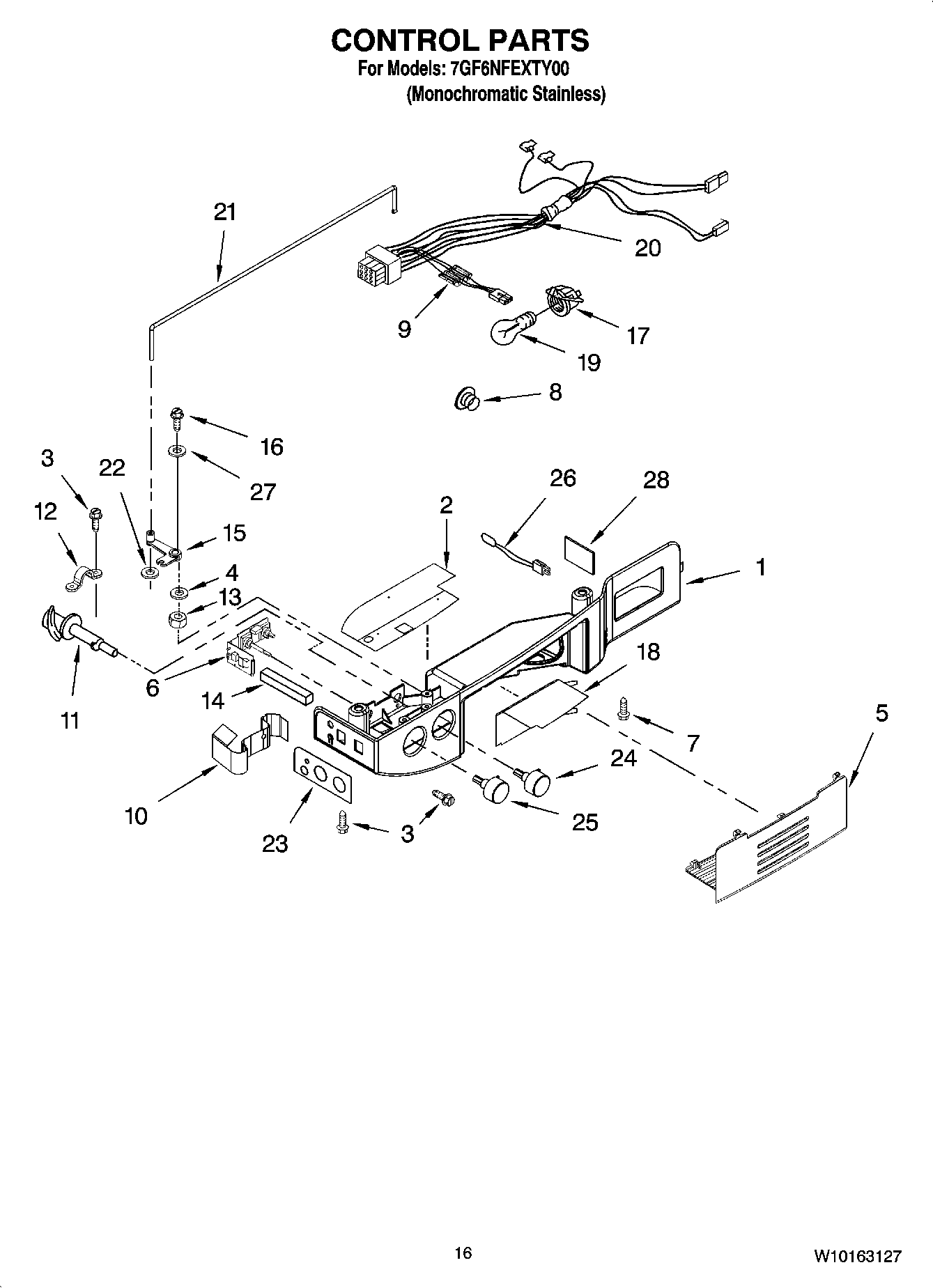

7GF6NFEXTY00 10 – CONTROL PARTS

Products

Position	Product
1	Control Box
2	Shield
3	WP3196557 Whirlpool Screw
4	Washer
5	Lens, Light
6	Electronic Control
8	940014 Whirlpool Refrigerator Primary Button Plug
9	Ferrite Bead
10	Shield, Electrical (Internal)
11	Cam Assembly
12	Bearing Body
13	Nut, Hex
14	Foam, Shield
15	Pivot Arm
16	627068 Whirlpool Refrigerator Screw
17	4387478 Whirlpool Refrigerator Light Socket
18	Shield, Heat
19	RANGE ONLY 40W 120V APPL BULB
20	Control Box Harness
21	Connecting Rod
22	Fastener, Push-On
23	Escutcheon, Control Box
24	Knob, RC
25	Knob, FC
26	WP2188819 Whirlpool Thermistor
27	489203 Whirlpool Refrigerator Washer
28	Air Seal, Thermistor
