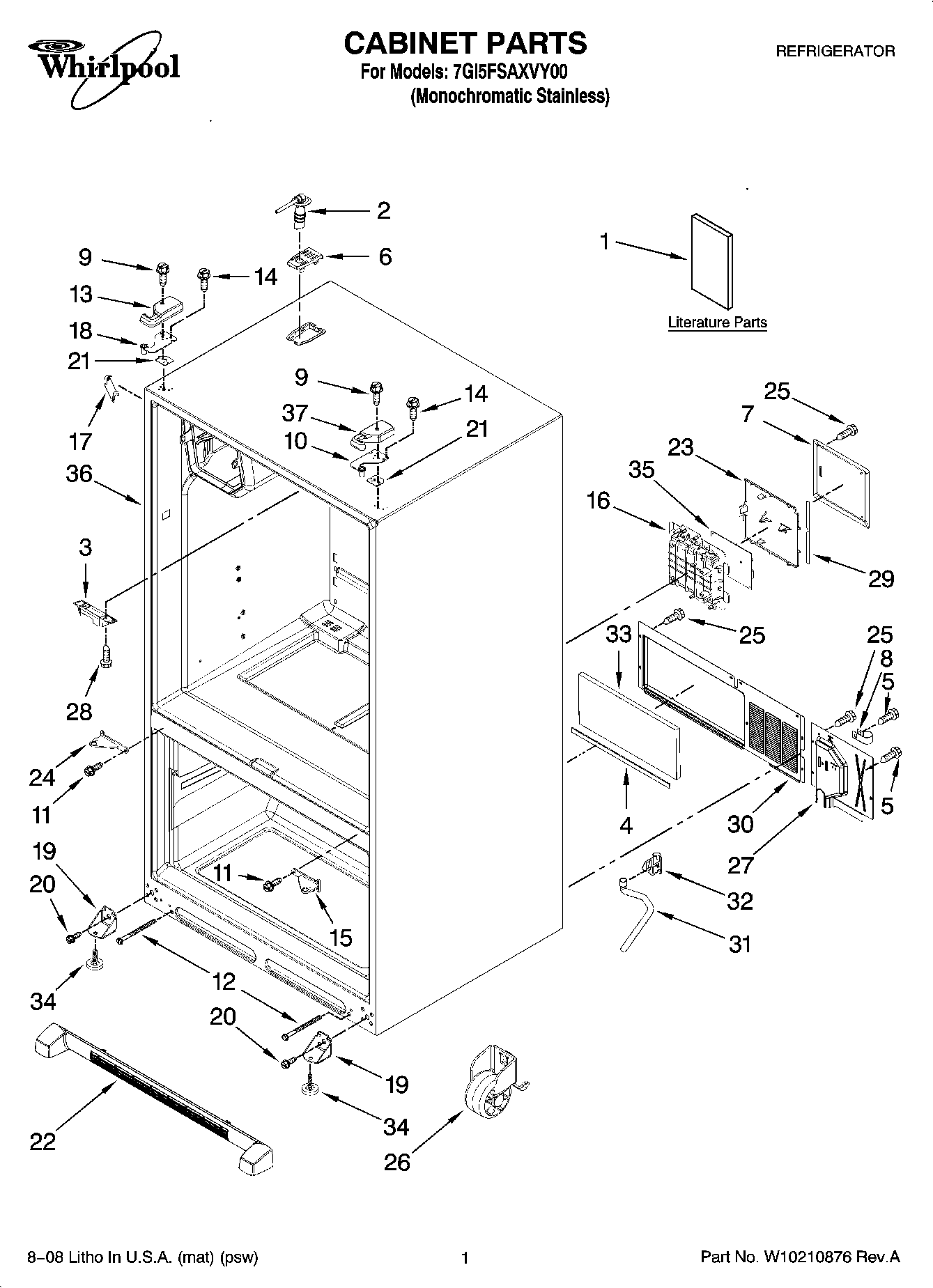

7GI5FSAXVY00 01 – CABINET PARTS

7GI5FSAXVY00 01 – CABINET PARTS

Written by

in

7GI5FSAXVY00 01 – CABINET PARTS

Products

PositionProduct
1Guide, Energy
1TECH SHEET
1Use & Care Guide
2TUBE-WATER
3WP67003405 Whirlpool Pivot Block
4Gasket
567006425 Whirlpool Refrigerator Screw
6W10191141 Whirlpool Refrigerator Tube Cover
7COVER, CONTROL BOX
8W10833902 Whirlpool Refrigerator Clamp
9WP8281196 Whirlpool Screw
10W11592374 Whirlpool Refrigerator Top Door Hinge
11WP67006380 Whirlpool Screw
1271003131 Whirlpool Oven Screw
13WPW10337648 Whirlpool Refrigerator Cover
14WP489349 Whirlpool Refrigerator Screw
16WP67006390 Whirlpool Refrigerator High Voltage Box
17WP12587703AP Whirlpool Refrigerator Filler
18W11592375 Whirlpool Door Hinge
1912456801V Whirlpool Refrigerator Bracket
2067006564 Whirlpool Refrigerator Screw
2112999502 Whirlpool Refrigerator Hinge Shim
2112999501 Whirlpool Refrigerator Hinge Shim
22WPW10534155 Whirlpool Refrigerator Kickplate Grille Gray
2367006428 Whirlpool Refrigerator LID, HV Control
24W10917988 Whirlpool Refrigerator Door Hinge
25W11686675 Whirlpool Screw
26WP67005149 Whirlpool Roller
27WPL 12701908
28SCREW
29Gasket, HV Control
30Cover, Unit
31W10164397 Whirlpool Refrigerator Drain Tube
32Clip, Drain Tube
3367003796 Whirlpool Refrigerator Fiber Acoustic
34W11177593 Whirlpool Leveling Feet
35WPW10310240 Whirlpool Main Control Board + Core
36Cabinet (Not A Servicable Part)
37WPW10191117 Whirlpool Refrigerator Cover
