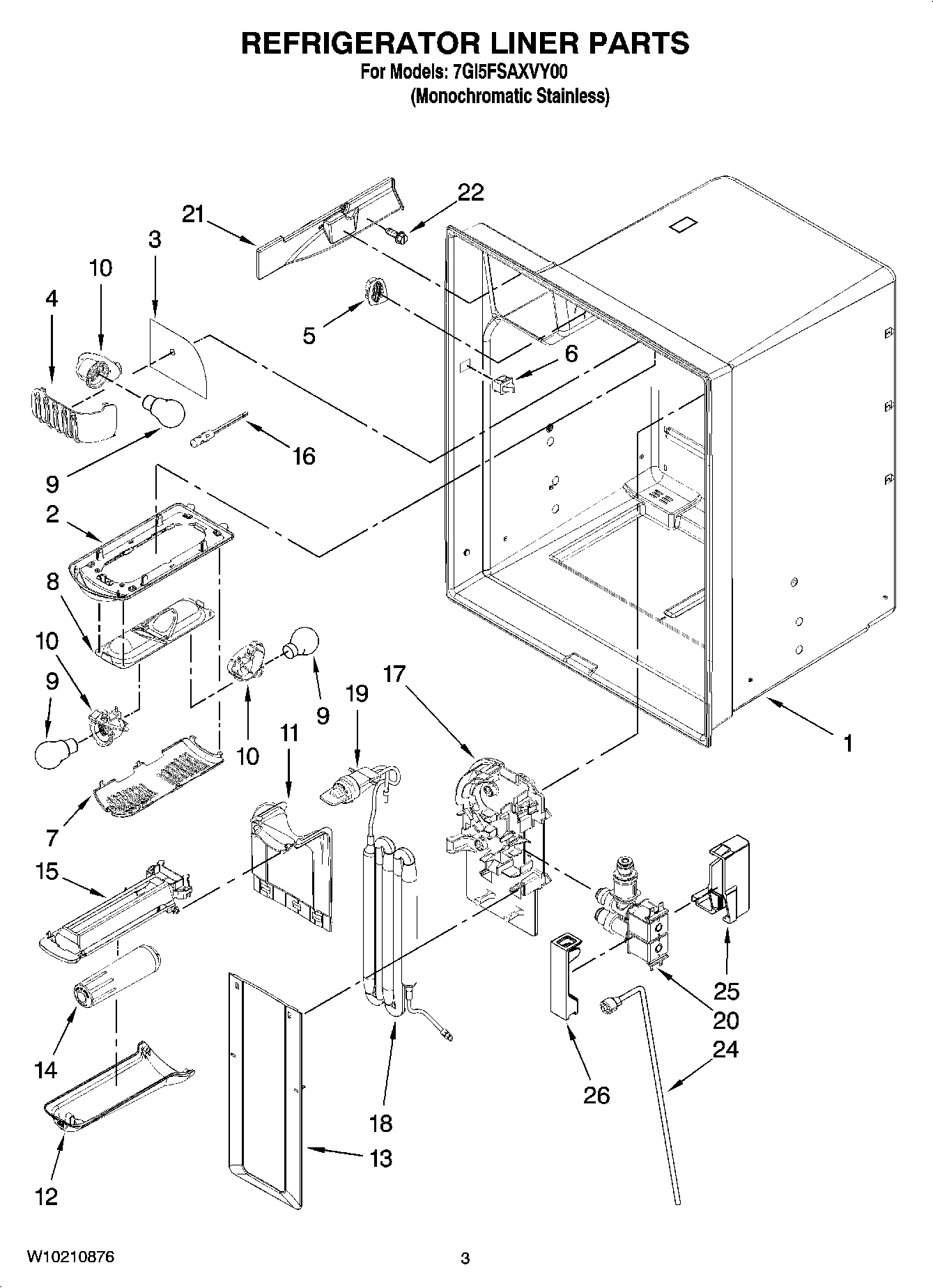

7GI5FSAXVY00 02 – REFRIGERATOR LINER PARTS

Products

Position	Product
1	Liner (Not A Serviceable Part)
2	MODULE, LIGHT
3	FOIL, LIGHT
4	12921801 Whirlpool Refrigerator Light Cover
5	W10555984 Whirlpool Refrigerator Grille
6	W11396033 Whirlpool Refrigerator Rocker Switch
7	COVER, LIGHT
8	12806601 Whirlpool Refrigerator Light Housing
9	W11679940 Whirlpool Refrigerator Light Bulb Assembly
10	W11447232 Whirlpool Refrigerator Socket
11	COVER, WATER TANK (UPPER)
12	WP67006331 Whirlpool Refrigerator Water Filter Cover
13	67006329 Whirlpool Refrigerator Cover Water Tank (Lower)
14	everydropÂ® Filter 4 EDR4RXD1 Whirlpool Refrigerator Water
15	67006325 Whirlpool Filter Base Bracket
16	12002355 Whirlpool Refrigerator Thermistor Kit
17	67006324 Whirlpool Refrigerator Bracket
18	WP12956202 Whirlpool Refrigerator Reservoir
19	Plug, Bypass
20	67006322 Whirlpool Refrigerator Dual Water Valve
21	Cover, Ice Box Harness
22	67006425 Whirlpool Refrigerator Screw
24	Waterline, Cabinet (W/Nut)
25	W10118193 Whirlpool Refrigerator Cover
26	W10118194 Whirlpool Refrigerator Cover
