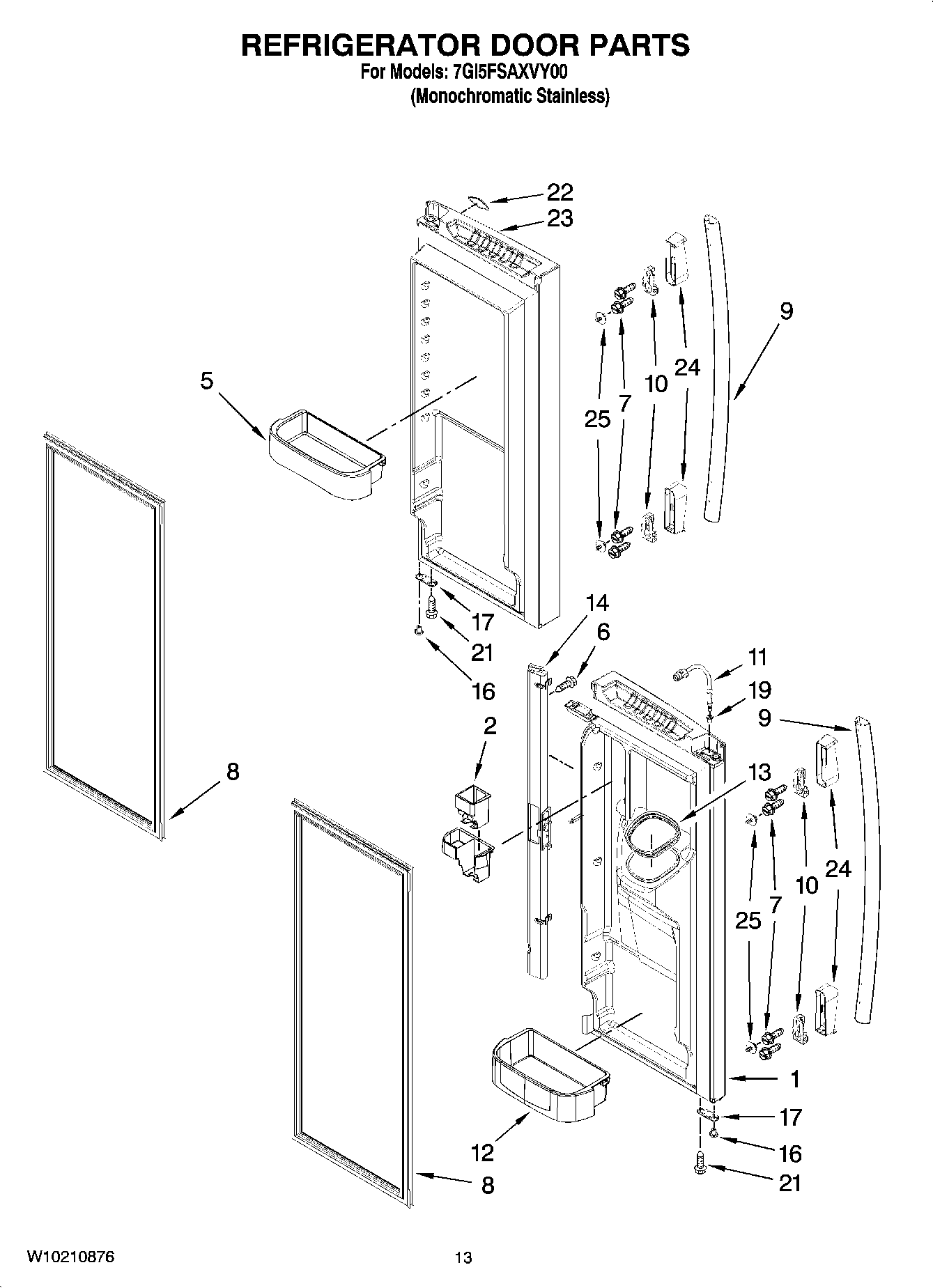

7GI5FSAXVY00 07 – REFRIGERATOR DOOR PARTS

7GI5FSAXVY00 07 – REFRIGERATOR DOOR PARTS

Written by

in

7GI5FSAXVY00 07 – REFRIGERATOR DOOR PARTS

Products

PositionProduct
1DOOR, LEFT (MONO STAINLESS)
2Dispenser, Can
5WPW10451500 Whirlpool Cantilever Bin
6W11311945 Whirlpool Refrigerator Screw
7W10267047 Whirlpool Screw
8GASKET-FIP GRAY
9W11351147 Whirlpool Refrigerator Handle
10Clip, Handle
1112962106 Whirlpool Refrigerator Waterline Door
12WPW10451501 Whirlpool Refrigerator Cantilever Bin
13WPW10287601 Whirlpool Seal
14WP12722813AP Whirlpool Refrigerator Mullion Rail
16WP12028505AP Whirlpool Closing Cam
17W11703060 Whirlpool Door Stop
1912996601 Whirlpool Refrigerator Bushing Clip
21WP98165 Whirlpool Screw
22Nameplate
23Door, Right (Stainless)
24Endcap, Handle
25WP12992902 Whirlpool Refrigerator Screw
