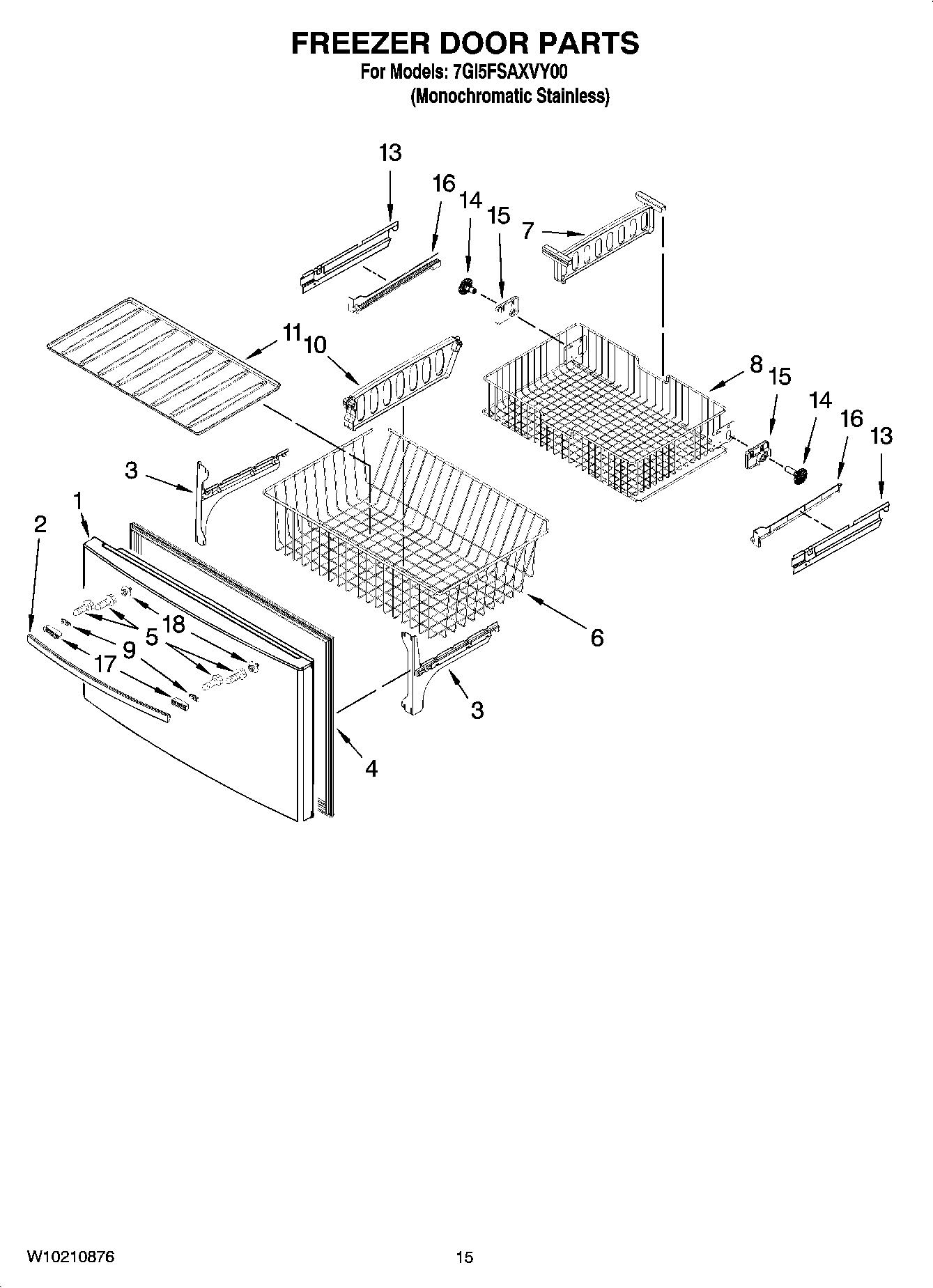

7GI5FSAXVY00 08 – FREEZER DOOR PARTS

Products

Position	Product
1	DOOR, FREEZER (STAINLESS)
2	WPW10223025K Whirlpool Refrigerator Handle
3	WPW10330991 Whirlpool Refrigerator Bracket
3	WPW10330993 Whirlpool Refrigerator Bracket
4	GASKET-FIP
5	W10267047 Whirlpool Screw
6	Basket, Freezer (Lower)
7	W10146439 Whirlpool Refrigerator Divider
8	W11218042 Whirlpool Refrigerator Freezer Basket
9	Clip, Handle
10	W10847995 Whirlpool Divider Assembly
11	Tray, Lower Basket
13	WPW10280608 Whirlpool Refrigerator Bracket
13	WPW10280613 Whirlpool Refrigerator Bracket
14	WPW10474716 Whirlpool Refrigerator Gear
14	WPW10474715 Whirlpool Refrigerator Gear
15	W10348260 Whirlpool Refrigerator Bracket
15	W10348259 Whirlpool Refrigerator Bracket Assembly
16	W11489993 Whirlpool Refrigerator Rail
16	W11489994 Whirlpool Refrigerator Rail
17	ENDCAP, HANDLE (STAINLESS)
18	WP12992902 Whirlpool Refrigerator Screw
