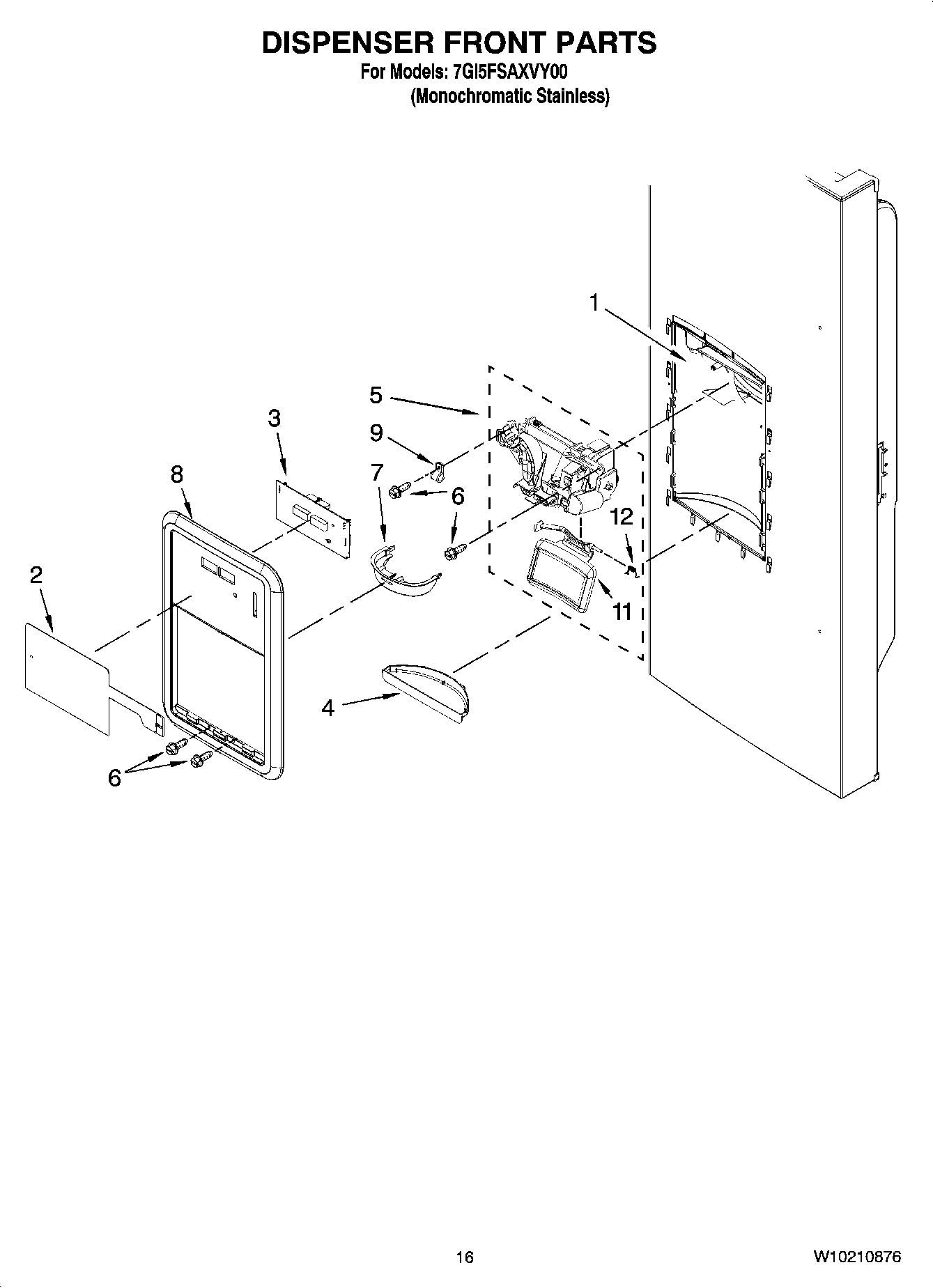

7GI5FSAXVY00 09 – DISPENSER FRONT PARTS

Products

PositionProduct
1Housing Dispenser (Not Serviced)
2W10740218 Whirlpool Refrigerator Electric Control
4W11676505 Whirlpool Drip Tray
5WP13005706 Whirlpool Refrigerator Chute
667006425 Whirlpool Refrigerator Screw
767006295 Whirlpool Refrigerator Target Ring
8WPW10310690 Whirlpool Refrigerator Cover
9M0108106 Whirlpool Refrigerator Clamp
11WPW10185234 Whirlpool Refrigerator Pad
12WP12565502 Whirlpool Refrigerator Spring
