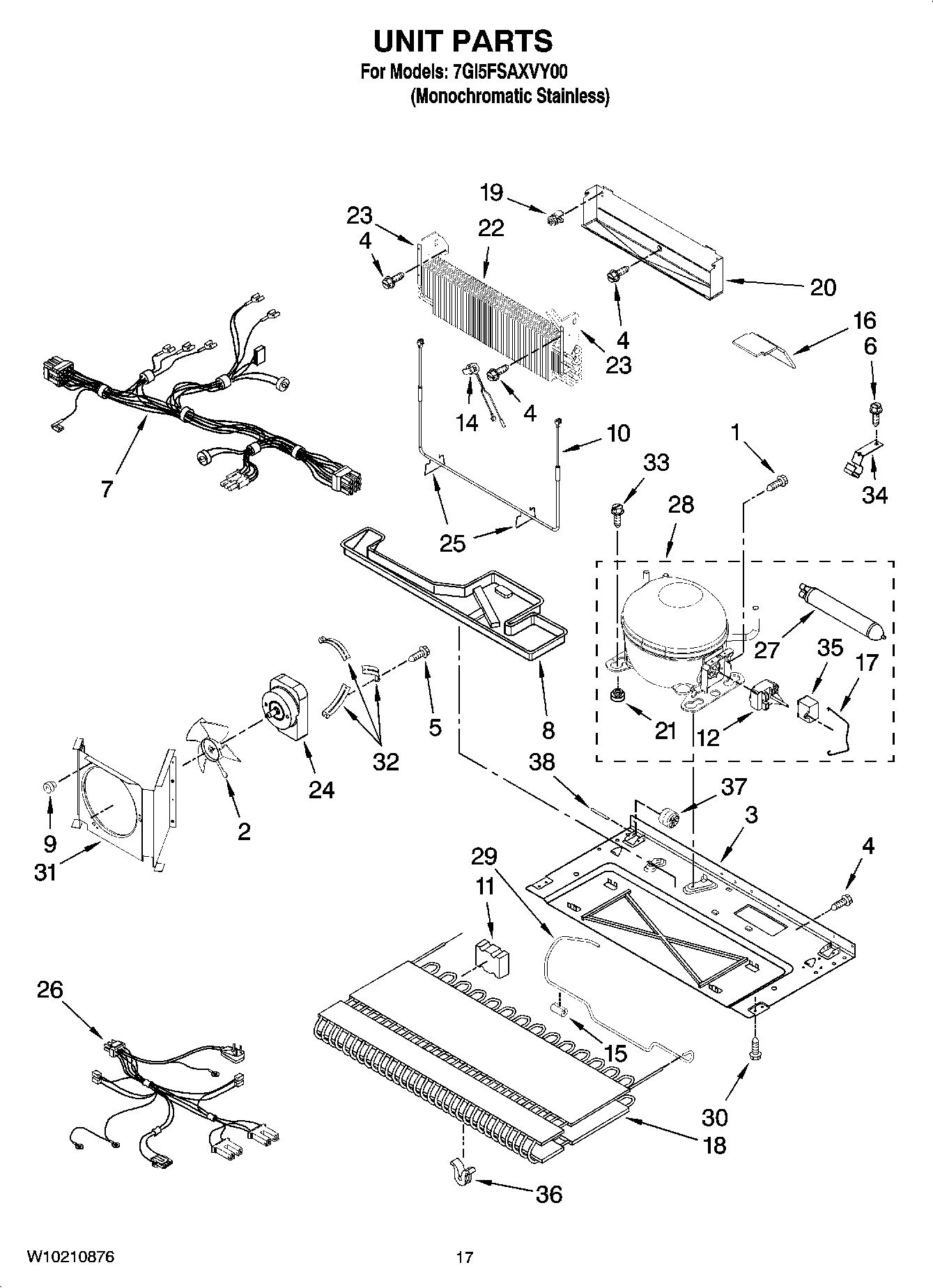

7GI5FSAXVY00 10 – UNIT PARTS, OPTIONAL PARTS (NOT INCLUDED)

7GI5FSAXVY00 10 – UNIT PARTS, OPTIONAL PARTS (NOT INCLUDED)

Written by

in

7GI5FSAXVY00 10 – UNIT PARTS, OPTIONAL PARTS (NOT INCLUDED)

Products

PositionProduct
MISCELLANEOUS, CLEANER, STAINLESS STEEL
WP978025 Whirlpool Refrigerator Valve
VALVE, ACCESS (1/2“)
TAPE, VINYL (3/4 X 108“)
CEMENT, ALUMILASTIC (1 1/4 OZ.)
Enamel, Black (1 Qt. Uncut)
WPL 876029
WPL ARI17086A4
WPL ARI17085A6
WPL ARI17084A9
WPL ARI17083A4
WPL ARI17082A6
285006 Whirlpool Spray
72032 Whirlpool Touch Up Paint Black
WPL ARI17081A7
WPL ARI17088A8
WPW10324090 Whirlpool Refrigerator Ice Bin
Torx Key
978030 Whirlpool Refrigerator Valve
WP542638 Whirlpool Refrigerator Grease
4392899 Whirlpool Biscuit Touch-Up Paint
350942 Whirlpool Spray Paint
212643 Whirlpool Refrigerator Permagum Sealer
VALVE, ACCESS (5/8“)
799344 Whirlpool Refrigerator Paint
72017 Whirlpool Appliance Touch-Up Paint White
WPL ARI17087A4
350930 Whirlpool White Spray Paint
4392901 Whirlpool Biscuit Spray Paint
978026 Whirlpool Refrigerator Primary Valve
606755 Whirlpool Refrigerator Bag
833938 Whirlpool Refrigerator Terminal
WP505587 Whirlpool Refrigerator Sealer
876370 Whirlpool Refrigerator Insulation
WP503695 Whirlpool Refrigerator Sealer
978027 Whirlpool Refrigerator Primary Valve
876764 Whirlpool Refrigerator Primary Valve
112992301 Whirlpool Refrigerator Screw
2W10156818 Whirlpool Refrigerator Fan Blade
3Basepan
467006425 Whirlpool Refrigerator Screw
5WP67004954 Whirlpool Refrigerator Screw
6WP33001882 Whirlpool Screw
7W10850438 Whirlpool Refrigerator Evaporator Motor
8WP12579803 Whirlpool Refrigerator Drain Pan
9Grommet (3)
10HEATER, DEFROST
11Block, Condenser
12WPW10197428 Whirlpool Start Device
14WP67006387 Whirlpool Refrigerator Thermostat
1567005680 Whirlpool Refrigerator Condenser Grommet
1612820504 Whirlpool Refrigerator Insulation
17Clip, Retaining
18WP67006131 Whirlpool Refrigerator Condenser
19CLIP, EVAP (2)
20W11547653 Whirlpool Refrigerator Drip Tray
21WPW10169124 Whirlpool Refrigerator Grommet
2212002730 Whirlpool Refrigerator Evaporator Kit
23DAM, RETURN (RIGHT HAND)
2312963002SP Whirlpool Refrigerator Evaporator Support
24Motor, Fan
25W11673433 Whirlpool Clip
26Harness, Unit Includes Cord
27WPW10143759 Whirlpool Dryer Filter
28W10160407 Whirlpool Refrigerator Compressor
29TUBE, DISCHARGE
30Screw (4)
31Shroud, Condenser
32WP67004953 Whirlpool Refrigerator Bracket
3312846902 Whirlpool Refrigerator Screw
3410547003 Whirlpool Refrigerator Dryer Clip
35WPW10662129 Whirlpool Refrigerator Run Capacitor
36WPW10137529 Whirlpool Refrigerator Grommet
37WP67005149 Whirlpool Roller
3867006434 Whirlpool Axle Pin
