7GI5FSAXVY1 08 – DISPENSER FRONT PARTS

7GI5FSAXVY1 08 – DISPENSER FRONT PARTS

Written by

in

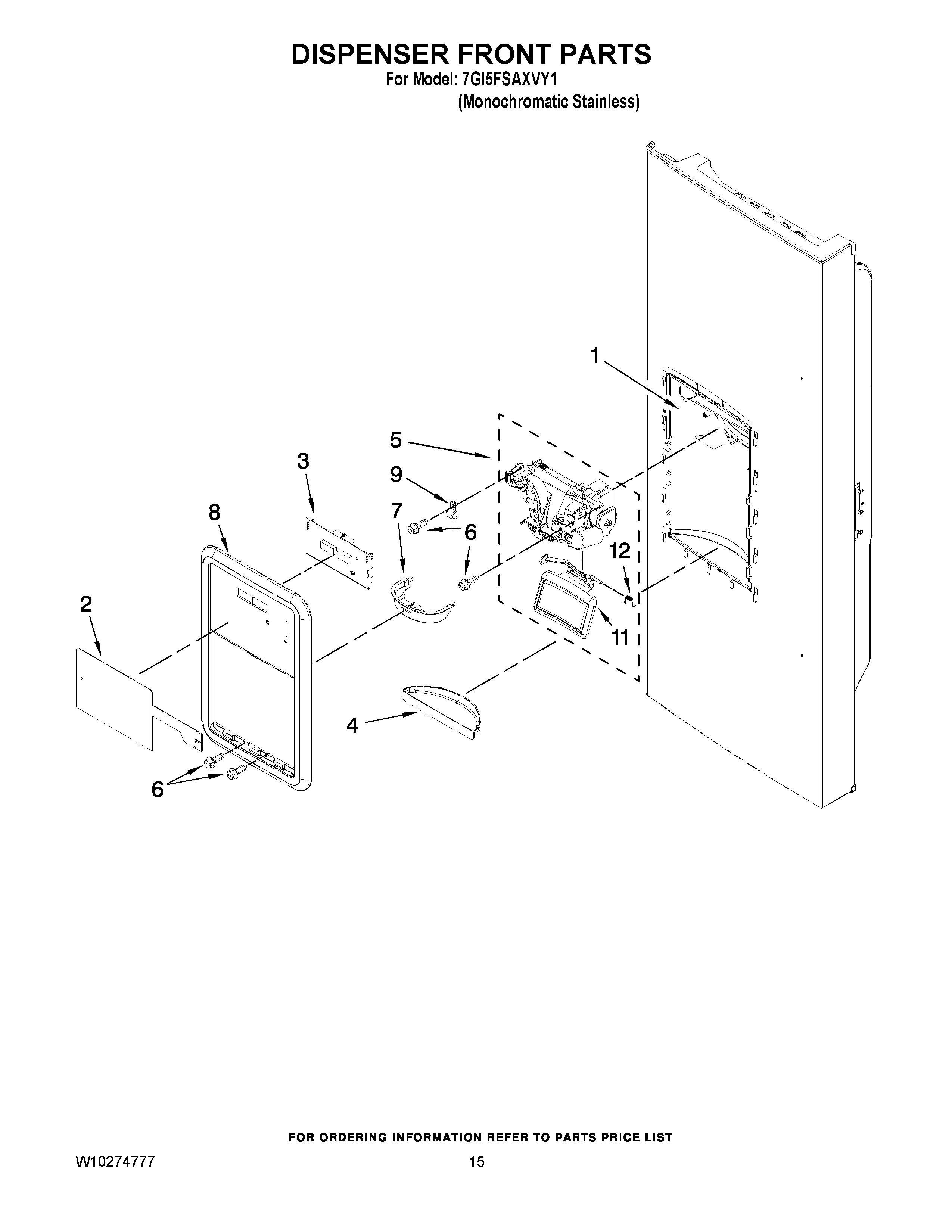

7GI5FSAXVY1 08 – DISPENSER FRONT PARTS

Products

PositionProduct
1CABINET (NOT A SERVICEABLE PART)
2W10740218 Whirlpool Refrigerator Electric Control
4W11676505 Whirlpool Drip Tray
5WP13005706 Whirlpool Refrigerator Chute
667006425 Whirlpool Refrigerator Screw
767006295 Whirlpool Refrigerator Target Ring
8WPW10310690 Whirlpool Refrigerator Cover
9M0108106 Whirlpool Refrigerator Clamp
11WPW10185234 Whirlpool Refrigerator Pad
12WP12565502 Whirlpool Refrigerator Spring
