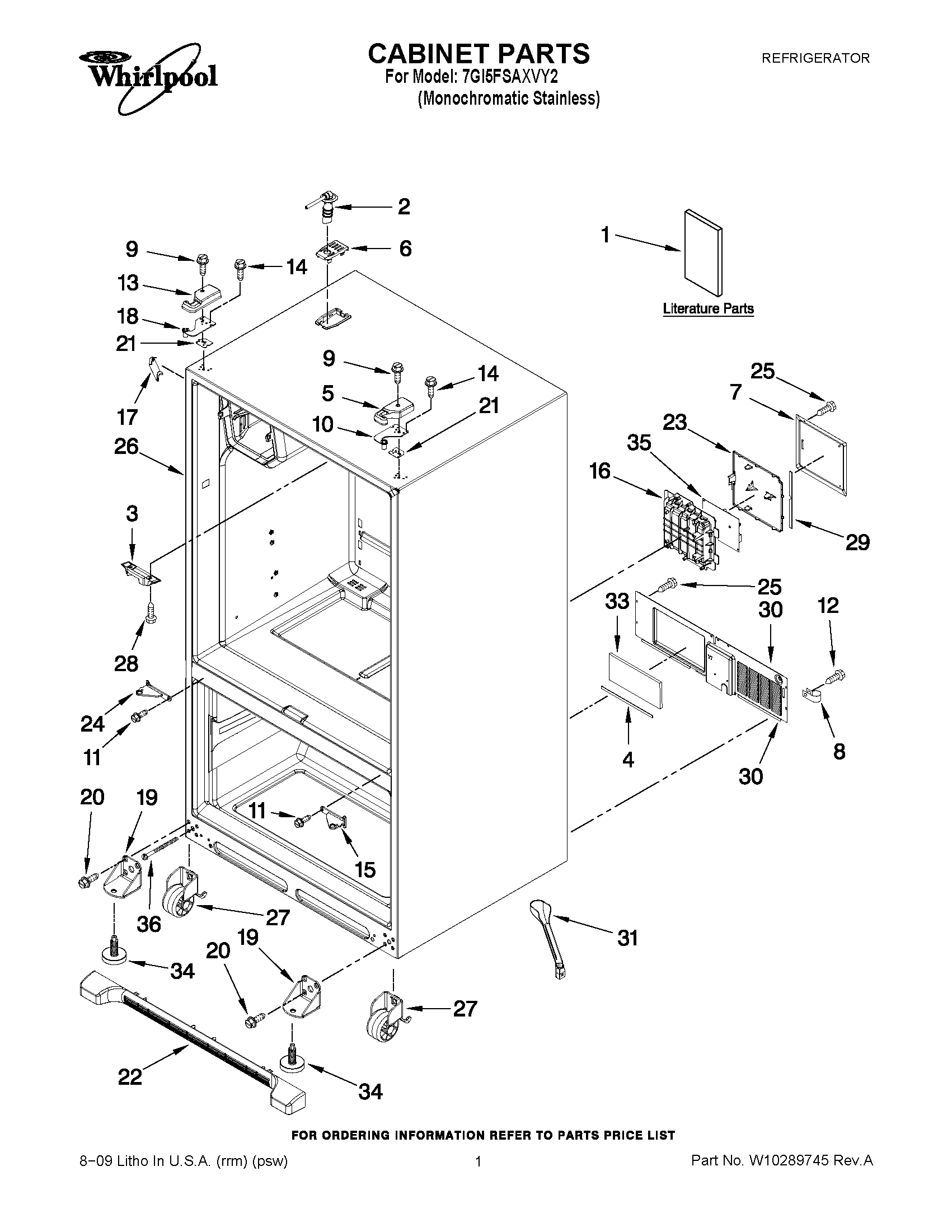

7GI5FSAXVY2 01 – CABINET PARTS

Products

Position	Product
1	USE & CARE GUIDE
1	Guide, Energy
1	TECH SHEET
2	TUBE-WATER
3	WP67003405 Whirlpool Pivot Block
4	B5759655 Whirlpool Refrigerator Gasket
5	WPW10191117 Whirlpool Refrigerator Cover
6	W10191141 Whirlpool Refrigerator Tube Cover
7	12961602 Whirlpool Refrigerator Wire Cover
8	W10833902 Whirlpool Refrigerator Clamp
9	WP8281196 Whirlpool Screw
10	W11592374 Whirlpool Refrigerator Top Door Hinge
11	WP67006380 Whirlpool Screw
12	67006425 Whirlpool Refrigerator Screw
13	WPW10337648 Whirlpool Refrigerator Cover
14	WP489349 Whirlpool Refrigerator Screw
16	WP67006390 Whirlpool Refrigerator High Voltage Box
17	WP12587703AP Whirlpool Refrigerator Filler
18	W11592375 Whirlpool Door Hinge
19	12906303WD Whirlpool Refrigerator Bracket
20	67006564 Whirlpool Refrigerator Screw
21	12999501 Whirlpool Refrigerator Hinge Shim
21	12999502 Whirlpool Refrigerator Hinge Shim
22	WPW10534155 Whirlpool Refrigerator Kickplate Grille Gray
23	LID, HV BOX
24	W10917988 Whirlpool Refrigerator Door Hinge
25	W11686675 Whirlpool Screw
26	CABINET (NOT A SERVICEABLE PART)
27	ROLLER ASSY.(REAR)
28	W10854958 Whirlpool Refrigerator Screw
29	GASKET, HV BOX
30	WPW10270394 Whirlpool Refrigerator Back Cover
31	W10619951 Whirlpool Drain Tube with Grommet
33	INSULATION, SOUND
34	W11177593 Whirlpool Leveling Feet
35	WPW10310240 Whirlpool Main Control Board + Core
36	71003131 Whirlpool Oven Screw
