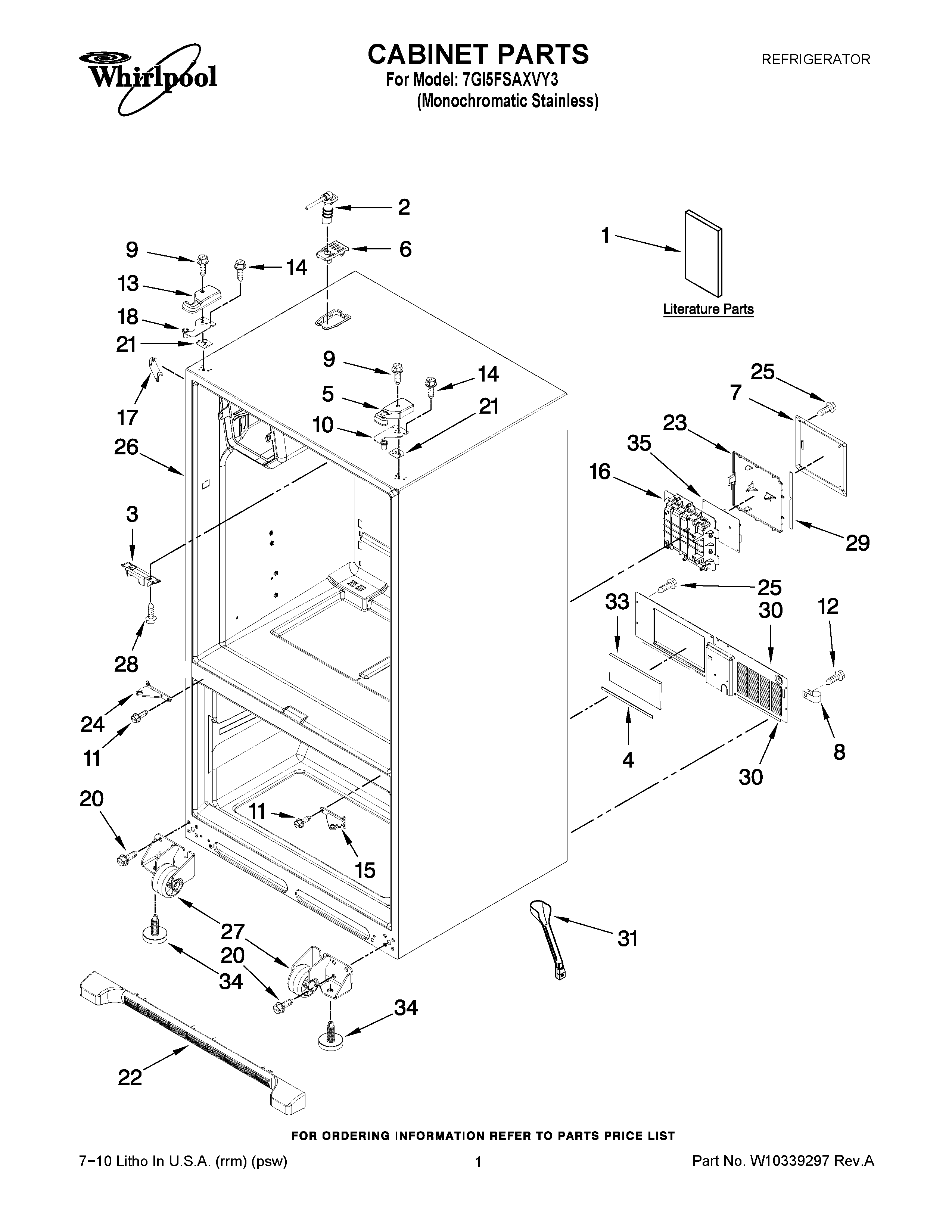

7GI5FSAXVY3 01 – CABINET PARTS

7GI5FSAXVY3 01 – CABINET PARTS

Written by

in

7GI5FSAXVY3 01 – CABINET PARTS

Products

PositionProduct
1TECH SHEET
1USE & CARE GUIDE
1Guide, Energy
2TUBE-WATER
3WP67003405 Whirlpool Pivot Block
4B5759655 Whirlpool Refrigerator Gasket
5WPW10191117 Whirlpool Refrigerator Cover
6W10191141 Whirlpool Refrigerator Tube Cover
712961602 Whirlpool Refrigerator Wire Cover
8W11456069 Whirlpool Refrigerator Clamp
9WP8281196 Whirlpool Screw
10W11592374 Whirlpool Refrigerator Top Door Hinge
11WP67006380 Whirlpool Screw
1267006425 Whirlpool Refrigerator Screw
13WPW10337648 Whirlpool Refrigerator Cover
14WP489349 Whirlpool Refrigerator Screw
16WP67006390 Whirlpool Refrigerator High Voltage Box
17WP12587703AP Whirlpool Refrigerator Filler
18W11592375 Whirlpool Door Hinge
2067006564 Whirlpool Refrigerator Screw
2112999501 Whirlpool Refrigerator Hinge Shim
2112999502 Whirlpool Refrigerator Hinge Shim
22WPW10534155 Whirlpool Refrigerator Kickplate Grille Gray
2367006428 Whirlpool Refrigerator LID, HV Control
24W10917988 Whirlpool Refrigerator Door Hinge
25W11686675 Whirlpool Screw
26CABINET (NOT A SERVICEABLE PART)
27WPW10515762 Whirlpool Refrigerator Cabinet Roller
27WPW10515763 Whirlpool Refrigerator Cabinet Roller
28W10854958 Whirlpool Refrigerator Screw
29GASKET, HV BOX
30WPW10270394 Whirlpool Refrigerator Back Cover
31W10619951 Whirlpool Drain Tube with Grommet
33INSULATION, SOUND
34WPW10141622 Whirlpool Leveler
35WPW10310240 Whirlpool Main Control Board + Core
