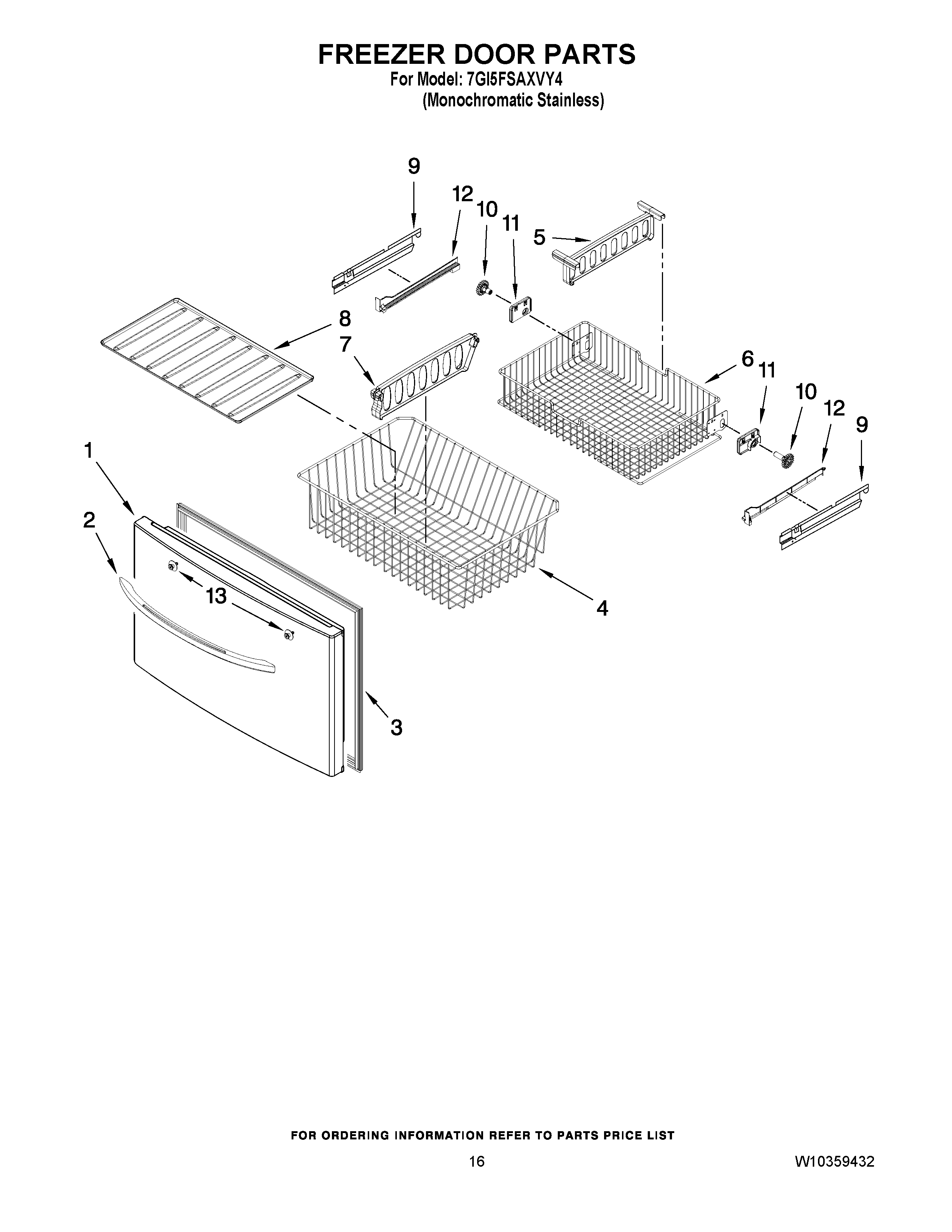

7GI5FSAXVY4 09 – FREEZER DOOR PARTS

7GI5FSAXVY4 09 – FREEZER DOOR PARTS

Written by

in

7GI5FSAXVY4 09 – FREEZER DOOR PARTS

Products

PositionProduct
1FREEZER DOOR (STAINLESS)
2WPW10223025K Whirlpool Refrigerator Handle
3GASKET-FIP
4Basket, Freezer (Lower)
5W10146439 Whirlpool Refrigerator Divider
6W11218042 Whirlpool Refrigerator Freezer Basket
7W10847995 Whirlpool Divider Assembly
8Tray, Lower Basket
9WPW10280608 Whirlpool Refrigerator Bracket
9WPW10280613 Whirlpool Refrigerator Bracket
10WPW10474716 Whirlpool Refrigerator Gear
10WPW10474715 Whirlpool Refrigerator Gear
11W10348260 Whirlpool Refrigerator Bracket
11W10348259 Whirlpool Refrigerator Bracket Assembly
12W11489994 Whirlpool Refrigerator Rail
12W11489993 Whirlpool Refrigerator Rail
13WP12992902 Whirlpool Refrigerator Screw
