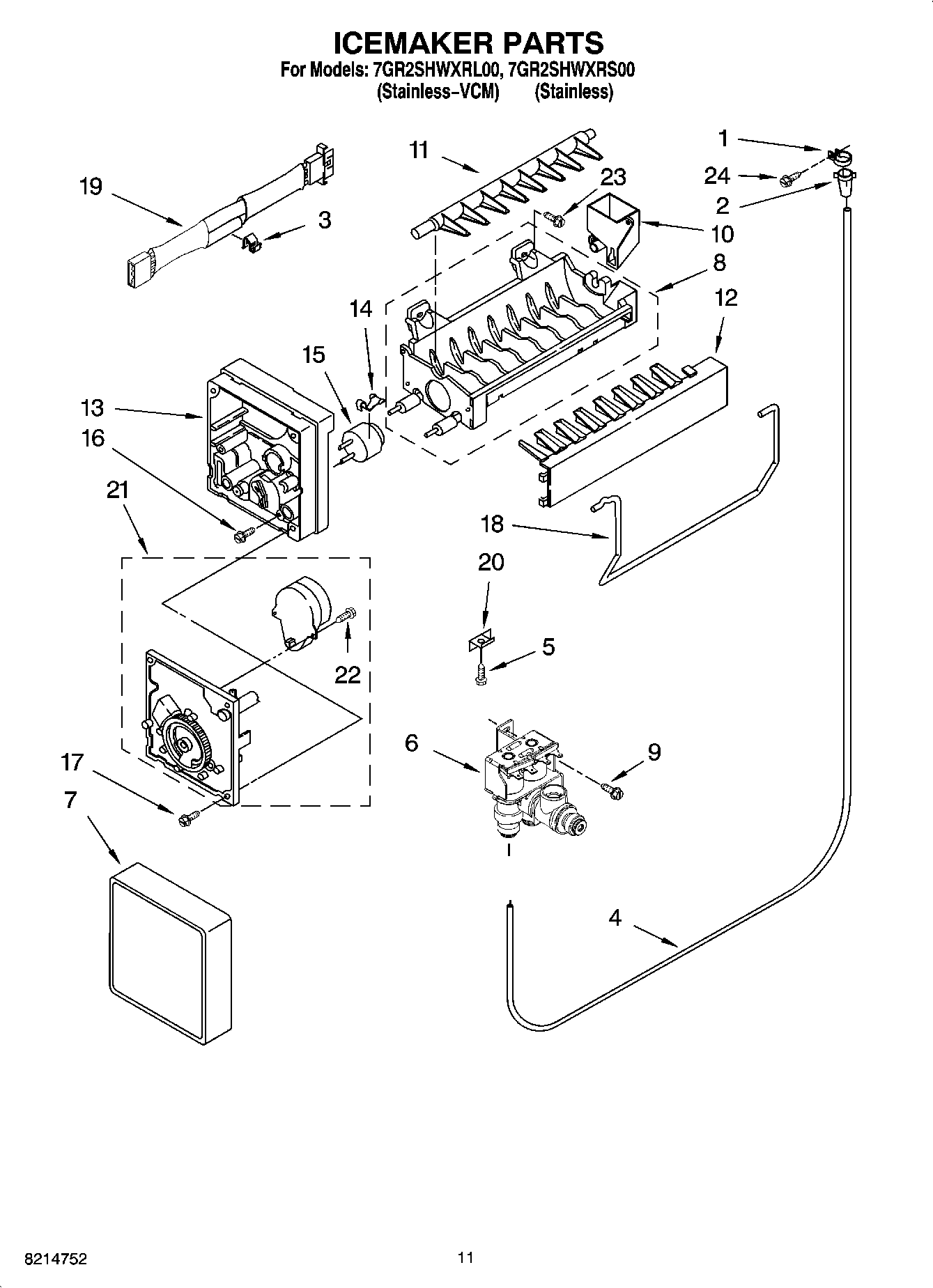

7GR2SHWXRS00 06 – ICEMAKER PARTS

Products

Position	Product
1	WP488878 Whirlpool Refrigerator Tube Clamp
2	4387491 Whirlpool Refrigerator Insert
3	WP628379 Whirlpool Refrigerator Clip
4	W10823511 Whirlpool Refrigerator Water Tube
5	WP489478 Whirlpool Refrigerator Screw
6	WP2188808 Whirlpool Refrigerator Inlet Valve
7	WPW10289690 Whirlpool Ice Maker Cover
8	WPW10190929 Whirlpool Refrigerator Ice Maker Mold
9	WP489442 Whirlpool Refrigerator Screw
10	WP628356 Whirlpool Refrigerator Fill Cup
11	WP627843 Whirlpool Refrigerator Ejector Arm
12	WP2182124 Whirlpool Refrigerator Stripper Arm
13	WP2195914 Whirlpool Refrigerator Ice Maker Housing
14	WP2315522 Whirlpool Refrigerator Clip
15	WP627985 Whirlpool Icemaker Cycling Thermostat
16	8533917 Whirlpool Refrigerator Screw
17	WP681249 Whirlpool Screw Assembly
18	WP627792 Whirlpool Refrigerator Shut Off Arm
19	WP2187464 Whirlpool Refrigerator Wire Harness
20	W11500948 Whirlpool Refrigerator Bracket
21	W10190935 Whirlpool Refrigerator Icemaker Motor Module Assembly
22	489136 Whirlpool Refrigerator Screw
23	WP488163 Whirlpool Refrigerator Screw
24	WP488787 Whirlpool Refrigerator Screw
99	4317943 Whirlpool Refrigerator Ice Maker Assembly
