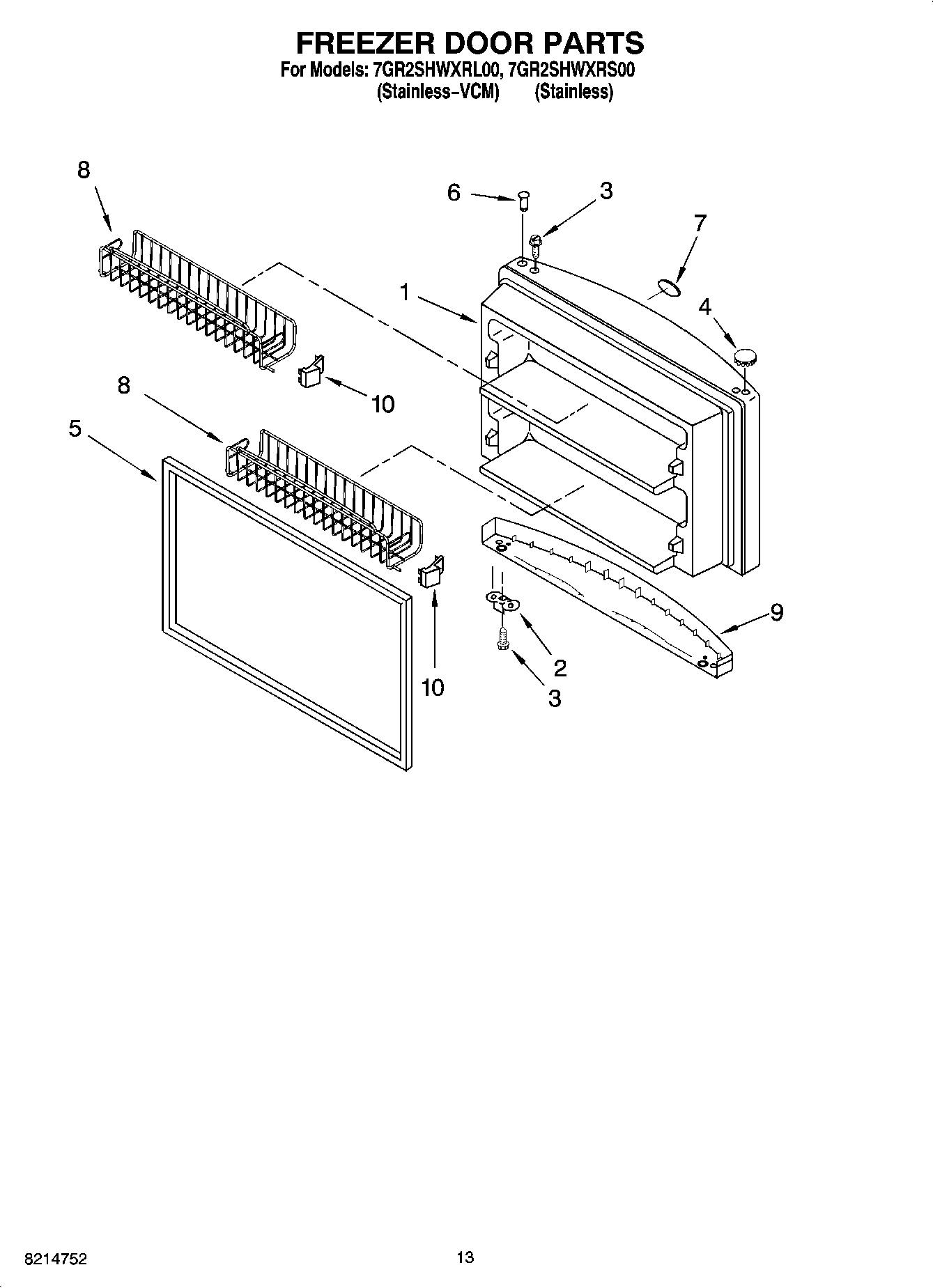

7GR2SHWXRS00 07 – FREEZER DOOR PARTS

7GR2SHWXRS00 07 – FREEZER DOOR PARTS

Written by

in

7GR2SHWXRS00 07 – FREEZER DOOR PARTS

Products

PositionProduct
1Freezer Door (Includes No.8& No.12) (Stainless, Brushed)
1Freezer Door (Includes Illus. 6 & 7) (Stainless VCM)
2W11745278 Whirlpool Bracket
3WP681249 Whirlpool Screw Assembly
4WP2212651 Whirlpool Refrigerator Button Plug
52177310 Whirlpool Refrigerator Door Gasket
6WP2183003 Whirlpool Thimble
7Nameplate
8BASKET, DOOR (2)
9Endcap, Handle (Black)
10ENDCAP, BSKT.(L)
10ENDCAP, BSKT.(R)
