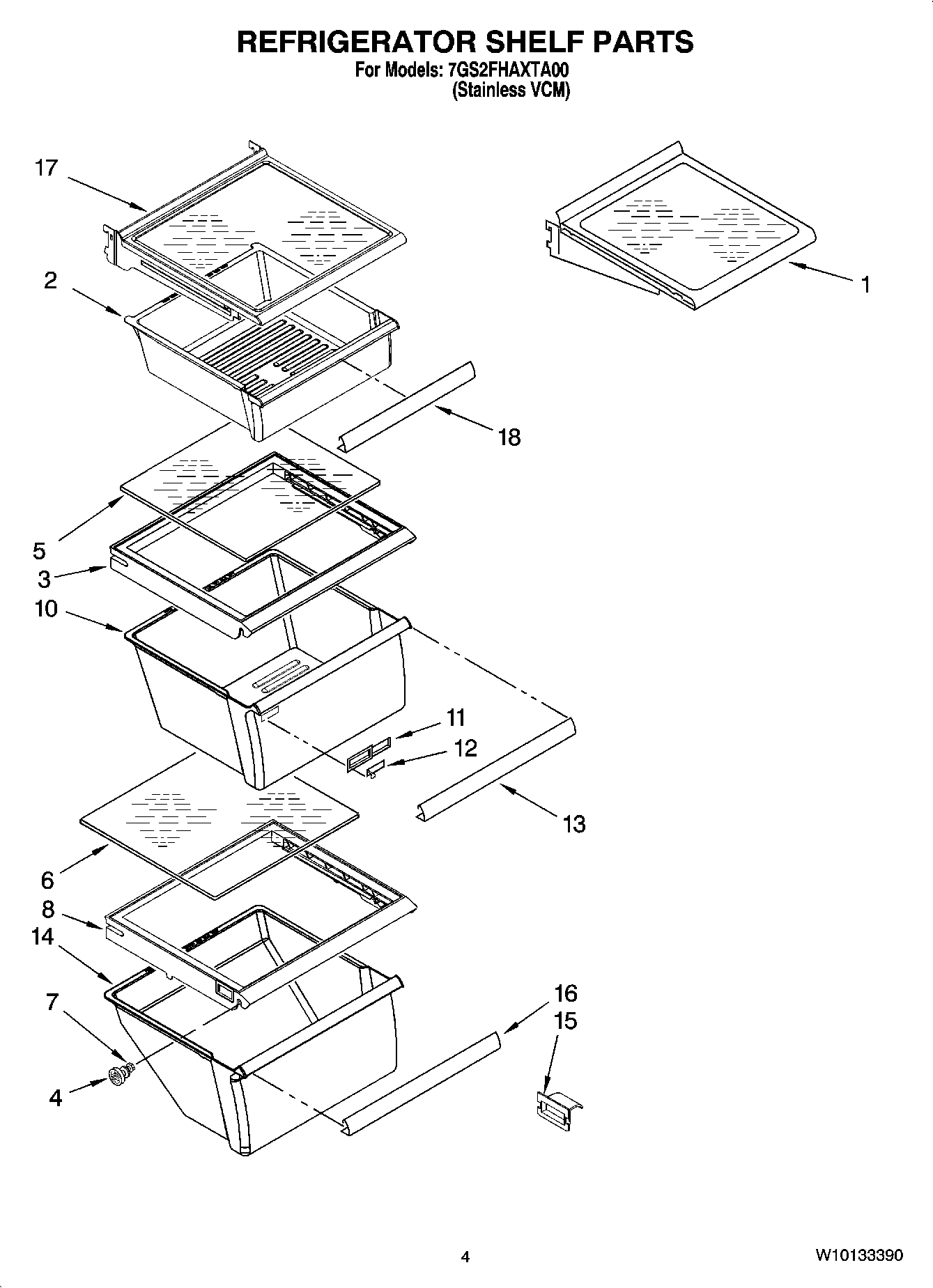

7GS2FHAXTA00 03 – REFRIGERATOR SHELF PARTS

7GS2FHAXTA00 03 – REFRIGERATOR SHELF PARTS

Written by

in

7GS2FHAXTA00 03 – REFRIGERATOR SHELF PARTS

Products

PositionProduct
1Shelf, Cantilever (2)
2W11497323 Whirlpool Snack Pan
3W10508993 Whirlpool Refrigerator Cover Pan
4W11223328 Whirlpool Refrigerator Shelf Stud
5W10864399 Whirlpool Glass Shelf
7WP3-24004-109 Whirlpool Refrigerator Screw
10PAN-CRISPR
11WP2179343 Whirlpool Refrigerator Control Body
12WP2179342 Whirlpool Refrigerator Slide
14WP2188664 Whirlpool Dishwasher Meat Crisper Pan
152179350 Whirlpool Refrigerator Deflector
16WP2179234 Whirlpool Refrigerator Pan Trim
17Shelf, Snack Bin
18WP2179243 Whirlpool Refrigerator Pan Trim
