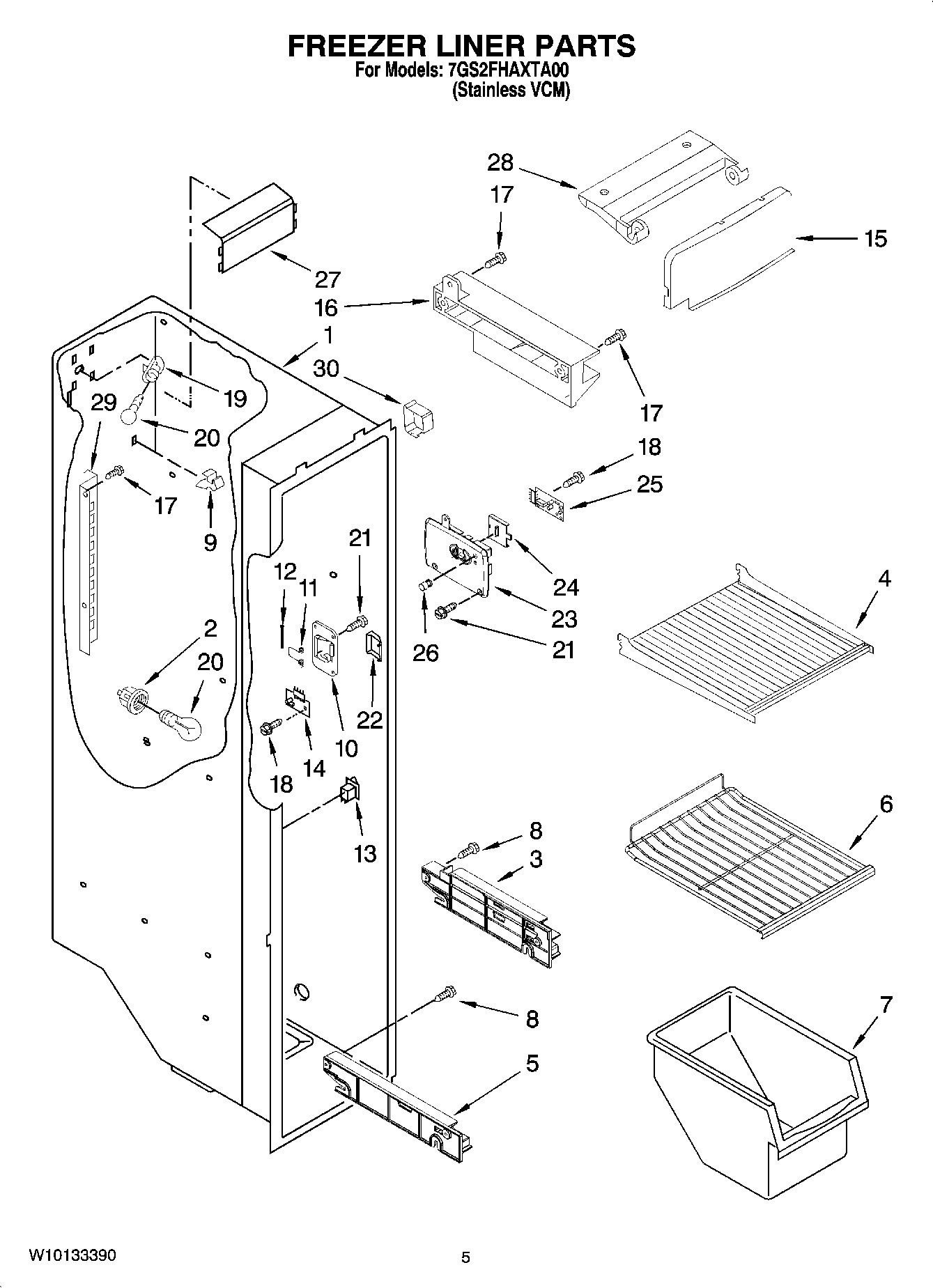

7GS2FHAXTA00 04 – FREEZER LINER PARTS

Products

Position	Product
1	Liner (Not A Seviceable Part)
2	SOCKET
3	2301292 Whirlpool Refrigerator Track
3	2301291 Whirlpool Refrigerator Track
4	Shelf, Slide Out Lower (2)
5	Shelf Track (Left Side)
5	Shelf Track (Right Side)
6	Shelf (2)
7	Bin, Freezer
8	W10759522 Whirlpool Screw
9	2215823 Whirlpool Refrigerator Clip
10	WP2198587 Whirlpool Refrigerator Cover
11	WP2198635 Whirlpool Refrigerator Spring
12	WP2198634 Whirlpool Door Pin
13	W11457217 Whirlpool Refrigerator Rocker Switch Combination
14	W10757851-includeCORE Whirlpool Electronic Control+Core
15	Cover, Icemaker
16	Slide, Ice Maker
17	WP489478 Whirlpool Refrigerator Screw
18	2006254 Whirlpool Refrigerator Screw
19	4387478 Whirlpool Refrigerator Light Socket
20	RANGE ONLY 40W 120V APPL BULB
21	WPW10142283 Whirlpool Refrigerator Screw
22	WP2198633 Whirlpool Refrigerator Flipper
23	Cover, Receiver
24	2315398 Whirlpool Refrigerator Slide
26	WP2198643 Whirlpool Refrigerator Lens
27	2212376 Whirlpool Light Lens
28	WP2198641 Whirlpool Refrigerator Ice Maker Cover Bracket
29	Ladder (Left Side)
29	Ladder (Right Side)
30	Shield, Wiring
