7GS2FHAXTA00 07 – FREEZER DOOR PARTS

7GS2FHAXTA00 07 – FREEZER DOOR PARTS

Written by

in

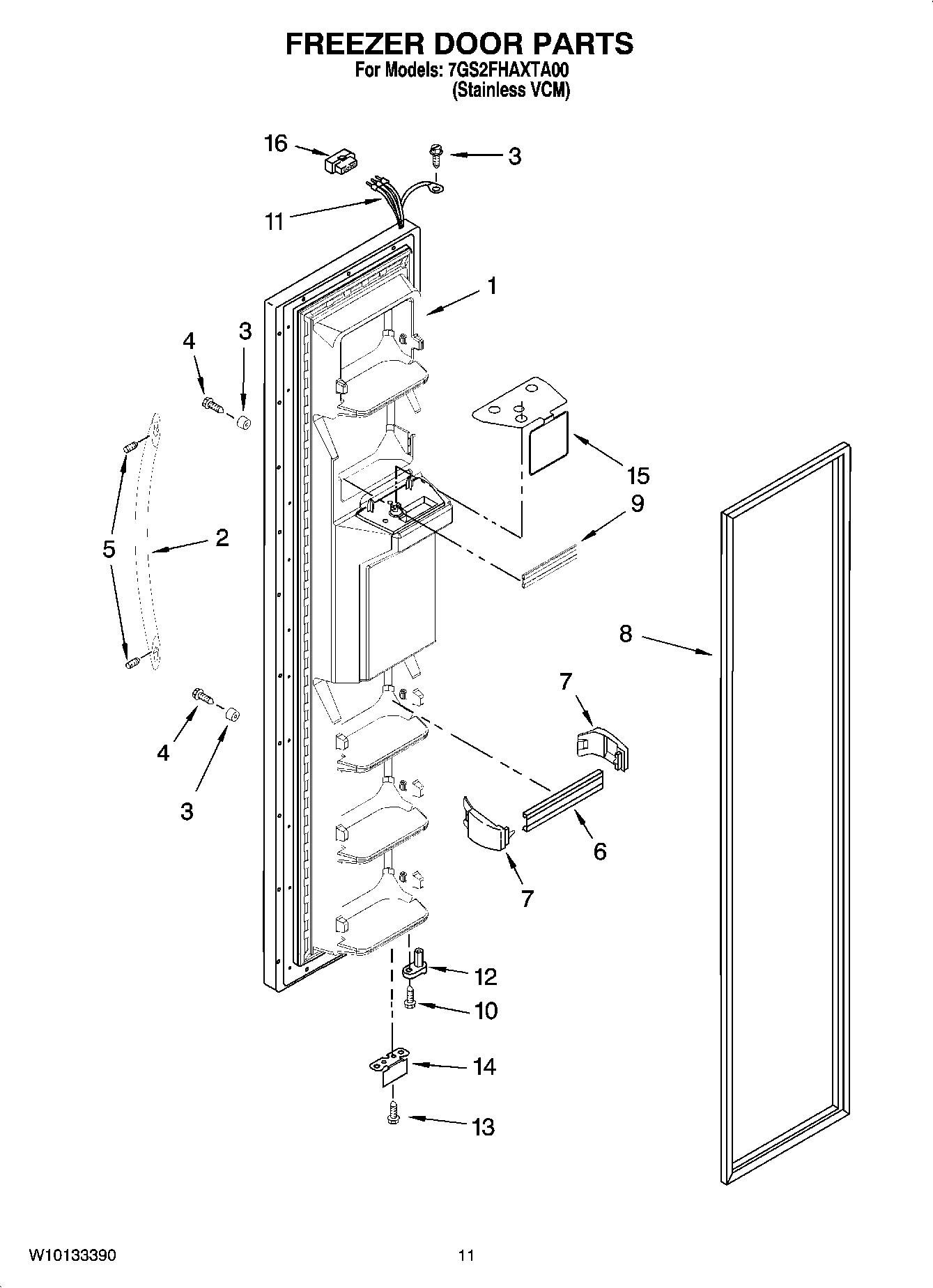

7GS2FHAXTA00 07 – FREEZER DOOR PARTS

Products

PositionProduct
1Freezer Door (Includes Item 8 And Dispenser Front Parts) (Stainless VCM)
2Handle (Stainless)
3WPW10170540 Whirlpool Screw
4WP488163 Whirlpool Refrigerator Screw
5SCREW
6Trim, Door (3)
7WP2195917K Whirlpool Refrigerator Endcap
82159072 Whirlpool Refrigerator FIP Gasket
9WPW10307490 Whirlpool Door Trim Assembly
10WP3400012 Whirlpool Refrigerator Screw
11W10683539 Whirlpool Refrigerator Dispensing Harness
12WP2182179 Whirlpool Cam Closer
13WP489483 Whirlpool Screw
14Bracket, Door Stop
15Safety Barrier
16WP2154473 Whirlpool Refrigerator Connector
