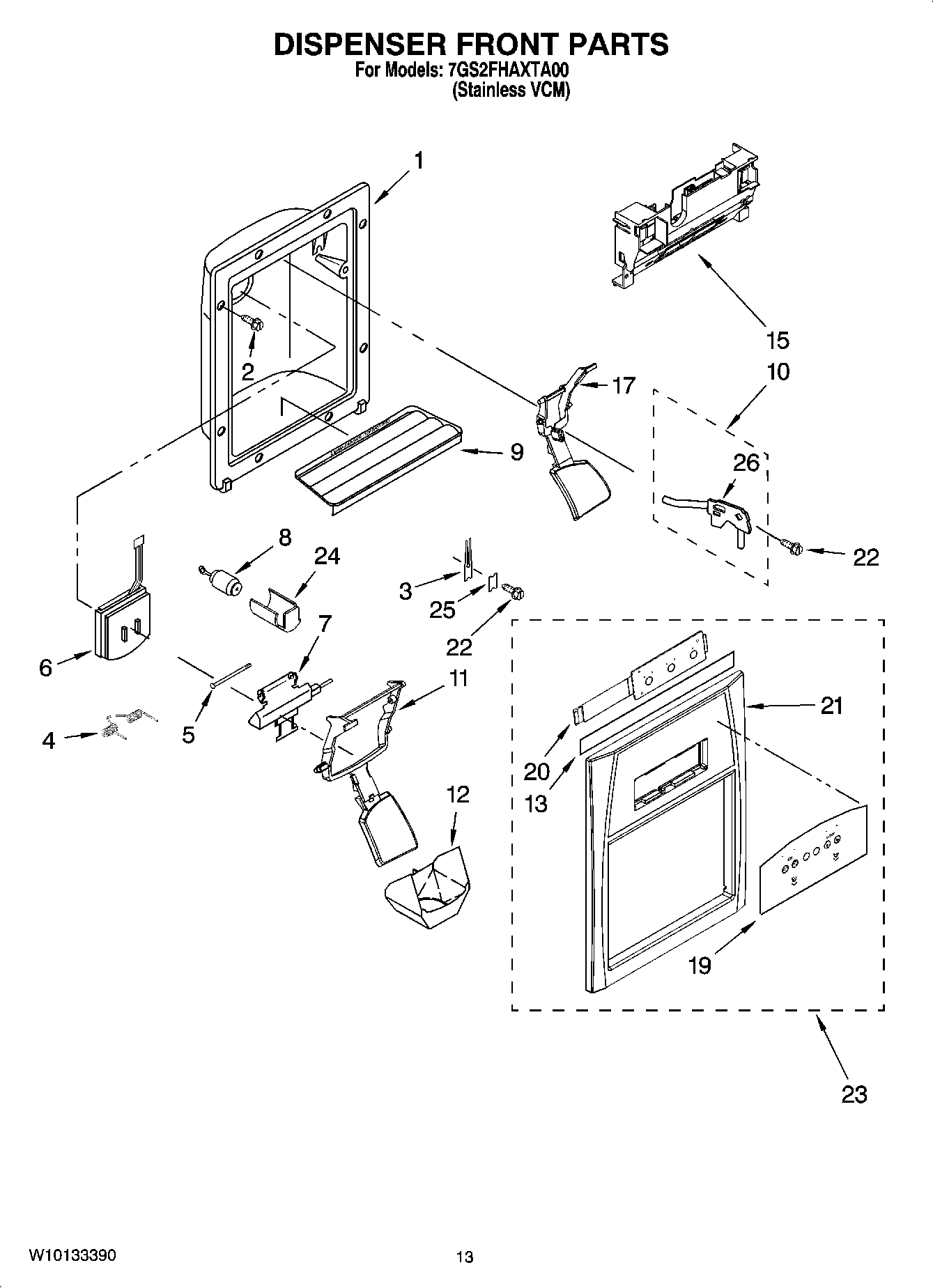

7GS2FHAXTA00 08 – DISPENSER FRONT PARTS

Products

Position	Product
1	Housing Dispenser (Not Serviced)
2	WP3196557 Whirlpool Screw
3	WP2194719 Whirlpool Refrigerator Clip
4	WPW10224328 Whirlpool Refrigerator Spring
5	WP2196195 Whirlpool Refrigerator Door Pin
6	WP2180353 Whirlpool Dispenser Door
7	Door Mechanism Assembly
8	Delay Mechanism
9	Grille, Overflow (Apollo Gray)
10	8201537 Whirlpool Water Tubing Assembly
11	Lever, Ice Dispenser (Apollo Gray)
12	WP2180224 Whirlpool Dispenser Funnel Guide
13	2305571 Whirlpool Gasket Assembly
15	Bracket, Control
17	WP2255432AP Whirlpool Refrigerator Dispenser Arm
19	Overlay, Front Cover (Not Available, Order 23)
20	LED Display
21	Front Cover, Housing (Not Available Order 23)
22	WP3400906 Whirlpool Refrigerator Screw
23	Front Cover Assembly (Includes Items 19, 20 & 21) (Apollo Grey)
24	Sleeve, Delay Mechanism
25	WP2195051 Whirlpool Refrigerator Clip
26	WP2304673 Whirlpool Refrigerator Bracket
