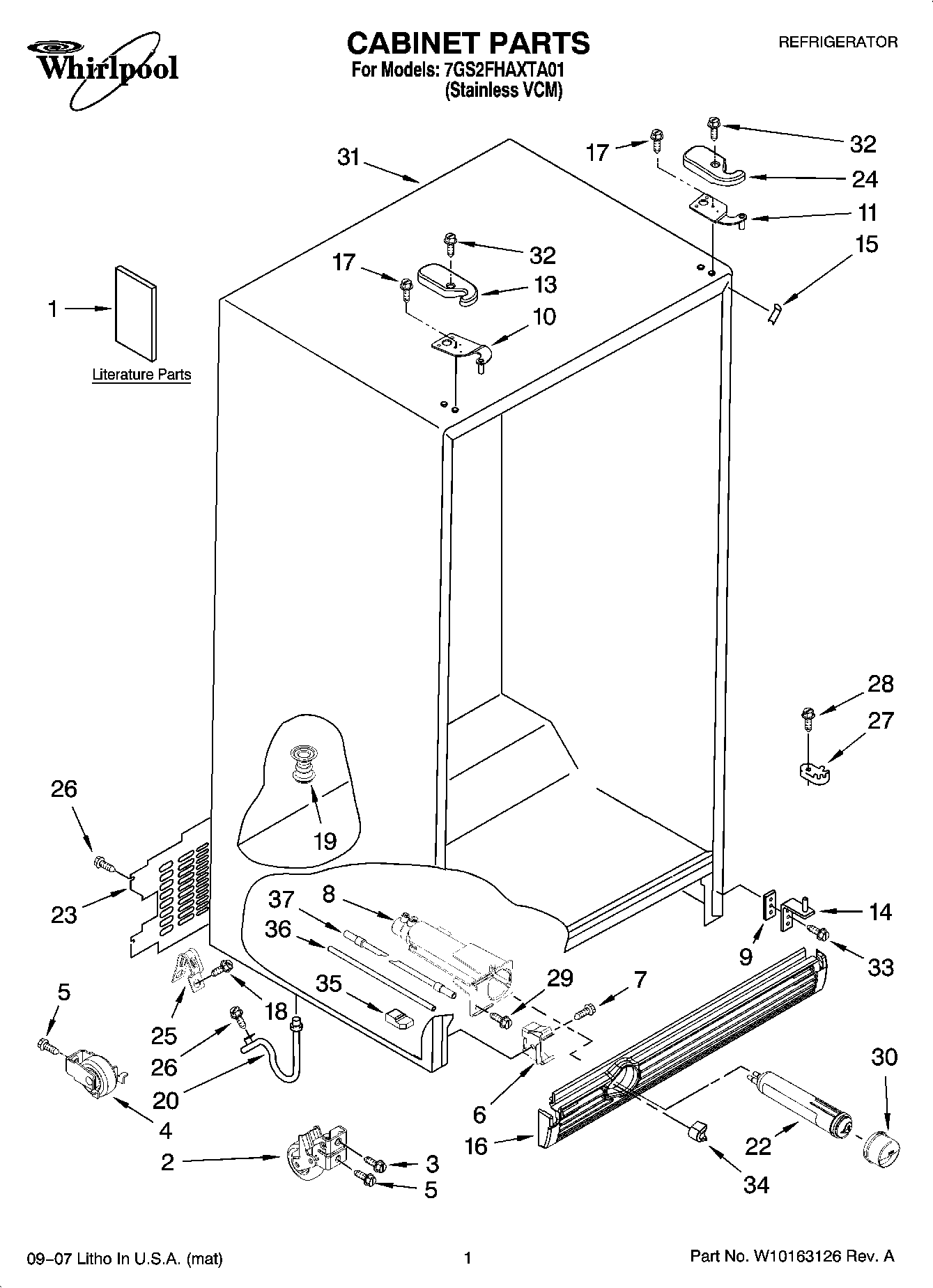

7GS2FHAXTA01 01 – CABINET PARTS

Products

Position	Product
1	INSTRUCTION SHEET (DOOR REMOVAL)
1	Energy Guide
1	Use & Care Guide
1	Service & Wiring Sheet
1	Modular Icemaker Service Sheet
2	Front Roller (2)
3	W10850698 Whirlpool Refrigerator Screw
4	WPW10250570 Whirlpool Refrigerator Cabinet Roller
5	WP489427 Whirlpool Refrigerator Screw
6	WP2155013 Whirlpool Refrigerator Clip
7	WP489478 Whirlpool Refrigerator Screw
8	WPW10121138 Whirlpool Refrigerator Water Filter Housing
9	WP2209697 Whirlpool Refrigerator Shim
10	WP2203770 Whirlpool Refrigerator Door Hinge
11	WP2203771 Whirlpool Refrigerator Door Hinge
13	2203407AP Whirlpool Refrigerator Cover
14	8201707 Whirlpool Door Hinge
15	Filler, Wrapper (Apollo Grey)
16	Grille (Apollo Gray)
18	WP489464 Whirlpool Refrigerator Screw
19	W11566763 Whirlpool Fitting
20	Extension Tube
22	FILTER 3-SINGLE TEAL
23	COVER, UNIT
24	2203408AP Whirlpool Refrigerator Cover
25	489348 Whirlpool Refrigerator Tube Clamp
27	WPW10329686 Whirlpool Door Cam Black
28	WP489483 Whirlpool Screw
29	WP489500 Whirlpool Refrigerator Screw
30	WP2260518AP Whirlpool Filter Cap Assembly
31	Cabinet, (Not A Serviceable Part)
32	WP8281227 Whirlpool Screw
33	WP489497 Whirlpool Screw
34	Button, Water
35	Block, Housing Support
36	WPW10350006 Whirlpool Refrigerator Water Tube
37	8201597 Whirlpool Inlet Water Fill Tube Kit Filter
