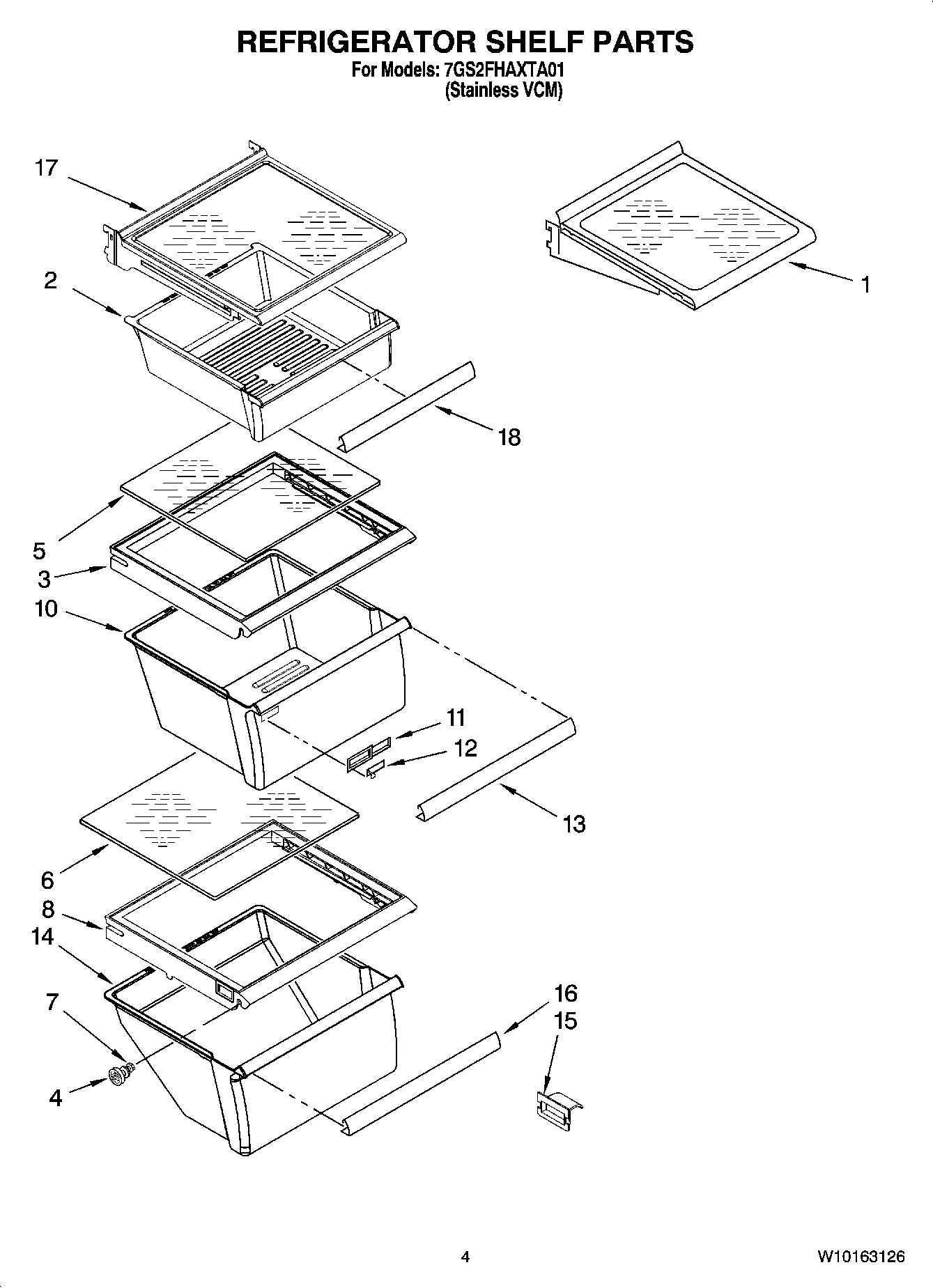

7GS2FHAXTA01 03 – REFRIGERATOR SHELF PARTS

Written by

Products

Position	Product
1	Shelf, Cantilever (2)
2	W11497323 Whirlpool Snack Pan
3	W10508993 Whirlpool Refrigerator Cover Pan
4	W11223328 Whirlpool Refrigerator Shelf Stud
5	W10864399 Whirlpool Glass Shelf
7	WP3-24004-109 Whirlpool Refrigerator Screw
10	PAN-CRISPR
11	WP2179343 Whirlpool Refrigerator Control Body
12	WP2179342 Whirlpool Refrigerator Slide
14	WP2188664 Whirlpool Dishwasher Meat Crisper Pan
15	2179350 Whirlpool Refrigerator Deflector
16	WP2179234 Whirlpool Refrigerator Pan Trim
17	Shelf, Snack Bin
18	WP2179243 Whirlpool Refrigerator Pan Trim
