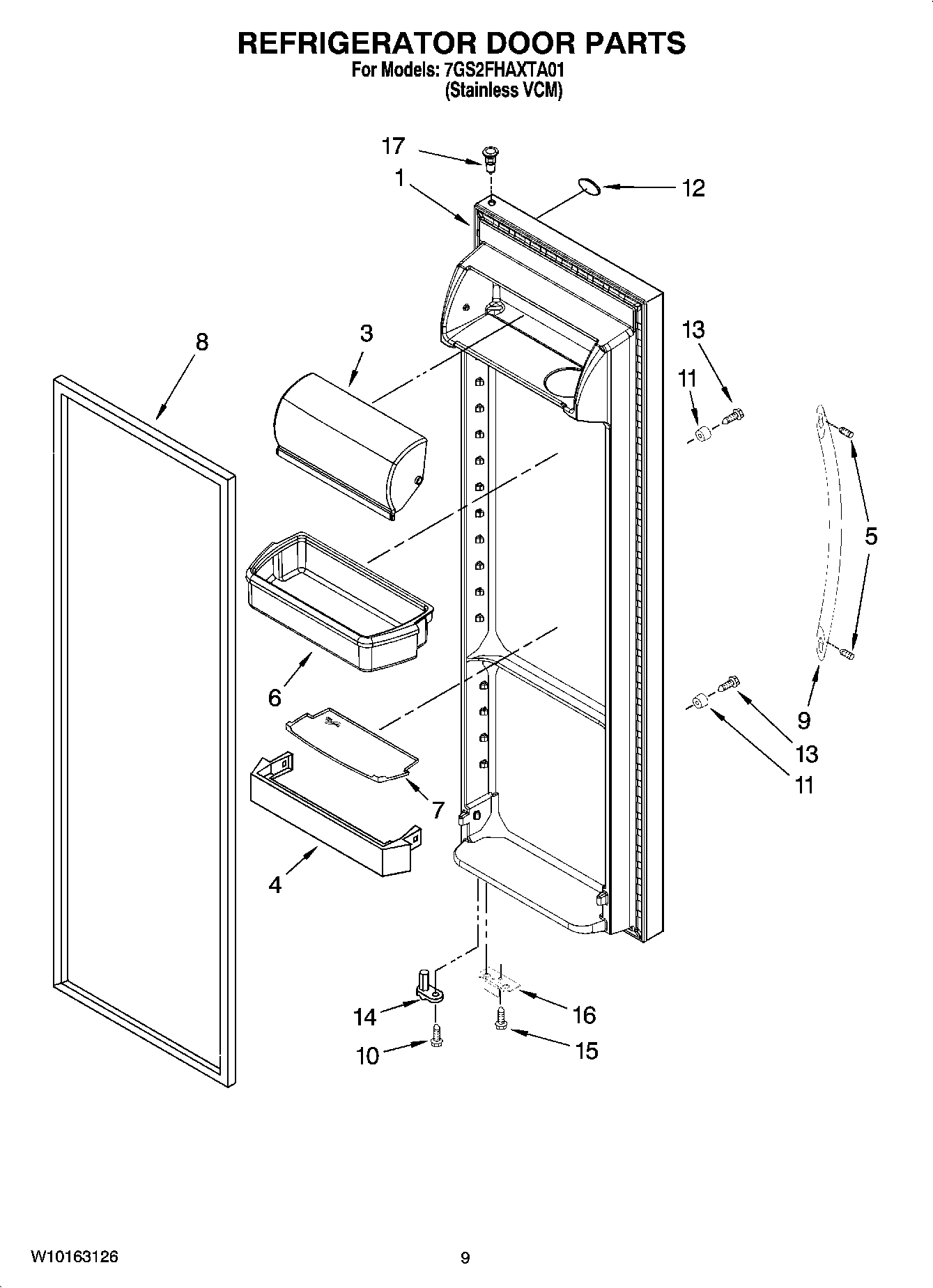

7GS2FHAXTA01 06 – REFRIGERATOR DOOR PARTS

Products

PositionProduct
1Refrigerator Door (Includes Item 8) (Stainless VCM)
3WP2256101 Whirlpool Dairy Door
4WP2156022 Whirlpool Refrigerator Door Trim
5SCREW
6Door Bin (3)
7Mat, Bin (2)
8W10136732 Whirlpool Refrigerator FIP Gasket
9Handle (Stainless)
10WP3400012 Whirlpool Refrigerator Screw
11WPW10170540 Whirlpool Screw
12Nameplate
13WP488163 Whirlpool Refrigerator Screw
14WP2182179 Whirlpool Cam Closer
15WP489483 Whirlpool Screw
16Bracket, Door Stop
17WP2182181 Whirlpool Refrigerator Thimble
