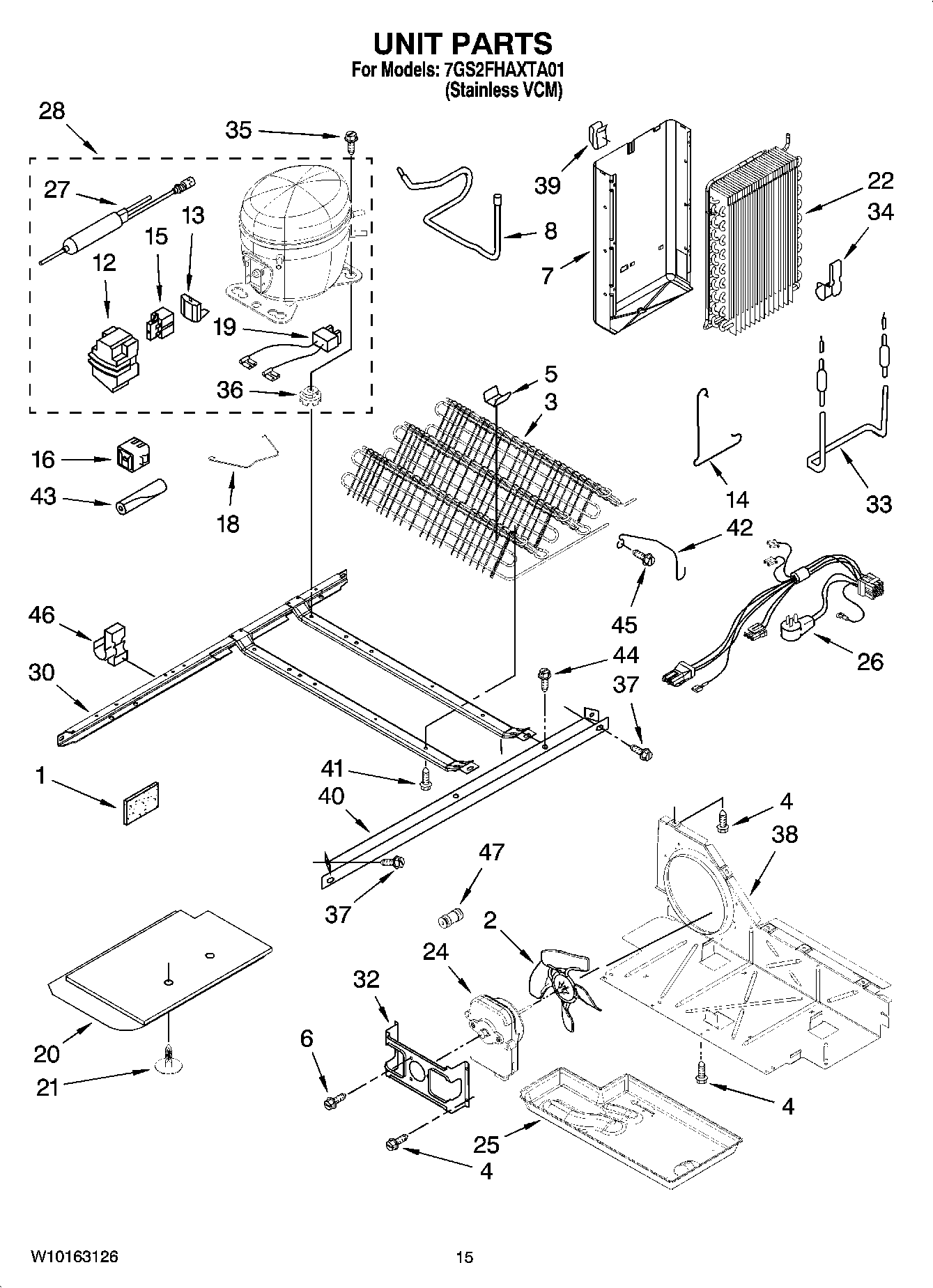

7GS2FHAXTA01 09 – UNIT PARTS
Written by
in
7GS2FHAXTA01 09 – UNIT PARTS
Products
Position
Product
876764 Whirlpool Refrigerator Primary Valve
REFRIGERANT CHARGE 5.0 oz. (R-134)
VALVE, ACCESS (1/2“)
WP978025 Whirlpool Refrigerator Valve
978030 Whirlpool Refrigerator Valve
978027 Whirlpool Refrigerator Primary Valve
978026 Whirlpool Refrigerator Primary Valve
Following Parts Not Illustrated and Optional Parts Not Included
VALVE, ACCESS (5/8“)
1
W11553819 Whirlpool Refrigerator Insulation
2
W11458267 Whirlpool Refrigerator Fan Blade
3
2324712 Whirlpool Refrigerator Condenser
4
WP489464 Whirlpool Refrigerator Screw
5
W10683556 Whirlpool Refrigerator Clip
6
WP8533993 Whirlpool Refrigerator Screw
7
2217195 Whirlpool Refrigerator Shield
8
2205764 Whirlpool Refrigerator Tube
12
WP2162358 Whirlpool Refrigerator Terminal Cover
13
WP2187145 Whirlpool Refrigerator Overload
14
Clamp
15
W10920279 Whirlpool Refrigerator Start Relay
16
W10896198 Whirlpool Refrigerator Start Device
18
2223313 Whirlpool Clip
19
WPW10662129 Whirlpool Refrigerator Run Capacitor
20
W11115203 Whirlpool Control Panel
21
489396 Whirlpool Refrigerator Clip
22
WP2188822 Whirlpool Refrigerator Evaporator
24
WP2188874 Whirlpool Refrigerator Condenser Motor
25
WPW10614158 Whirlpool Refrigerator Evaporator Tray
26
WP2187605 Whirlpool Wire Harness
27
W10843121 Whirlpool Refrigerator Tube
27
WPW10143759 Whirlpool Dryer Filter
28
W10139462 Whirlpool Refrigerator Compressor
30
2304903 Whirlpool Refrigerator Frame
32
WP2181929 Whirlpool Refrigerator Bracket
33
WP2323197 Whirlpool Refrigerator Heater
34
W11623163 Whirlpool Refrigerator Clip
36
WP4387558 Whirlpool Refrigerator Compressor Grommet
36
876811 Whirlpool Grommet
37
489340 Whirlpool Refrigerator Screw
38
W10896764 Whirlpool Refrigerator Air Baffle
39
Clip, Heat Shield
40
Unit Mounting Rail
41
W11544659 Whirlpool Refrigerator Screw
42
Guard, Fan
43
SLEEVE
44
WP489427 Whirlpool Refrigerator Screw
45
WP489478 Whirlpool Refrigerator Screw
46
Clip, Wire & Tube
47
WPW10334458 Whirlpool Refrigerator Connector
←
