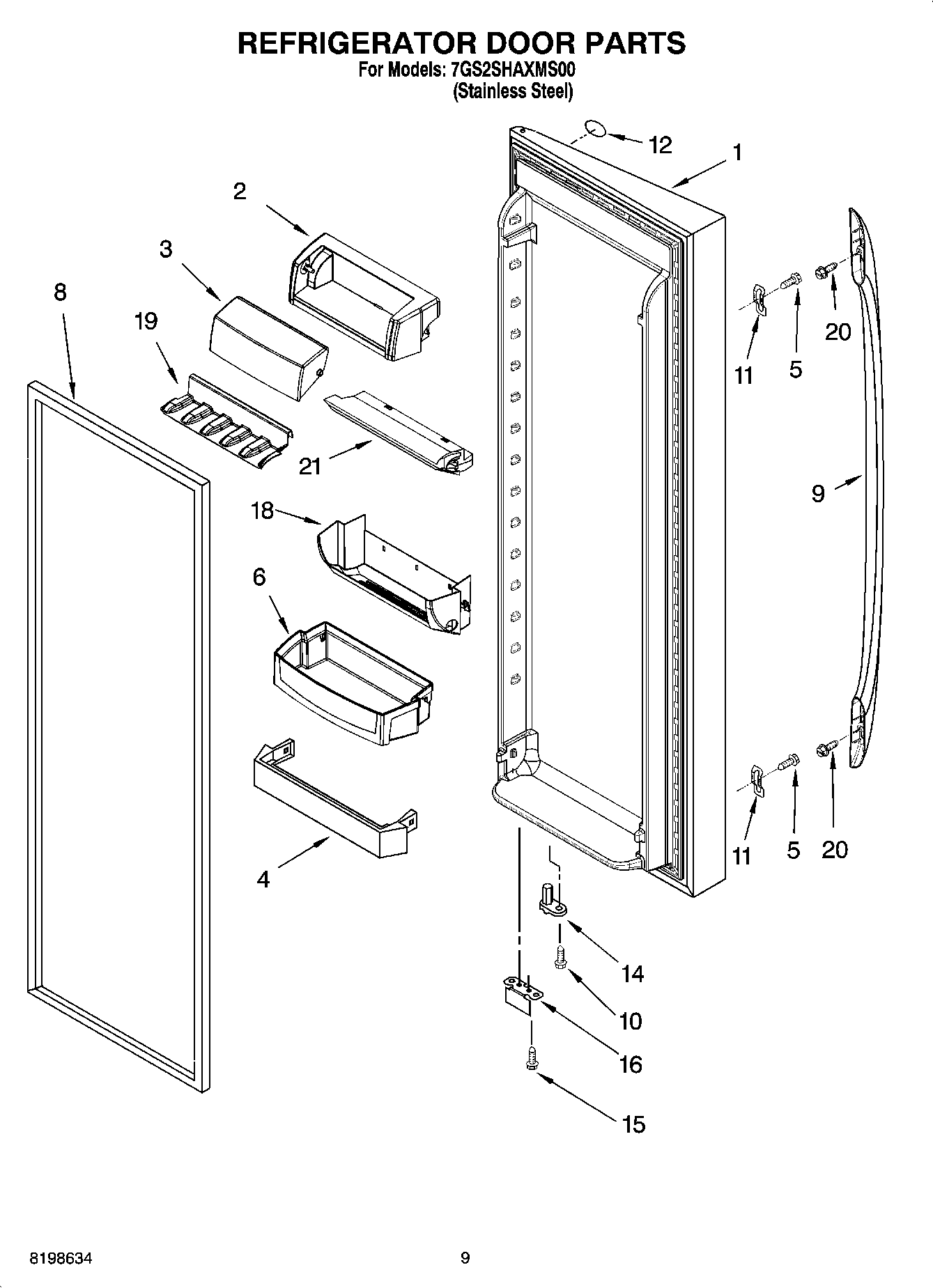

7GS2SHAXMS00 06 – REFRIGERATOR DOOR PARTS

Products

Position	Product
1	Refrigerator Door (Includes Item 8) (Stainless Steel)
2	Door Compartment
3	Dairy Door
4	WP2318736 Whirlpool Refrigerator Door Trim
5	WP489491 Whirlpool Refrigerator Screw
6	Door Bin (3)
8	2159081 Whirlpool Refrigerator Door Gasket
9	Handle, Center (Black)
10	WP3400012 Whirlpool Refrigerator Screw
11	WP2255411 Whirlpool Refrigerator Clip
12	Nameplate
14	WP2182179 Whirlpool Cam Closer
15	WP489483 Whirlpool Screw
16	Bracket, Door Stop
18	Frame, Can Rack
19	Floor, Can Rack
20	SCREW
21	Air Diffuser Asm
