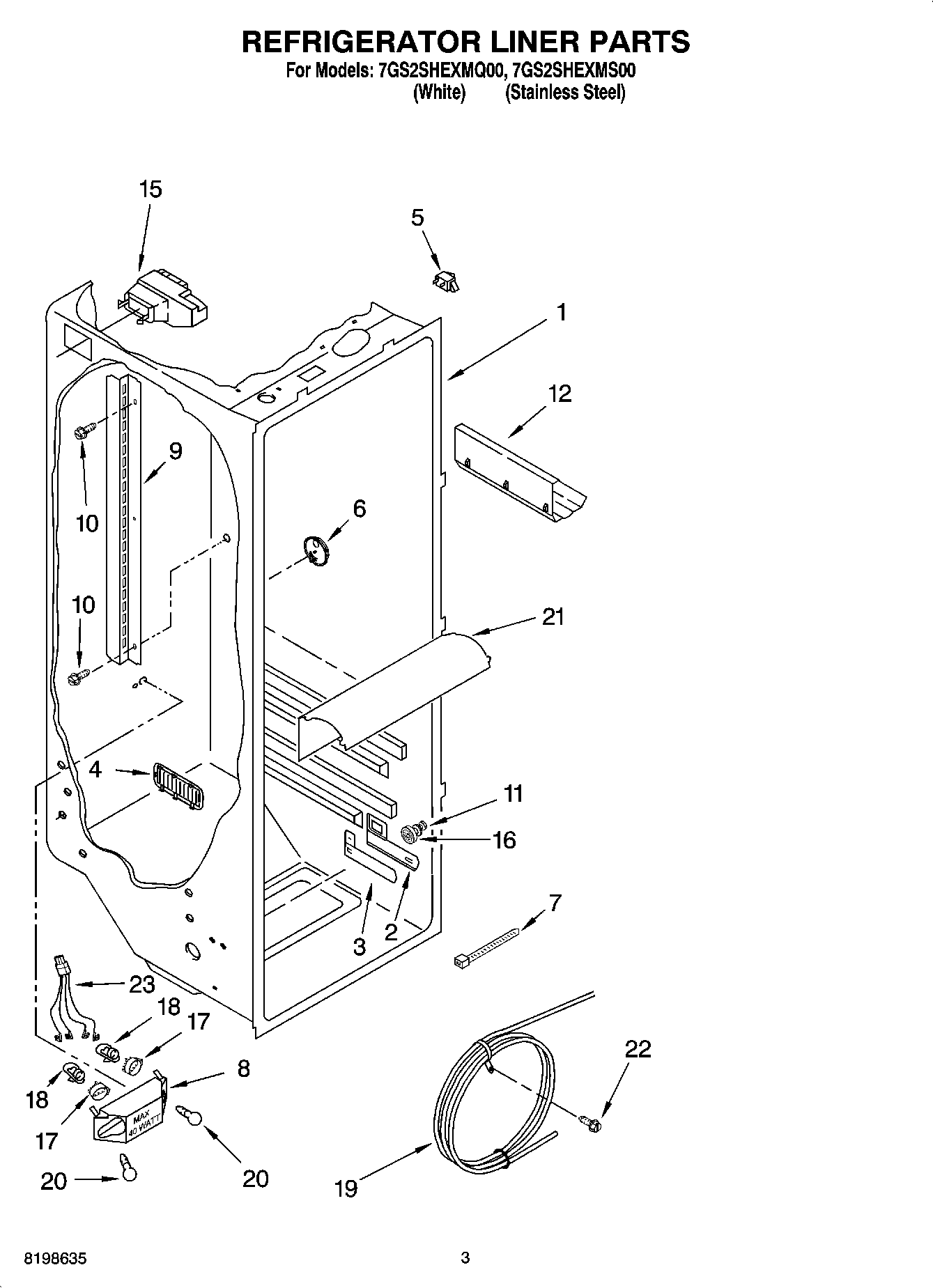

7GS2SHEXMQ00 02 – REFRIGERATOR LINER PARTS

Products

Position	Product
1	Liner (Not A Serviceable Part)
2	2194744 Whirlpool Refrigerator Escutcheon
3	2182757 Whirlpool Refrigerator Slide
4	Louver
5	W11384469 Whirlpool Door Switch
6	Door Control Asm
7	WPW10339879 Whirlpool Wire Tie
8	Bracket, Dual Crisper Light
9	Shelf Ladder
10	WP488729 Whirlpool Refrigerator Door Screw
11	WP3-24004-109 Whirlpool Refrigerator Screw
12	W10777924 Whirlpool Refrigerator Wine Rack
15	WPW10151374 Whirlpool Refrigerator Diffuser
16	W11223328 Whirlpool Refrigerator Shelf Stud
17	WP2175210 Whirlpool Refrigerator Shroud
18	4387478 Whirlpool Refrigerator Light Socket
19	WP2256126 Whirlpool Refrigerator Reservoir
20	RANGE ONLY 40W 120V APPL BULB
21	Light Lens
22	Screw (2)
23	2311637 Whirlpool Refrigerator Wire Harness
