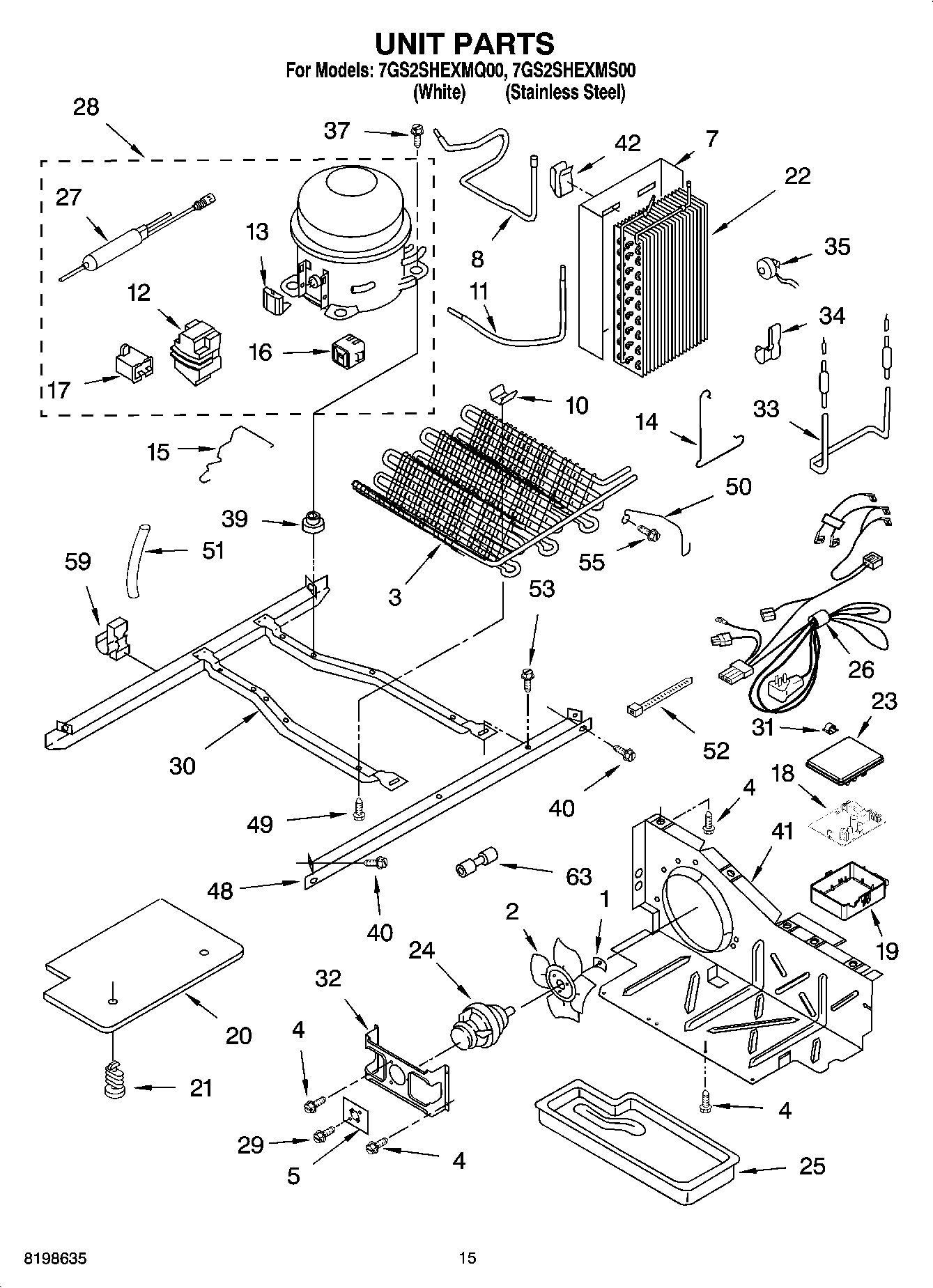

7GS2SHEXMQ00 09 – UNIT PARTS

Products

PositionProduct
1WP486692 Whirlpool Refrigerator Nut
2Blade, Fan
3Condenser Assembly
4WP489464 Whirlpool Refrigerator Screw
5Insert, Bracket
7Heat Shield And Drain Pan
82205764 Whirlpool Refrigerator Tube
10W10683556 Whirlpool Refrigerator Clip
11Tube, Condenser to Heat Loop
12WP2162358 Whirlpool Refrigerator Terminal Cover
13OVERLOAD
14Clamp
15Clip, Retaining
16WPW10189190 Whirlpool Start Device
17WPW10662129 Whirlpool Refrigerator Run Capacitor
18Control, Electronic
19Box, Control
20Unit Cover, Bottom
21489396 Whirlpool Refrigerator Clip
22WP2188822 Whirlpool Refrigerator Evaporator
23Box Cover
24W10124096 Whirlpool Refrigerator Condenser Fan Motor Kit with Blade
25WPW10614158 Whirlpool Refrigerator Evaporator Tray
26Harness, Unit
27W10843121 Whirlpool Refrigerator Tube
28W10309990 Whirlpool Refrigerator Compressor
298281160 Whirlpool Screw
302304903 Whirlpool Refrigerator Frame
31WP1115374 Whirlpool Refrigerator Clip
32WP2181929 Whirlpool Refrigerator Bracket
33WP2323197 Whirlpool Refrigerator Heater
34Clip
35WPW10225581 Whirlpool Refrigerator Defrost Thermostat
39876811 Whirlpool Grommet
39WP4387558 Whirlpool Refrigerator Compressor Grommet
40489340 Whirlpool Refrigerator Screw
41W10896764 Whirlpool Refrigerator Air Baffle
42Clip, Heat Shield
48Unit Mounting Rail
49W11544659 Whirlpool Refrigerator Screw
50Guard, Fan
51SLEEVE
52WPW10339879 Whirlpool Wire Tie
53WP489427 Whirlpool Refrigerator Screw
55WP489478 Whirlpool Refrigerator Screw
59W10169512 Whirlpool Clip
63VALVE, ACCESS (5/8“)
63FOLLOWING PARTS NOT ILLUSTRATE
63WPL ARI141844A
63876764 Whirlpool Refrigerator Primary Valve
63978026 Whirlpool Refrigerator Primary Valve
63978027 Whirlpool Refrigerator Primary Valve
63978030 Whirlpool Refrigerator Valve
63WP978025 Whirlpool Refrigerator Valve
63VALVE, ACCESS (1/2“)
63WP4373559 Whirlpool Fitting
63WPL ARI141845A
