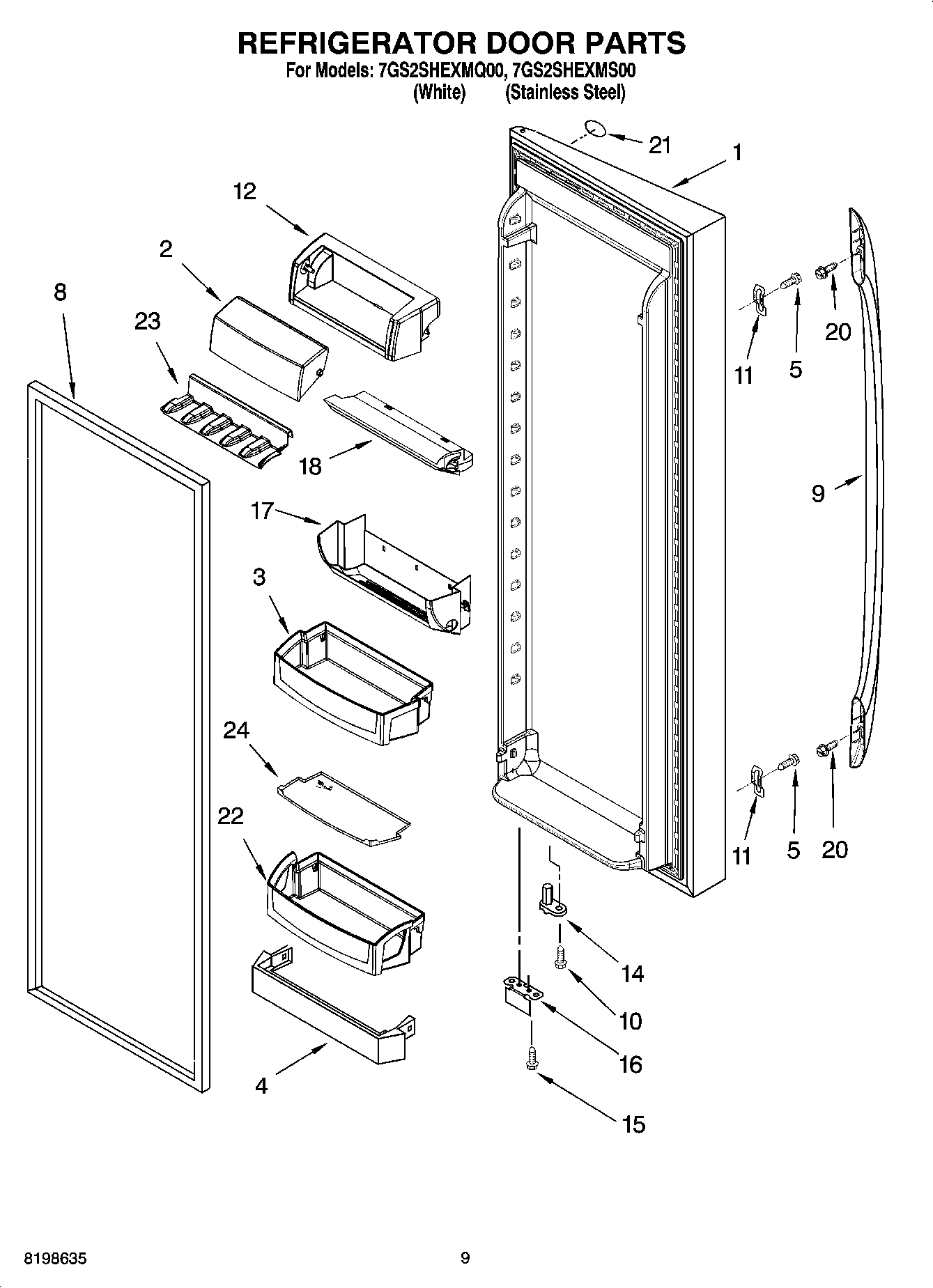

7GS2SHEXMS00 06 – REFRIGERATOR DOOR PARTS

Products

Position	Product
1	Refrigerator Door (Includes Item 8) (White)
1	Refrigerator Door (Includes Item 8) (Stainless Steel)
2	Dairy Door
3	Door Bin (3)
4	WP2318736 Whirlpool Refrigerator Door Trim
5	WP489491 Whirlpool Refrigerator Screw
8	2159073 Whirlpool Refrigerator Door Gasket
8	2159081 Whirlpool Refrigerator Door Gasket
9	Handle, Center (White)
9	Handle, Center (Black)
10	WP3400012 Whirlpool Refrigerator Screw
11	WP2255411 Whirlpool Refrigerator Clip
12	Door Compartment
14	WP2182179 Whirlpool Cam Closer
15	WP489483 Whirlpool Screw
16	Bracket, Door Stop
16	Bracket, Door Stop
17	Frame, Can Rack
18	Air Diffuser Asm
20	SCREW
21	Nameplate
22	Door Bin
23	Floor, Can Rack
24	Mat, Bin
