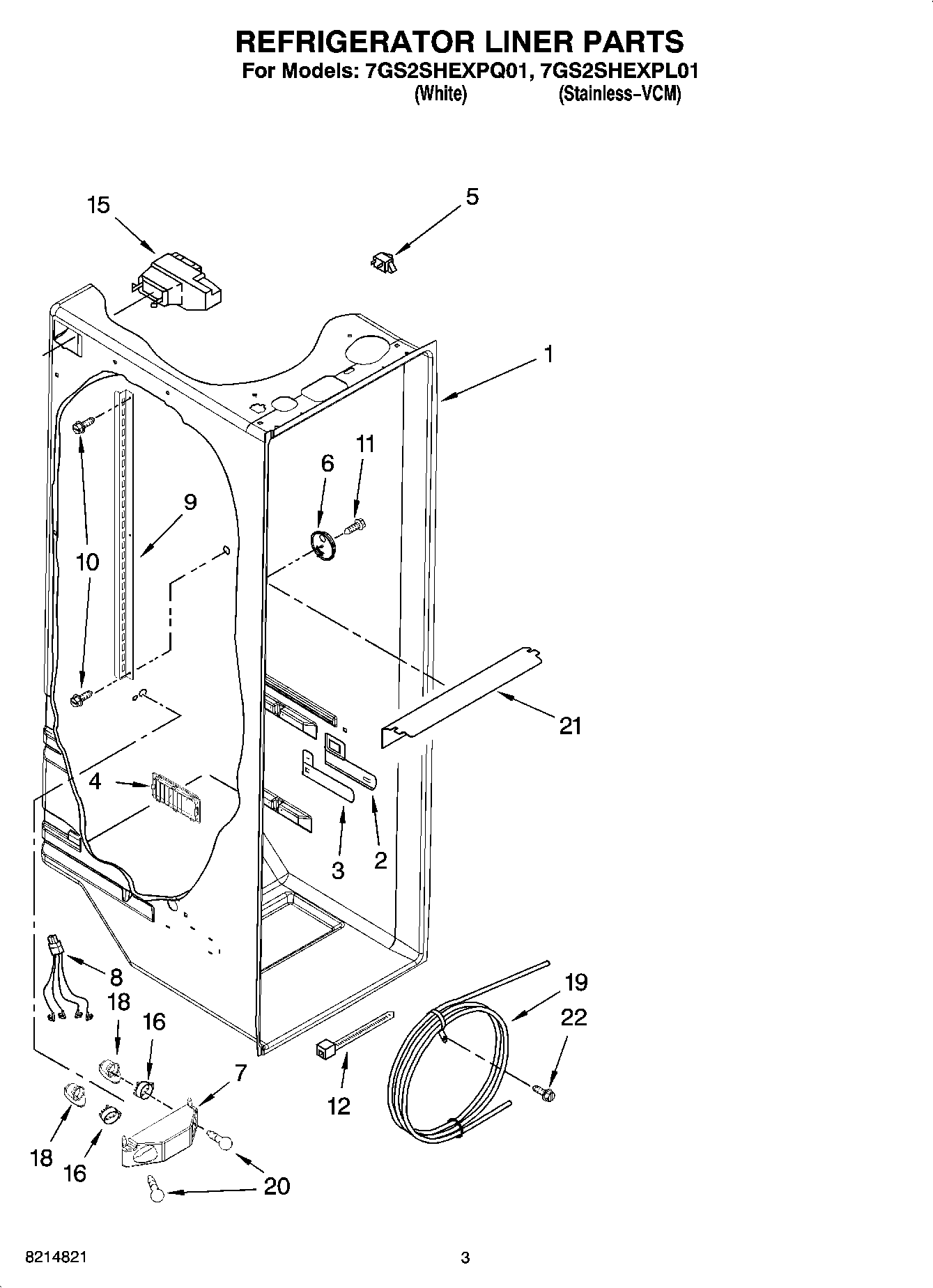

7GS2SHEXPL01 02 – REFRIGERATOR LINER PARTS

Products

Position	Product
1	Liner (Not A Serviceable Part)
2	2194744 Whirlpool Refrigerator Escutcheon
3	2182757 Whirlpool Refrigerator Slide
4	Louver
5	W11384469 Whirlpool Door Switch
6	Door Control Asm
7	Bracket, Dual Crisper Light
8	2311637 Whirlpool Refrigerator Wire Harness
9	Shelf Ladder
10	WP489478 Whirlpool Refrigerator Screw
11	W10759522 Whirlpool Screw
12	WPW10339879 Whirlpool Wire Tie
15	WPW10151374 Whirlpool Refrigerator Diffuser
16	WP2175210 Whirlpool Refrigerator Shroud
18	4387478 Whirlpool Refrigerator Light Socket
19	WP2256126 Whirlpool Refrigerator Reservoir
20	RANGE ONLY 40W 120V APPL BULB
21	Light Lens
22	Screw (2)
