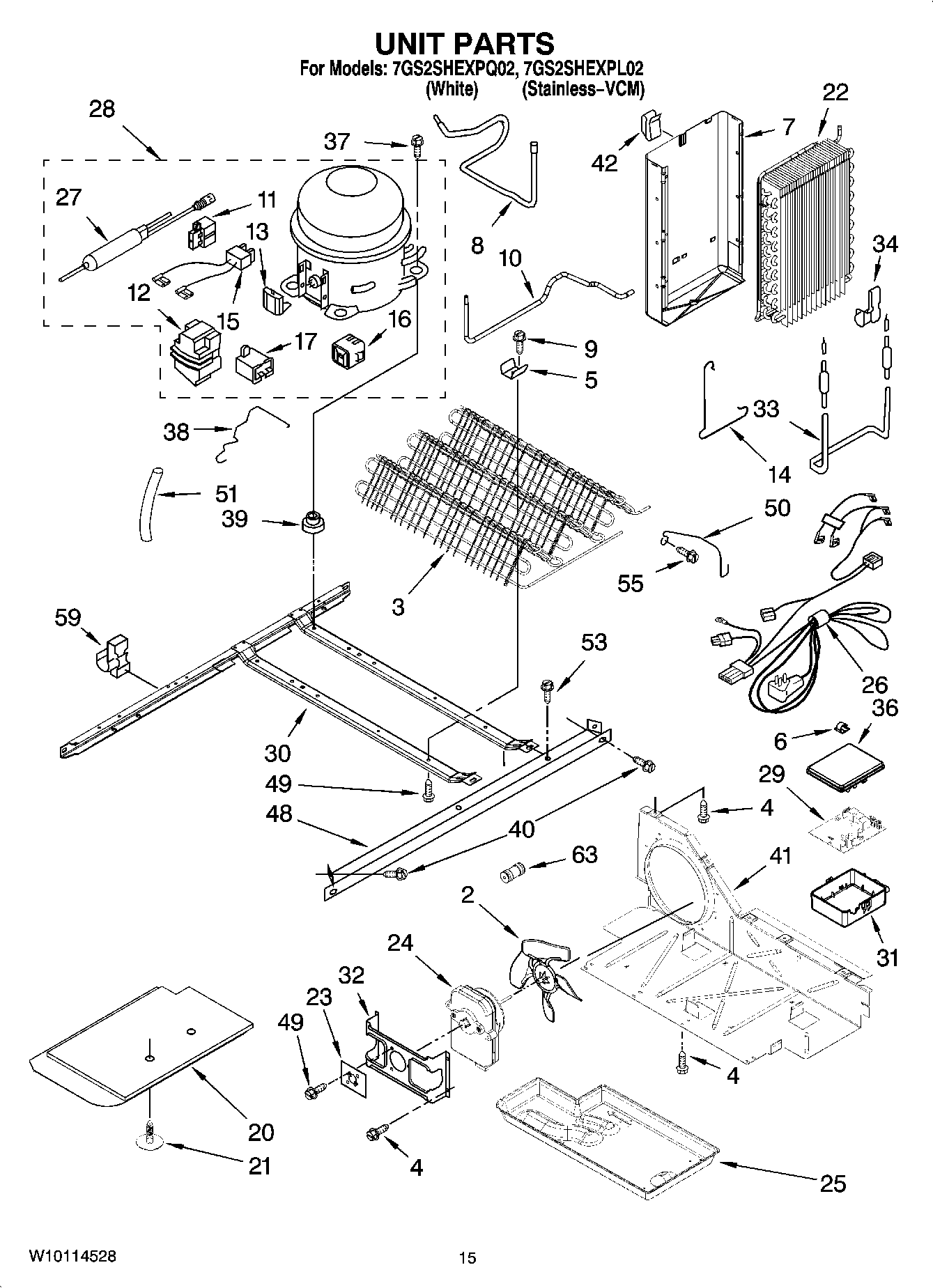

7GS2SHEXPL02 09 – UNIT PARTS

7GS2SHEXPL02 09 – UNIT PARTS

Written by

in

7GS2SHEXPL02 09 – UNIT PARTS

Products

PositionProduct
2W11458267 Whirlpool Refrigerator Fan Blade
32324712 Whirlpool Refrigerator Condenser
4WP489464 Whirlpool Refrigerator Screw
5W10683556 Whirlpool Refrigerator Clip
6WP1115374 Whirlpool Refrigerator Clip
7Heat Shield
82205764 Whirlpool Refrigerator Tube
9W11544659 Whirlpool Refrigerator Screw
102261599 Whirlpool Refrigerator Tube
11W10920279 Whirlpool Refrigerator Start Relay
12WP2162358 Whirlpool Refrigerator Terminal Cover
13WP2187145 Whirlpool Refrigerator Overload
14Clamp
15WP2172890 Whirlpool Refrigerator Wire
16WPW10189190 Whirlpool Start Device
17WPW10662129 Whirlpool Refrigerator Run Capacitor
20W11115203 Whirlpool Control Panel
21489396 Whirlpool Refrigerator Clip
22WP2188822 Whirlpool Refrigerator Evaporator
23Insert, Bracket
24W10124096 Whirlpool Refrigerator Condenser Fan Motor Kit with Blade
25WPW10614158 Whirlpool Refrigerator Evaporator Tray
26Harness, Unit
27W10843121 Whirlpool Refrigerator Tube
28W10309990 Whirlpool Refrigerator Compressor
29Control, Electronic
302304903 Whirlpool Refrigerator Frame
31Box, Control
32WP2181929 Whirlpool Refrigerator Bracket
33WP2323197 Whirlpool Refrigerator Heater
34W11623163 Whirlpool Refrigerator Clip
36Box Cover
38Clip, Retaining
39WP4387558 Whirlpool Refrigerator Compressor Grommet
39876811 Whirlpool Grommet
40489340 Whirlpool Refrigerator Screw
41W10896764 Whirlpool Refrigerator Air Baffle
42Clip, Heat Shield
48Unit Mounting Rail
498281160 Whirlpool Screw
50Guard, Fan
51SLEEVE
53WP489427 Whirlpool Refrigerator Screw
55WP489478 Whirlpool Refrigerator Screw
59W10169512 Whirlpool Clip
63WP4373559 Whirlpool Fitting
63Following
63VALVE, ACCESS (5/8“)
63978026 Whirlpool Refrigerator Primary Valve
63978027 Whirlpool Refrigerator Primary Valve
63978030 Whirlpool Refrigerator Valve
63WP978025 Whirlpool Refrigerator Valve
63VALVE, ACCESS (1/2“)
63876764 Whirlpool Refrigerator Primary Valve
63WPL ARI17211A8
