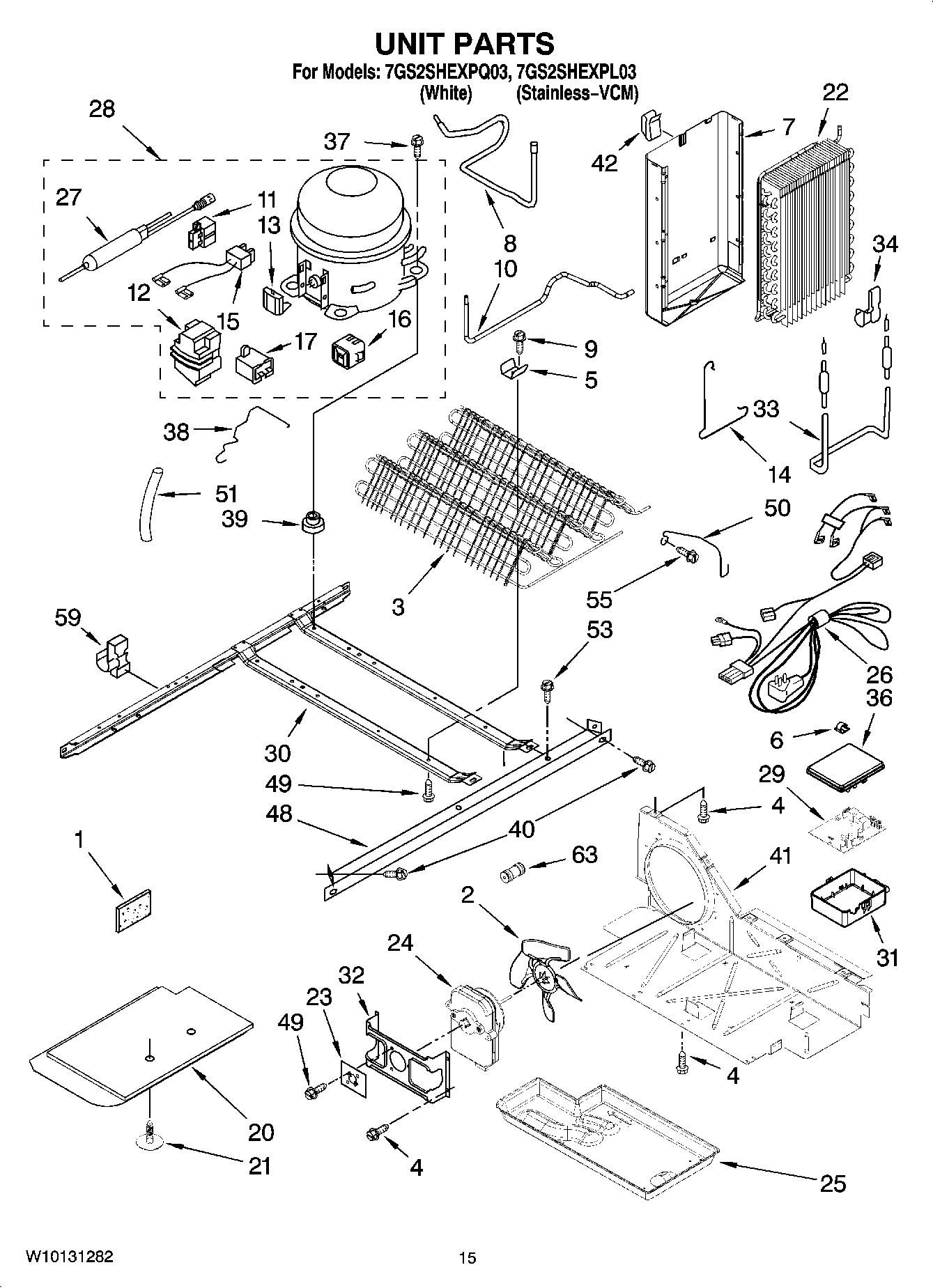

7GS2SHEXPL03 09 – UNIT PARTS
Written by
in
7GS2SHEXPL03 09 – UNIT PARTS
Products
Position
Product
1
W11553819 Whirlpool Refrigerator Insulation
2
W11458267 Whirlpool Refrigerator Fan Blade
3
2324712 Whirlpool Refrigerator Condenser
4
WP489464 Whirlpool Refrigerator Screw
5
W10683556 Whirlpool Refrigerator Clip
6
WP1115374 Whirlpool Refrigerator Clip
7
2217195 Whirlpool Refrigerator Shield
8
2205764 Whirlpool Refrigerator Tube
9
W11544659 Whirlpool Refrigerator Screw
10
2261599 Whirlpool Refrigerator Tube
11
W10920279 Whirlpool Refrigerator Start Relay
12
WP2162358 Whirlpool Refrigerator Terminal Cover
13
WP2187145 Whirlpool Refrigerator Overload
14
Clamp
15
WP2172890 Whirlpool Refrigerator Wire
16
W10896198 Whirlpool Refrigerator Start Device
17
WPW10662129 Whirlpool Refrigerator Run Capacitor
20
W11115203 Whirlpool Control Panel
21
489396 Whirlpool Refrigerator Clip
22
WP2188822 Whirlpool Refrigerator Evaporator
23
Insert, Bracket
24
W10124096 Whirlpool Refrigerator Condenser Fan Motor Kit with Blade
25
WPW10614158 Whirlpool Refrigerator Evaporator Tray
26
Harness, Unit
27
WPW10143759 Whirlpool Dryer Filter
27
W10843121 Whirlpool Refrigerator Tube
28
W10139462 Whirlpool Refrigerator Compressor
29
Control, Electronic
30
2304903 Whirlpool Refrigerator Frame
31
Box, Control
32
WP2181929 Whirlpool Refrigerator Bracket
33
WP2323197 Whirlpool Refrigerator Heater
34
W11623163 Whirlpool Refrigerator Clip
36
Box Cover
38
2223314 Whirlpool Refrigerator Clip
39
WP4387558 Whirlpool Refrigerator Compressor Grommet
39
876811 Whirlpool Grommet
40
489340 Whirlpool Refrigerator Screw
41
W10896764 Whirlpool Refrigerator Air Baffle
42
Clip, Heat Shield
48
Unit Mounting Rail
49
8281160 Whirlpool Screw
50
Guard, Fan
51
SLEEVE
53
WP489427 Whirlpool Refrigerator Screw
55
WP489478 Whirlpool Refrigerator Screw
59
W10169512 Whirlpool Clip
63
WPL ARI17222A9
63
VALVE, ACCESS (5/8“)
63
978026 Whirlpool Refrigerator Primary Valve
63
978027 Whirlpool Refrigerator Primary Valve
63
978030 Whirlpool Refrigerator Valve
63
WP4373559 Whirlpool Fitting
63
WP978025 Whirlpool Refrigerator Valve
63
VALVE, ACCESS (1/2“)
63
876764 Whirlpool Refrigerator Primary Valve
63
WPL ARI17223A3
←
