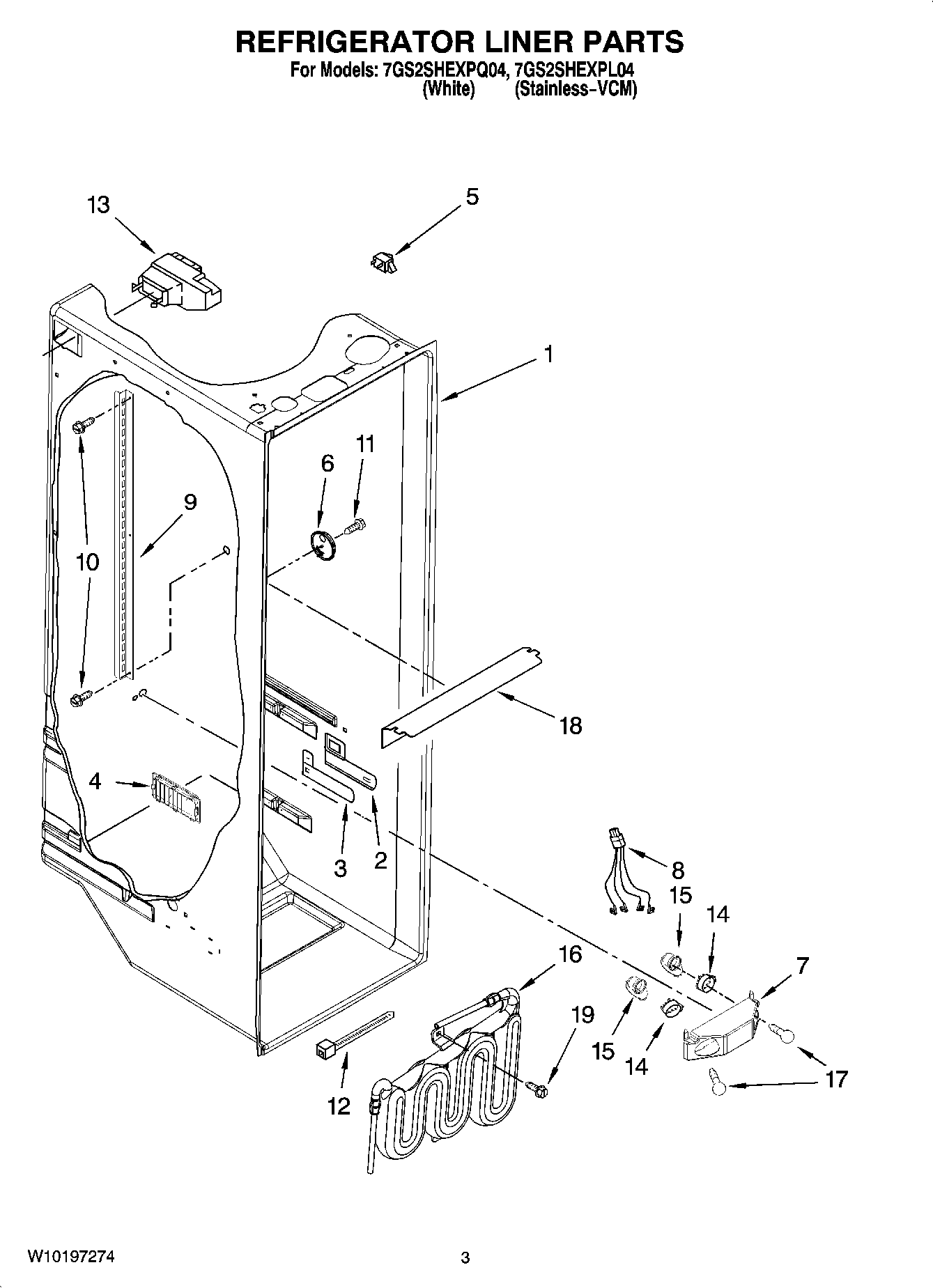

7GS2SHEXPL04 02 – REFRIGERATOR LINER PARTS

Products

Position	Product
1	Liner (Not A Serviceable Part)
2	W10175967 Whirlpool Refrigerator Escutcheon
3	2182757 Whirlpool Refrigerator Slide
4	Louver
5	W11384469 Whirlpool Door Switch
6	Door Control Asm
7	Bracket, Dual Crisper Light
8	2311637 Whirlpool Refrigerator Wire Harness
9	Shelf Ladder
10	WP489478 Whirlpool Refrigerator Screw
11	W10759522 Whirlpool Screw
12	WPW10339879 Whirlpool Wire Tie
13	WPW10151374 Whirlpool Refrigerator Diffuser
14	WP2175210 Whirlpool Refrigerator Shroud
15	4387478 Whirlpool Refrigerator Light Socket
16	RESERVOIR
17	RANGE ONLY 40W 120V APPL BULB
18	Light Lens
19	Screw (2)
