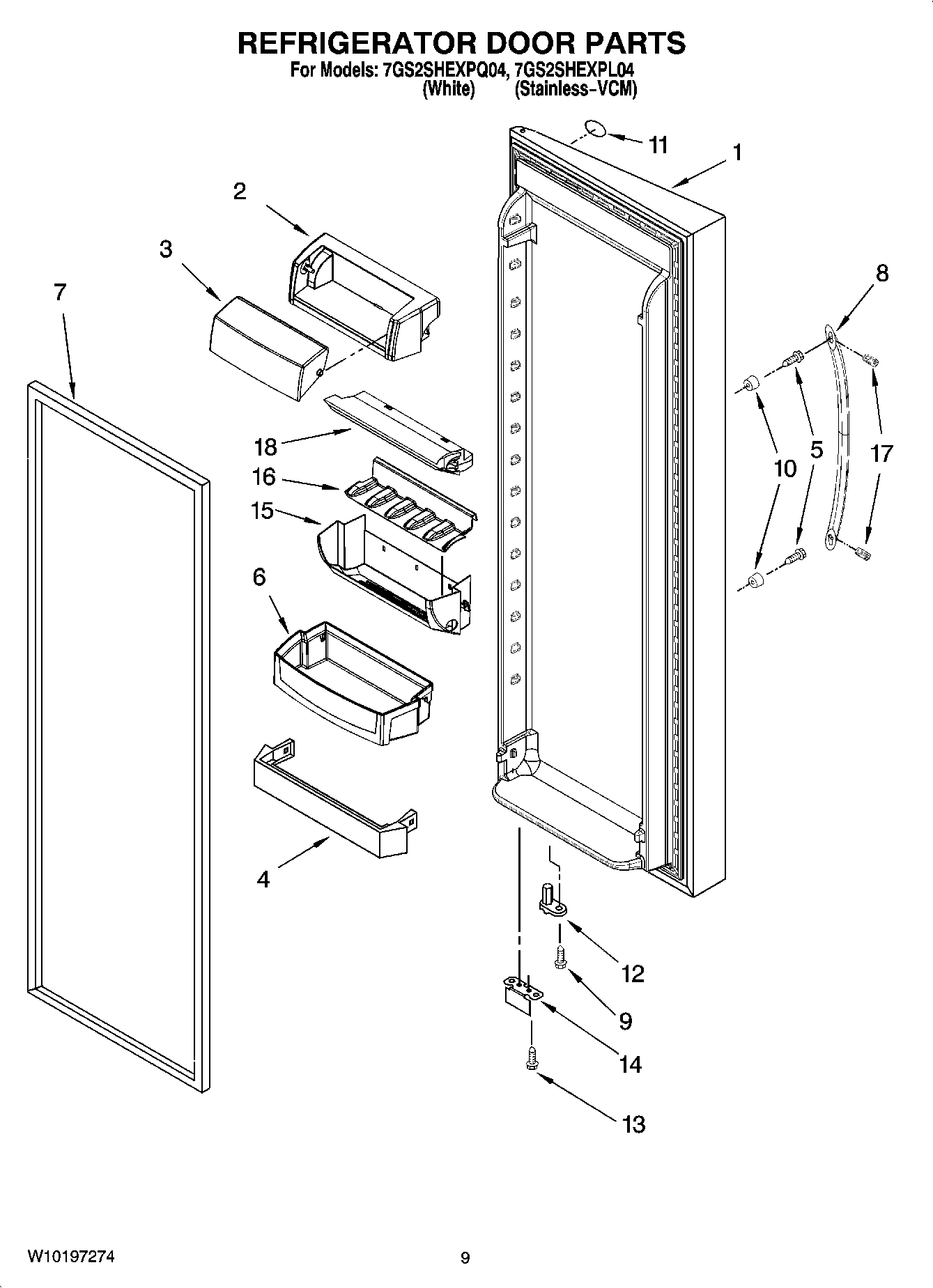

7GS2SHEXPL04 06 – REFRIGERATOR DOOR PARTS

7GS2SHEXPL04 06 – REFRIGERATOR DOOR PARTS

Written by

in

7GS2SHEXPL04 06 – REFRIGERATOR DOOR PARTS

Products

PositionProduct
1Refrigerator Door (Includes Item 8) (White)
1Refrigerator Door (Includes Item 8) (Stainless-VCM)
2Door Compartment
3Dairy Door
4WP2156022 Whirlpool Refrigerator Door Trim
5WP488163 Whirlpool Refrigerator Screw
6Door Bin (3)
72159081 Whirlpool Refrigerator Door Gasket
72159073 Whirlpool Refrigerator Door Gasket
8Handle (Stainless)
8Handle (White)
9WP3400012 Whirlpool Refrigerator Screw
10WPW10170540 Whirlpool Screw
11Nameplate
12WP2182179 Whirlpool Cam Closer
13WP489483 Whirlpool Screw
14Bracket, Door Stop
14Bracket, Door Stop
15Frame, Can Rack
16Floor, Can Rack
17SCREW
18Air Diffuser Asm
