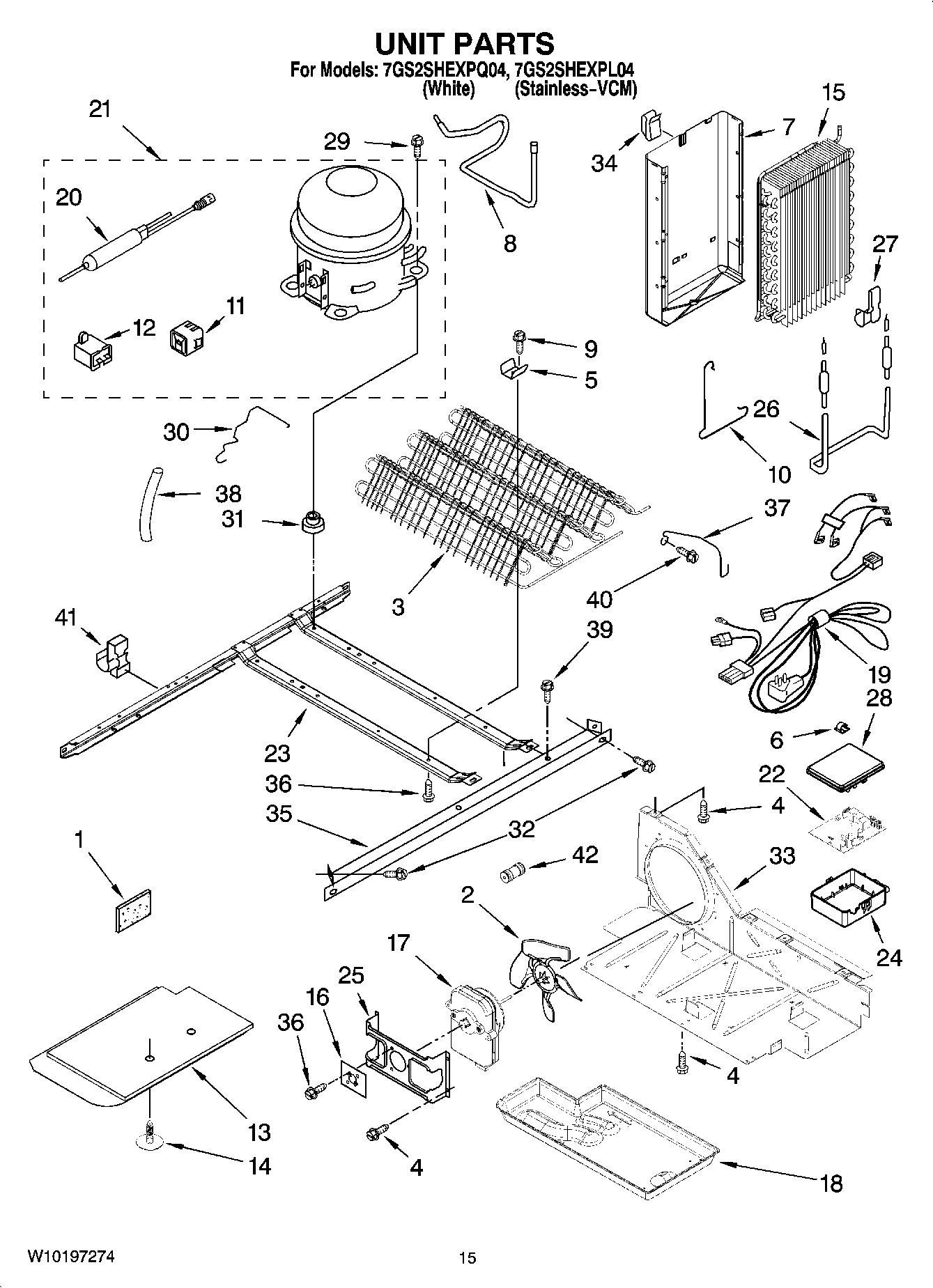

7GS2SHEXPL04 09 – UNIT PARTS

7GS2SHEXPL04 09 – UNIT PARTS

Written by

in

7GS2SHEXPL04 09 – UNIT PARTS

Products

PositionProduct
876764 Whirlpool Refrigerator Primary Valve
REFRIGERANT CHARGE 5.0 oz. (R-134)
VALVE, ACCESS (1/2“)
WP978025 Whirlpool Refrigerator Valve
978030 Whirlpool Refrigerator Valve
978027 Whirlpool Refrigerator Primary Valve
978026 Whirlpool Refrigerator Primary Valve
Following Parts Not Illustrated and Optional Parts Not Included
VALVE, ACCESS (5/8“)
1W11553819 Whirlpool Refrigerator Insulation
2W11458267 Whirlpool Refrigerator Fan Blade
32324712 Whirlpool Refrigerator Condenser
4WP489464 Whirlpool Refrigerator Screw
5W10683556 Whirlpool Refrigerator Clip
6WP1115374 Whirlpool Refrigerator Clip
72217195 Whirlpool Refrigerator Shield
82205764 Whirlpool Refrigerator Tube
9W11544659 Whirlpool Refrigerator Screw
10Clamp
11W10896198 Whirlpool Refrigerator Start Device
12WPW10662129 Whirlpool Refrigerator Run Capacitor
13W11115203 Whirlpool Control Panel
14489396 Whirlpool Refrigerator Clip
15WP2188822 Whirlpool Refrigerator Evaporator
16Insert, Bracket
17W10124096 Whirlpool Refrigerator Condenser Fan Motor Kit with Blade
18WPW10614158 Whirlpool Refrigerator Evaporator Tray
19Harness, Unit
20WPW10143759 Whirlpool Dryer Filter
21W10139462 Whirlpool Refrigerator Compressor
22Control, Electronic
232304903 Whirlpool Refrigerator Frame
24Box, Control
25WP2181929 Whirlpool Refrigerator Bracket
26WP2323197 Whirlpool Refrigerator Heater
27W11623163 Whirlpool Refrigerator Clip
28Cover
302223314 Whirlpool Refrigerator Clip
31WP4387558 Whirlpool Refrigerator Compressor Grommet
31876811 Whirlpool Grommet
32489340 Whirlpool Refrigerator Screw
33W10896764 Whirlpool Refrigerator Air Baffle
34Clip, Heat Shield
35Unit Mounting Rail
368281160 Whirlpool Screw
37Guard, Fan
38SLEEVE
39WP489427 Whirlpool Refrigerator Screw
40WP489478 Whirlpool Refrigerator Screw
41W10169512 Whirlpool Clip
42WPW10334458 Whirlpool Refrigerator Connector
