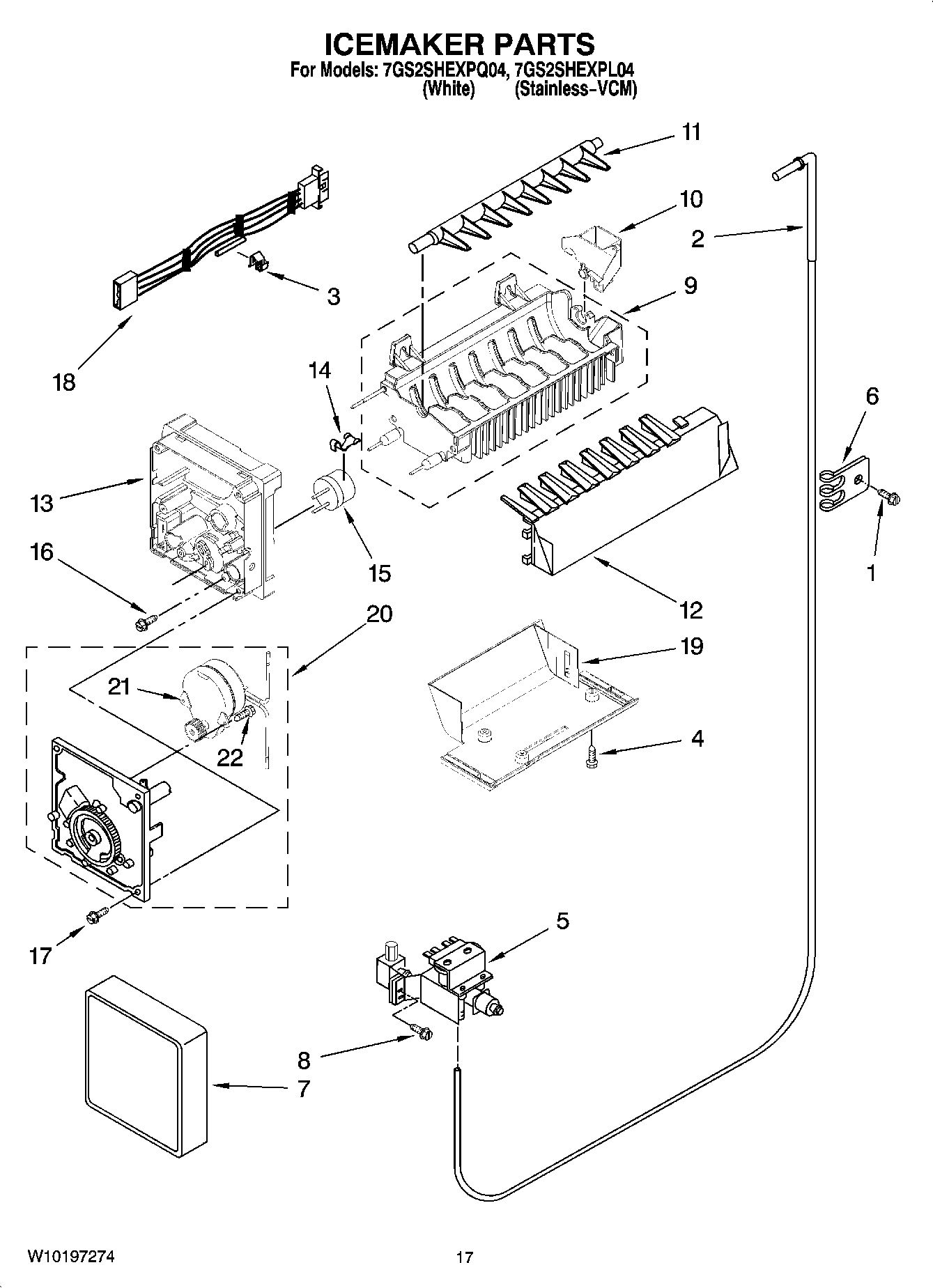

7GS2SHEXPL04 10 – ICEMAKER PARTS

Products

Position	Product
2	WPW10140630 Whirlpool Refrigerator Fitting
3	WP628379 Whirlpool Refrigerator Clip
4	WP489478 Whirlpool Refrigerator Screw
5	W10822681 Whirlpool Refrigerator Water Inlet Valve
6	WP488366 Whirlpool Refrigerator Clamp
7	WPW10289690 Whirlpool Ice Maker Cover
8	WPW10141625 Whirlpool Refrigerator Screw Assembly
9	WPW10122550 Whirlpool Refrigerator Ice Mold
10	WPW10272168 Whirlpool Refrigerator Water Fill Cup
11	626753 Whirlpool Refrigerator Ejector Arm
12	W10297245 Whirlpool Refrigerator Arm Stripper
13	WP2195914 Whirlpool Refrigerator Ice Maker Housing
14	WP2315522 Whirlpool Refrigerator Clip
15	WP627985 Whirlpool Icemaker Cycling Thermostat
16	8533917 Whirlpool Refrigerator Screw
17	WP681249 Whirlpool Screw Assembly
18	WPW10309401 Whirlpool Refrigerator Wire Harness
19	Bracket, Icemaker Mounting
20	8201515 Whirlpool Refrigerator Motor and Gear Module Kit
21	Motor (Not Serviceable, Order 20)
22	489136 Whirlpool Refrigerator Screw
100	WPW10190961 Whirlpool Ice Maker
