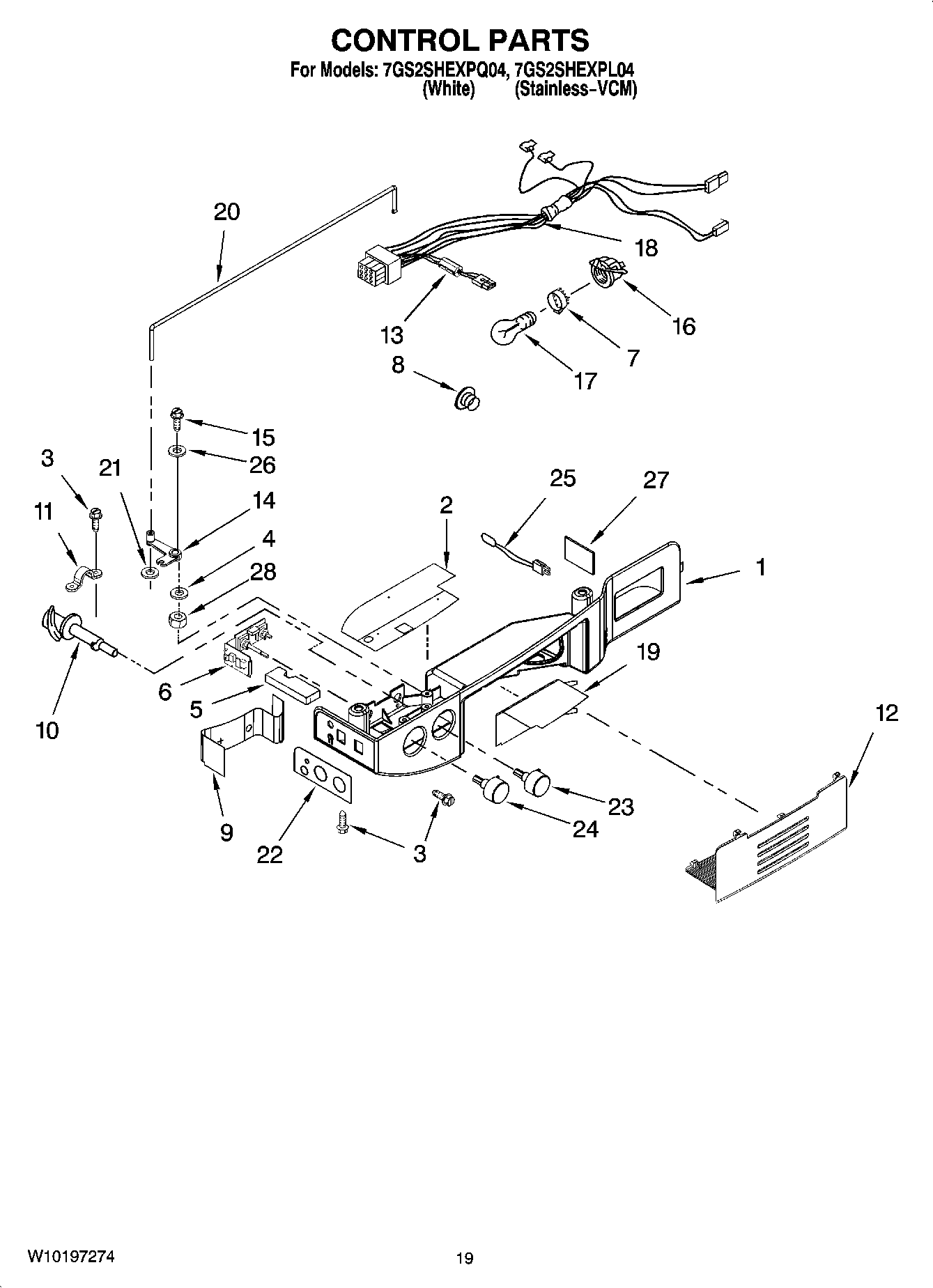

7GS2SHEXPL04 11 – CONTROL PARTS

Products

Position	Product
1	Control Box
2	Shield
3	WP3196557 Whirlpool Screw
4	Washer
5	Foam, Shield
6	Electronic Control
7	WP2175210 Whirlpool Refrigerator Shroud
8	940014 Whirlpool Refrigerator Primary Button Plug
9	Shield, Electrical (Internal)
10	Cam Assembly
11	Bearing Body
12	Lens, Light
13	Ferrite Bead
14	Pivot Arm
15	627068 Whirlpool Refrigerator Screw
16	4387478 Whirlpool Refrigerator Light Socket
17	RANGE ONLY 40W 120V APPL BULB
18	Control Box Harness
19	Shield, Heat
20	Connecting Rod
21	Fastener, Push-On
22	Escutcheon, Control Box
23	Knob, RC
24	Knob, FC
25	WP2188819 Whirlpool Thermistor
26	489203 Whirlpool Refrigerator Washer
27	Air Seal, Thermistor
28	Nut, Hex
