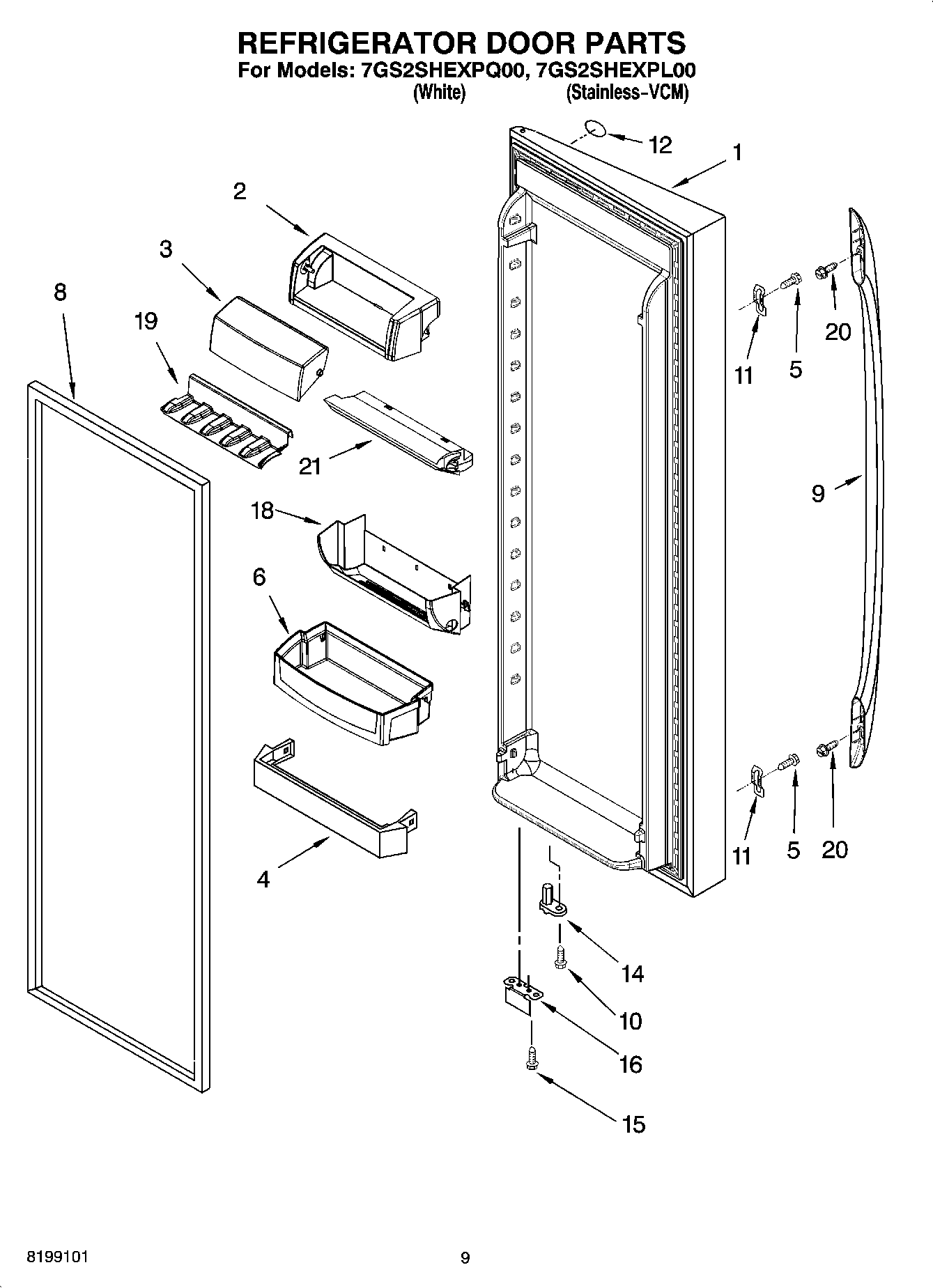

7GS2SHEXPQ00 06 – REFRIGERATOR DOOR PARTS

Products

Position	Product
1	Refrigerator Door (Includes Item 8) (Stainless VCM)
1	Refrigerator Door (Includes Item 8) (White)
2	Door Compartment
3	Dairy Door
4	WP2156022 Whirlpool Refrigerator Door Trim
5	WP489491 Whirlpool Refrigerator Screw
6	Door Bin (3)
8	2159073 Whirlpool Refrigerator Door Gasket
8	2159081 Whirlpool Refrigerator Door Gasket
9	Handle
9	Handle (Includes 20) (White)
10	WP3400012 Whirlpool Refrigerator Screw
11	WP2255411 Whirlpool Refrigerator Clip
12	Nameplate
14	WP2182179 Whirlpool Cam Closer
15	WP489483 Whirlpool Screw
16	Bracket, Door Stop
16	Bracket, Door Stop
18	Frame, Can Rack
19	Floor, Can Rack
20	SCREW
21	Air Diffuser Asm
